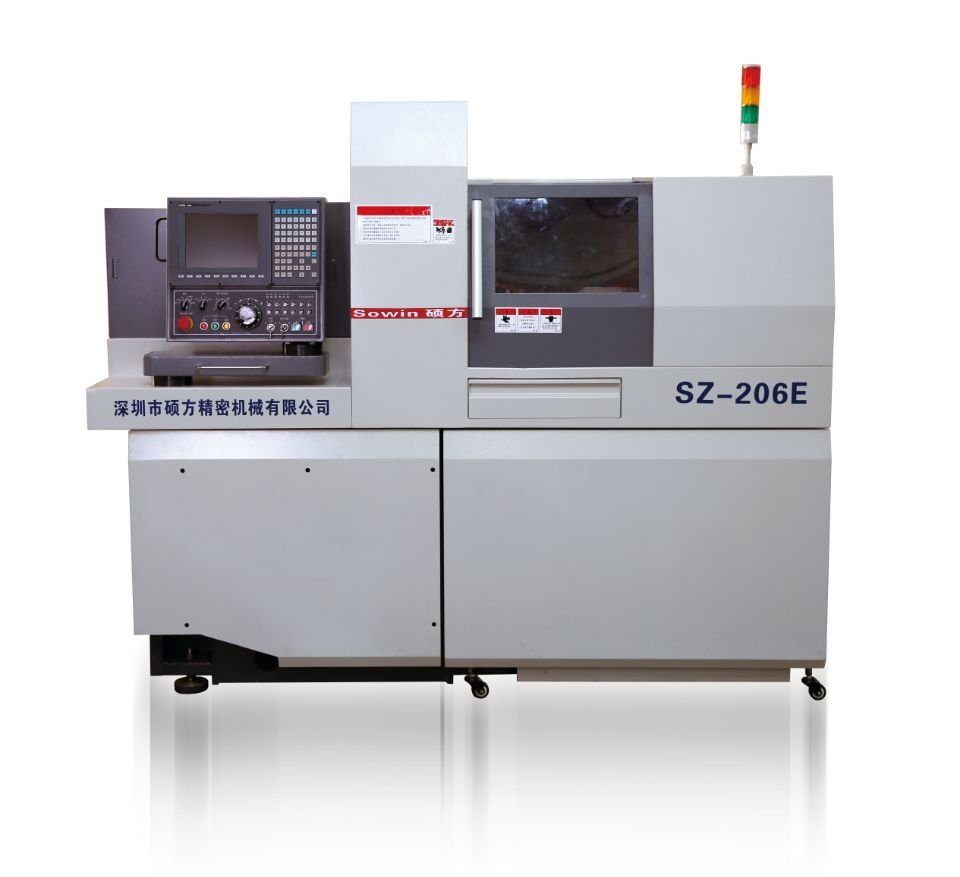

SWISS TYPE SLIDING HEAD AUTOMATIC LATHE
WITH OR WITHOUT GUIDE BUSHING FOR DIFFERENT PROCESSING LENGTH

Technical Parameters
Item SZ-206E SZ-205E SZ-204E
Max Machining Dia. Ф20mm(Ф25mm)
Max Machining Length 240mm
Front Dnilling Dia. Max.Ф10mm
Front Thread Machining(Tapping/Threading Die) Max.M8
Spindle Through Dia. Ф26mm
Spindle Speed Max.10000r/min
Flank-Milling Tools Dnilling Dia. Max.Ф10mm
Flank-Milling Tools Tapping Max.M8
Flank-Milling Tools Speed Max.6000r/min
Sub Spindle Max. Holding Dia. Ф20mm
Sub Spindle Max. Extension Dia. 50mm
Sub Spindle Dnilling Hole Dia. Max.Ф8mm
Sub Spindle Thread Machining(Tapping) Max.M6
Sub Spindle Speed Max.8000r/min
Back Tool Dnilling Dia. Max.Ф10mm －－
Back Tool Tapping Max.M8 －－
Sub Power Head Speed Max.6000r/min －－
Cutting Tools 6×□12
Milling Tools 4~9×ER16
Face Dnilling 4~8×ER16
Back Face Dnilling 8×ER16 4×ER16 －－
Rapid Feed 30m/min(Z1/Z2/Y1/X2)
24m/min(X1)
15m/min(Y2) 30m/min(Z1/Z2/Y1/X2)
24m/min(X1 30m/min(Z1/Z2/Y1)
24m/min(X1)
Spindle Motor Power 2.2/3.7Kw
Sub Spindle Motor Power 1.7/2.2Kw
Power Head Motor Power 0.75Kw(Flank-Milling/Back) 0.75Kw(Flank-Milling)
Feed Motor Power 0.75Kw(Z1/Z2/X1/X2/Y1)
0.4Kw(Y2) 0.75Kw(Z1/Z2/X1/X2/Y1) 0.75Kw(Z1/Z2/X1/Y1)
Coolant Oil Pump 0.4Kw
Temperature Control Oil Pump 0.1Kw
Lubricating Oil Pump 0.015Kw
Central Height 1050mm
Lathe Net Weight 2700kg 2600kg 2300kg

Standard Configuration
Spindle Temperature Control System
Sub Spindle Led Light
Rotary Guide Sleeve 3 Colored Alert Light
Material Cutting Detector Product Recovery Device Box
Optional Configuration
25 Model Clamping Device Long Work Piece Recovery Device
2 Deep Dnills Broken Tap Detector
Product Automatic Delivery Device Automatic Chip Removal Device
High Pressure Coolant Device Special VDI Live Tool Apron
Oil Frog Collector Intermal Bracing Sub Spindle Clamping Device
