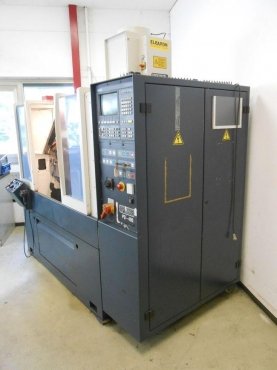

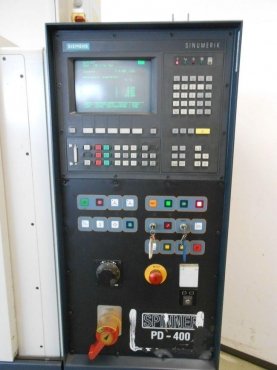

CNC lathe Spinner PD400 PD CNC with Siemens control 810T Swing over cross slide 150 mm turning diameter over bed 300 mm rod diameter 32 mm chuck diameter 125 mm slide: Longitudinal travel (X-axis) 400 mm Cross travel (Z axis) 400 mm gun carriage: Number 1 Number Turret 1 positions 8 Tool: VDI 20 spindle taper: collet chuck F-type 38 / W 25 chuck capacity 32/25 mm Spindle speeds: stepless up to 8000 rev / min Voltage 50 Hz 3x 380 Volt total power requirement 20 kVA weight of the machine 2300 kg Overall dimensions machine: Length 2300 mm Width 1200 mm Height 1700 mm
