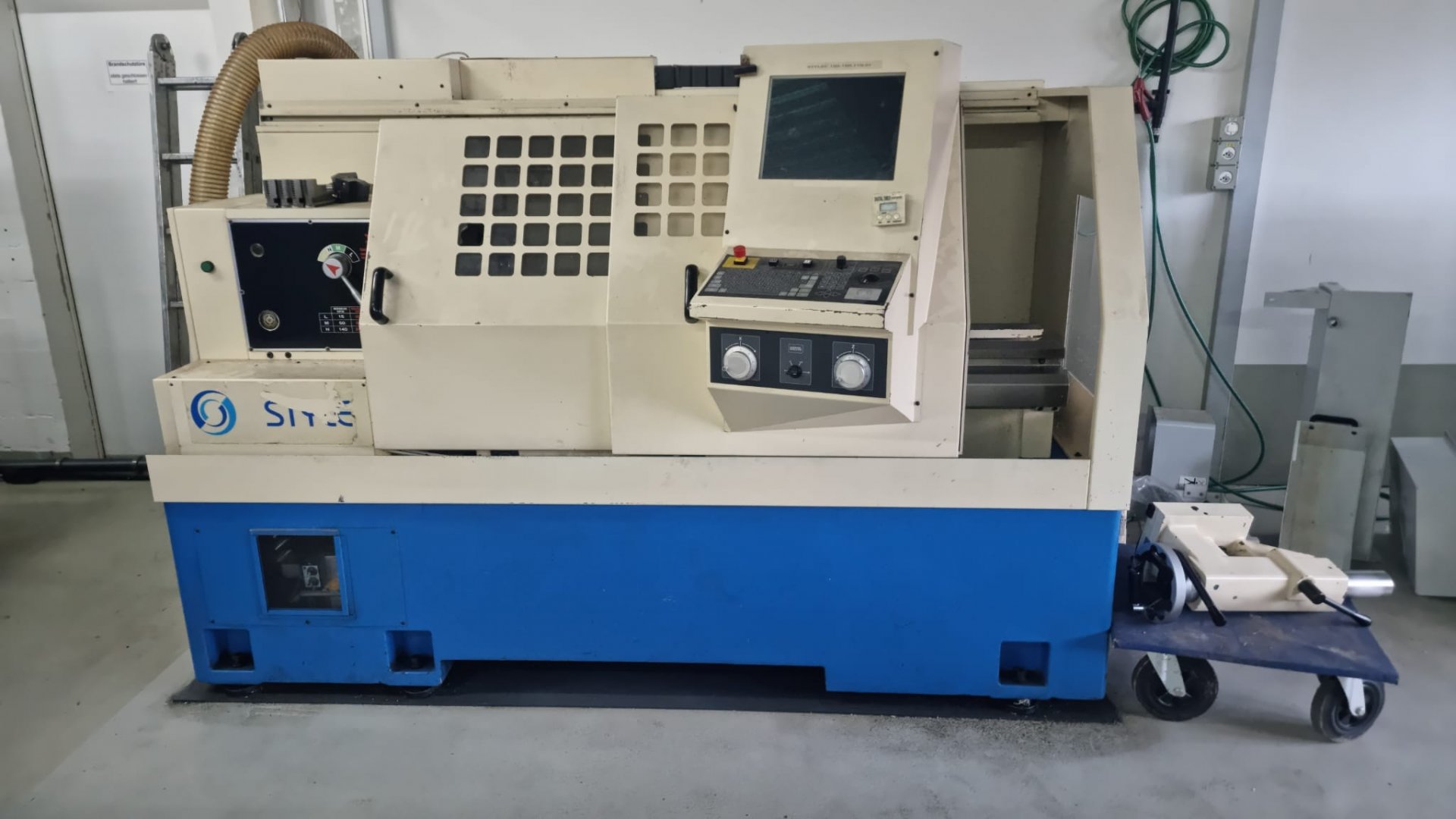

STYLE, 410, CNC LATHE, LATHES

Condition:Used
Category:LATHES
Type:CNC LATHE
Manufacturer:STYLE
Model:410
YOM:1999
Location:Netherlands, BABBERICH
Price:On request
Stock No:7168
Control:CNC
ID:AS29341

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

Duplomatic revolver 8 positions
Tool package VDI-40

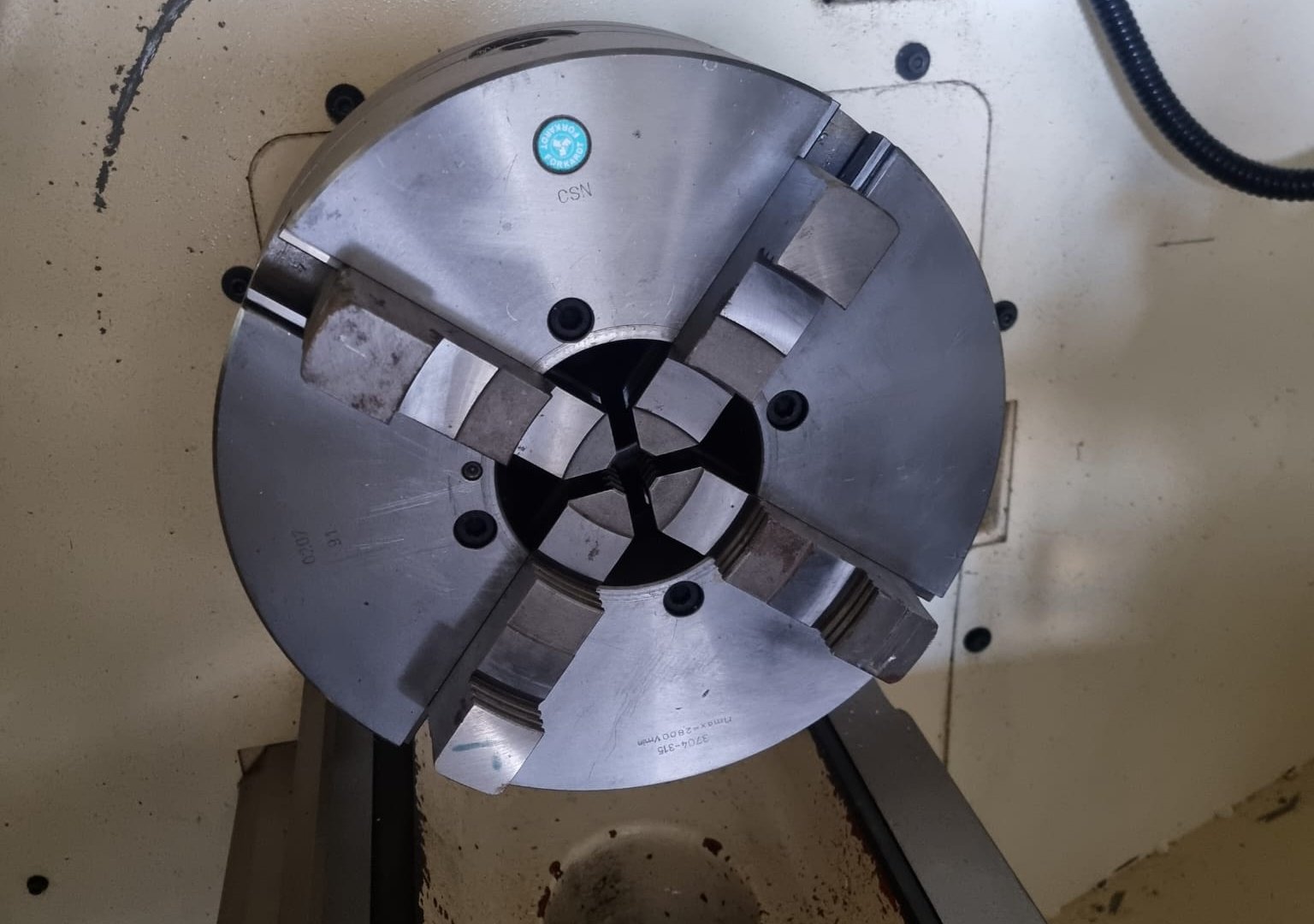

4 chuck 300 mm

Swing over bed Ø: 410mm
Swing over cross slide Ø:200mm
DBC Turning Length: 1250mm
Spindle bore: 80mm
Spindle power: 7,5kW
Tailstock spindle Ø: 80Ø
Stroke pinole: 120mm
Spindle taper: 4Mk
Workpiece weight: 1000
Speeds / ranges: 2000Rpm
Feed rate X-Axis: 10000mm/min.
Feed rate Z-Axis: 10000mm/min.
Length: 3400mm
Width: 2000mm
Height: 2000mm
Weight: 2500kg

Specifications:

Duplomatic revolver 8 positions
Tool package VDI-40
4 chuck 300 mm

Swing over bed Ø: 410mm
Swing over cross slide Ø:200mm
DBC Turning Length: 1250mm
Spindle bore: 80mm
Spindle power: 7,5kW
Tailstock spindle Ø: 80Ø
Stroke pinole: 120mm
Spindle taper: 4Mk
Workpiece weight: 1000
Speeds / ranges: 2000Rpm
Feed rate X-Axis: 10000mm/min.
Feed rate Z-Axis: 10000mm/min.
Length: 3400mm
Width: 2000mm
Height: 2000mm
Weight: 2500kg

Dealer name:

Mach4Metal Netherlands, Babberich
