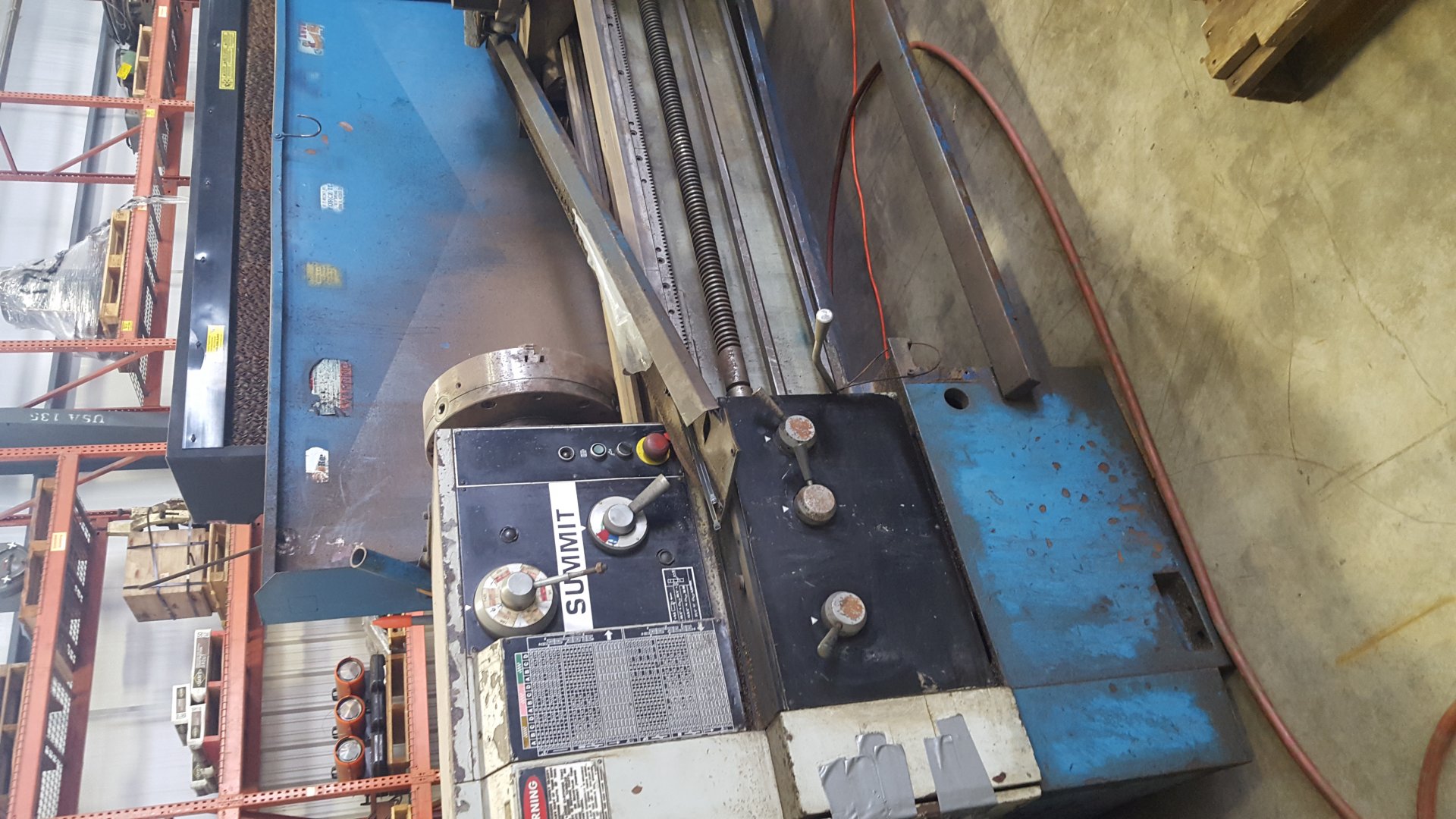

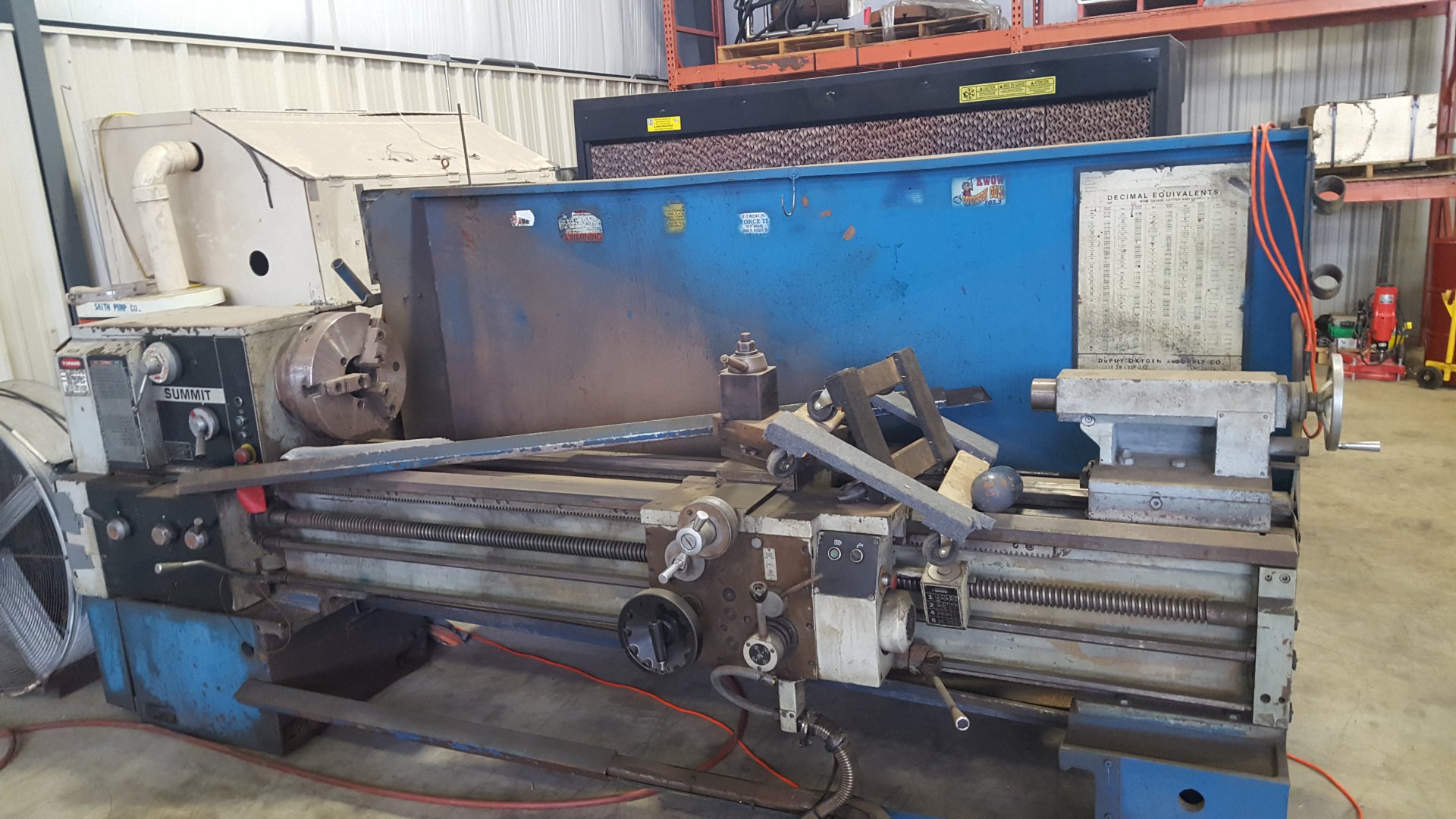

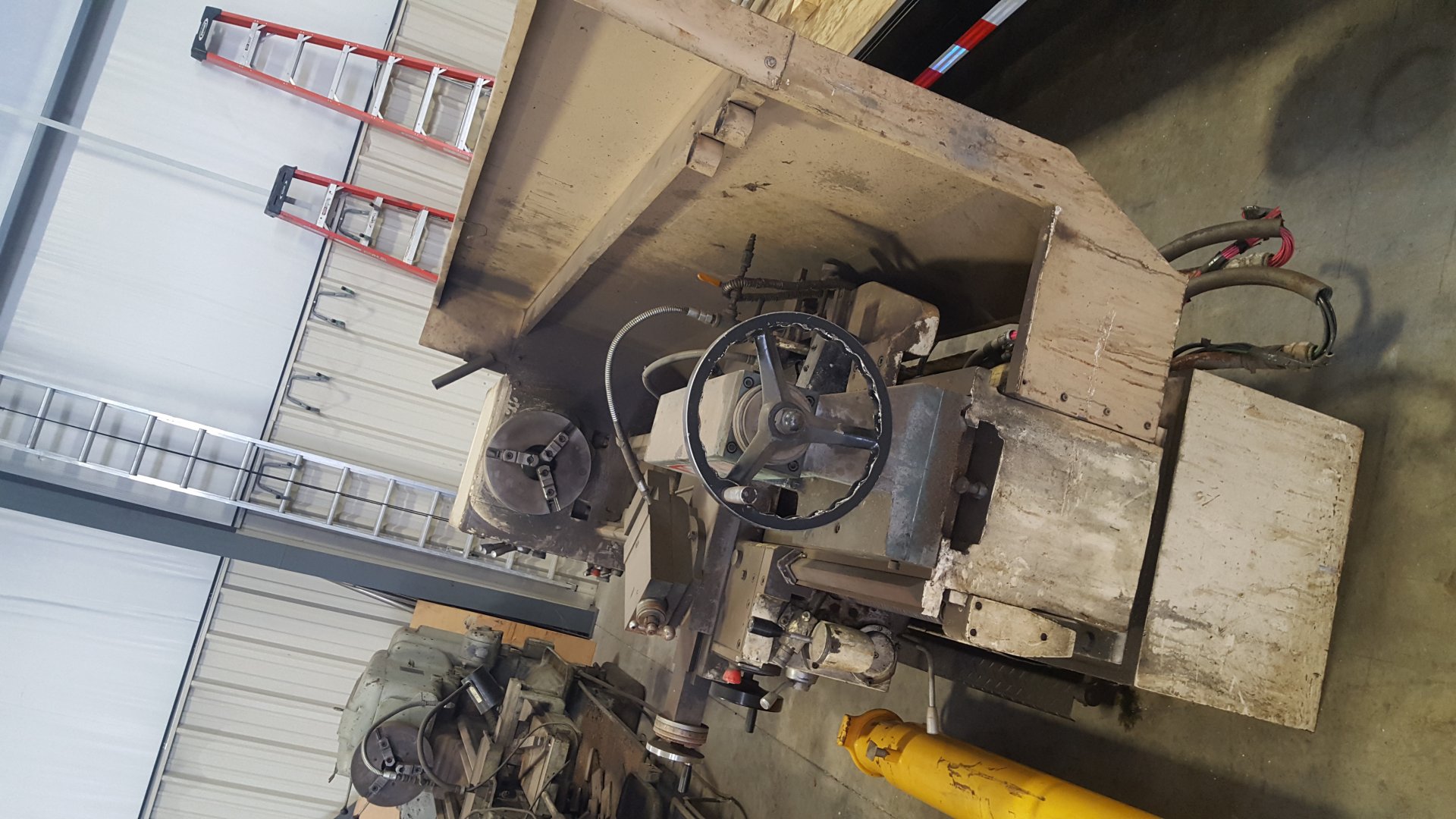

20”-B Summit Lathe, 142” x 41” x 60”

Built-in safety clutch
Cross-ribbed headstock
Hardened and ground alloy steel gears, shafts, and splines
Oversized precision chrome alloy spindle with large 3” & 4” spindle bores
All cast iron construction
Hardened & precision ground bedways
Quick change gearbox cuts American (inch), metric, module and diametrical pitch threads
Rapid traverse on carriage (4 way)
Swing over bed: 20”
Swing over cross slide: 13.25”
Swing over gap: 30”
Hole thru spindle: 4”
Spindle Speed: 32-1500RM
Threads per inch – number/range: (45) 2-72
Metric threads – number/range: D1-8
Bed Width: 13”
10HP Motor
Shipping Weight 5,500lbs

142” x 41” x 60”

5,500
