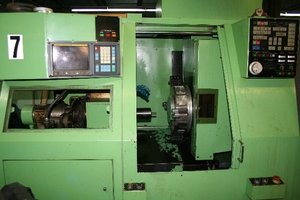

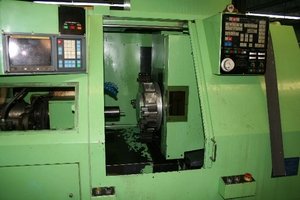

1991 Takahashi model TNC-LM2 Microstar 4 Axis CNC Precision Turning Center
Specifications:
Used 1991 "Takahashi" model TNC-LM2 Microstar 4-Axis
CNC Precision Turning Center

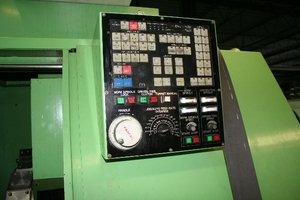

With Fanuc model OM-C Control
________________________________________
FEATURES
•Travels: (X) 7.09”, (Y) 7.87”, (Z) 12.60”, (C) 360°
•Spindle Nose: A2-5
•Spindle Speed: 40 - 4000 RPM
•Spindle Motor: 7 1/2 HP

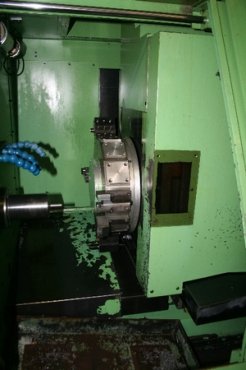

•Turret - 12 station
•Live Tool Spindle Speed: 80 - 8000 RPM
•Live Tool Motor: 3 HP
•Rapids: (X, Y, Z) 394 IPM
•Hardened and Ground Box Type Slideways on Z-Axis
•Linear Motion-Guideways for X and Y Axis
•4-Axis Control X & Z,
(Y=Turret up-down) and (C-Axis=Spindle)
•Compact Design - Full Splash Covers
•Fast Turret Indexing Time 1.4 sec. (Bi-directional)
•Tool Size 3/4" square
•Spindle Thru-hole Diameter 48mm (1.88" diameter)
•Bar Capacity 36mm (1.41" diameter)
•Hydraulic Unit and Coolant Equipment
•80 Meter (264 feet) Part Program Storage and Editing
•Rigid Tapping (Synchronized)
•RS-232 Interface
•Chip Conveyor
•Machine Weight: 6,160 lbs.
Features Included on Machine:
•4-Axis Control X, Y, Z, C
•Chip Conveyor
•O.D. Cutting Live Tools (4 pcs.)
•Face Cutting Live Tools (4 pcs.)
•Kitagawa 6” Chuck
•16C Collet (1 5/8” dia. max.)
•Boring Tool Holder (1” diameter)
______________________________
TERMS:
F.O.B.: Long Island, NY
DELIVERY: Stock, subject to prior sale
PAYMENT: In full prior to delivery
Specifications are subject to verification, Machine Sold “As Is, Where Is”
