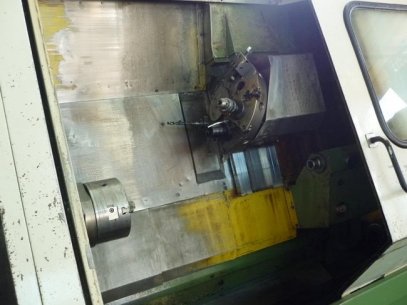

Workspace - main spindle - circulation about the longitudinal slide: 485 mm - circulation over cross slide guide: 375 mm - feed: 160/200 mm - spindle head: A 6 DIN 55021 - Rod: 60 mm - Slide along: 835 mm - flat Slide: 220 mm - spindle in the bearings 110 mm DC direct drive - power: 27 kW - speed range: 20 - 5000 r / min infinitely programmable DC drive with gear - Power: 27 kW - gear levels: 2 - Speed range: 20 - 5000 r / min continuous adjustment tool holder - Tool storage capacity: 16 - tool holder External tools: direct recording 25 x 25 - inner tools: according to VDI 3425, 40 feed drive shaft. Web speed - Fast speed: 10000 mm / min per axis - feed: up to 4000 mm / min feed force - X-axis: 6000 N - Z-axis: 12000 N tailstock - quill: 85 mm - Quill stroke: 100mm - quill: to 10000 - Taper: Taper No. 30 DIN 2079 - Weight: 5 to ensure an error is not taken from the data set, we reserve
