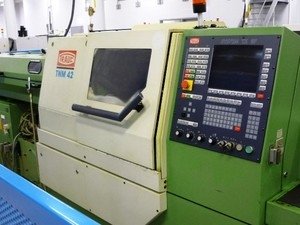

TRAUB TNM-42, 1 1/2", MITSUBISHI TX8F6, 1995, Chip Conveyor, Magazine Barfeed

General Specifications As Per Brochure:

Main Spindle

Collets (draw type - Microcentric): 42BZ1.
Spindle capacity (max. bar diam.): 1.650".
Feed finger collet master (Hardinge pads): B16.
Capacity: 1.50".
Feed finger stroke (up to): 3.74".

Main Drive

Speed range (stepless): 40 -4,000 rpm.
A.C. motor (100/63/25% duty cycle): 7.4/9.25/14.75 Hp.

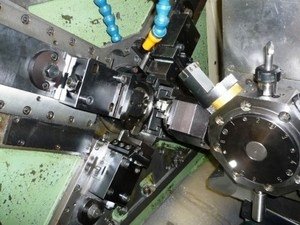

Forming Slides - V-Axis

Number of slides: 4.
Slide stroke (working/total): 0.945"/1.693".
Feed rate (max.): 118 ipm.
Rapid traverse: 393 ipm.

Turret Slides

Longitudinal travel (Z-axis): 9.840
Cross travel (X-axis): 2.360".
Feed rate (X & Z, max.): 275 ipm.
Rapid traverse (X & Z): 590 ipm.
Distance between spindle and turret: 3.150" - 12.795".
Number of tool registers: 8.
Tool shank diam: 1.00".
Index time (1 / 4 stations): 0.45 / 1.15 sec.

Pick-up Spindle
Chucking diam. (max.): 1.650".
Chucking length (max.): 1.375".
Part length (max.): 0.200" - 3.150".

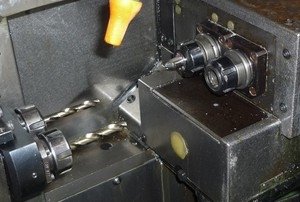

Back Drilling & Tapping Unit

Longitudinal stroke: 4.725"
Rapid traverse: 590 ipm.
Motor: 1.77 Hp.
Drilling spindle chucking diam: 0.040" - 0.625".
Drilling spindle speed range: 560 - 3,500 rpm.
Theading/tapping spindle chucking diam: 0.040" - 0.625".
Theading/tapping spindle speed range: 140 - 1,000 rpm.

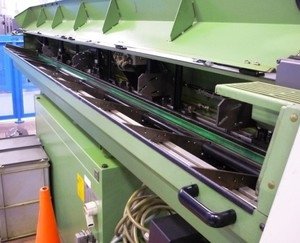

Magazine Barfeed:

Bar length: 8' -13'9".
Bar diameter: 0.470" - 1.650".
Adjustable feed-in length: 59".
Total machine power consumption: 20 KVA.
Machine dimensions (w/chip conveyor): 124"L x 44"D x 71"H.
Bar feed dimensions: 171"L x 24"W x 55"H.
Weights (Machine / Bar Feed, approx.): 7,500 / 1,300 lb.

Equipped With (Must Be Verified By Buyer):
12' Integrated magazine type barfeed with 2 guide channels

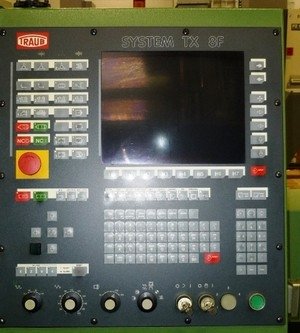

Traub / Mitsubishi System TX 8F6 32-Bit CNC control.
Chip Conveyor
Parts Catcher & Conveyor
4 Forming slides (can act simultaneously or independently).

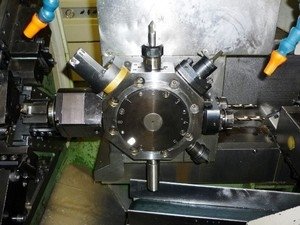

8-Station bi-directional turret.
Pick-up spindle and back-working attachment.
Through feed coolant to turret stations 2, 4, & 6.
Miscellaneous Traub tooling & spindle collets.
Available manuals.
