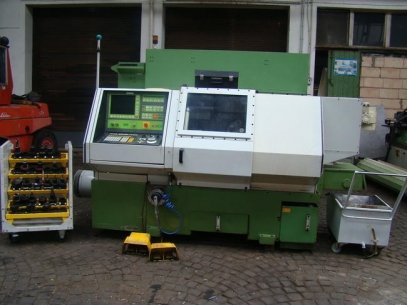

Offered here is a CNC lathe manufacturer Traub Type TNS42 with C-axis

On request the machine can be inspected under power.


The machine is available as this:

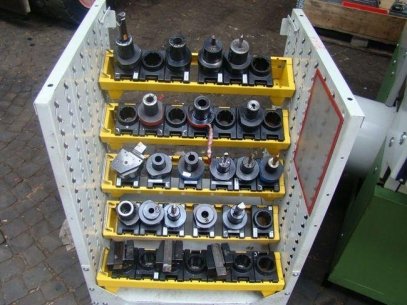

A tool cart with 32 tool stations,

A chip wagon,

21 shots, almost all equipped with VDI 40 tool

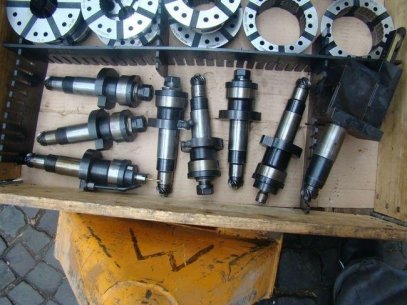

13 driven tools which:

5 Radial drilling and milling head

7 Axial Drilling And Milling Head

1 Axial saw tool


Hornbeam Spanntop 100 clamping system with 26 grips and changing device for clamping heads.


Graphic simulation [GPS]


ATC tool measurement

Optics for measuring tools


CNC Lathe with C axis

Make Traub

Type TNS42

Built in 1990


Specifications

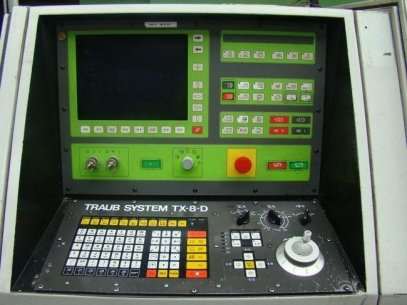

Control: TX8-D


workspace

X-axis: 168mm

Z axis: 490mm

Swing over bed rail cover: 450mm

Swing over cross guide cover: 180mm


spindle

Outside spindle diameter: 85mm

Spindle bore: 42mm

Hornbeam Spanntop 100


Haupantrieb AC

Drive power 100% duty cycle (60%): 19kW (22kW)

Infinitely programmable spindle speed: 28-5600 rpm  ¹


Advancing AC drive

Thrust (X) 100%: 4000 N

Feed force (Z) 100%: 8000 N

Rapid traverse (X): 10m/min

Rapid traverse (Z): 15m/min

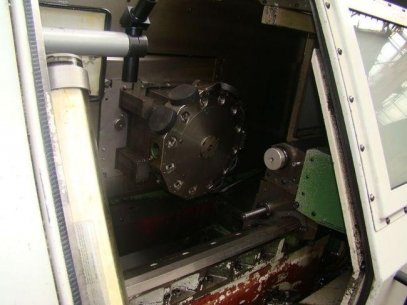

Tool changer with tool turret disk drive

Tool places: 12

Number of driven tool stations: 6

Tool holder shank (DIN 69880): 40mm

Turret indexing time per station: 0.6 sec


tailstock

Quill diameter: 60mm

Quill stroke: 48mm

PinolenaufnahmeVorschub: MK5


Machine dimensions with chip conveyor

Length: 4000mm

Width: 2000mm

Height: 2100mm


Weight with chip conveyor: 4000kg


Operating voltage: 400V / 50Hz

-
