3 J spindle taper for collets, manuals, 9.8" max turning diameter, 19.69 max turn length, A2-6 spindle nose, 1.5" spindle bore, 0-4000 RPM variable, 4.5" X axis travel, 18" Z axis travel, 8 second turret index time, approx. machine weight- 8000 lbs
Specifications:
Proposal for Machine #8986
We are pleased to quote for you the following. Please note that these are approximate specifications only. We advise that you personally inspect this machine before purchasing it to verify the following information:

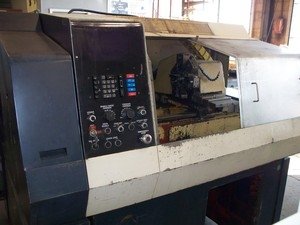

1-Used Tree CNC Lathe
Model Number:
Serial Number:
Mfg
Specifications:
Swing over bed 14”
Maximum turning diameter 9.8”
Max turn length 19.69
Spindle nose A2-6
Spindle bore 1 ½”
Spindle speed 0-4000 RPM variable
Motor 5hp
X axis travel 4.5”
Z Axis travel 18”
Turret index time .8 Sec
Overall dimensions 108” x 74” x 75”
Weight approx. 8,000 lbs
Machine Equipped With:
3 J spindle taper for collets, manuals
