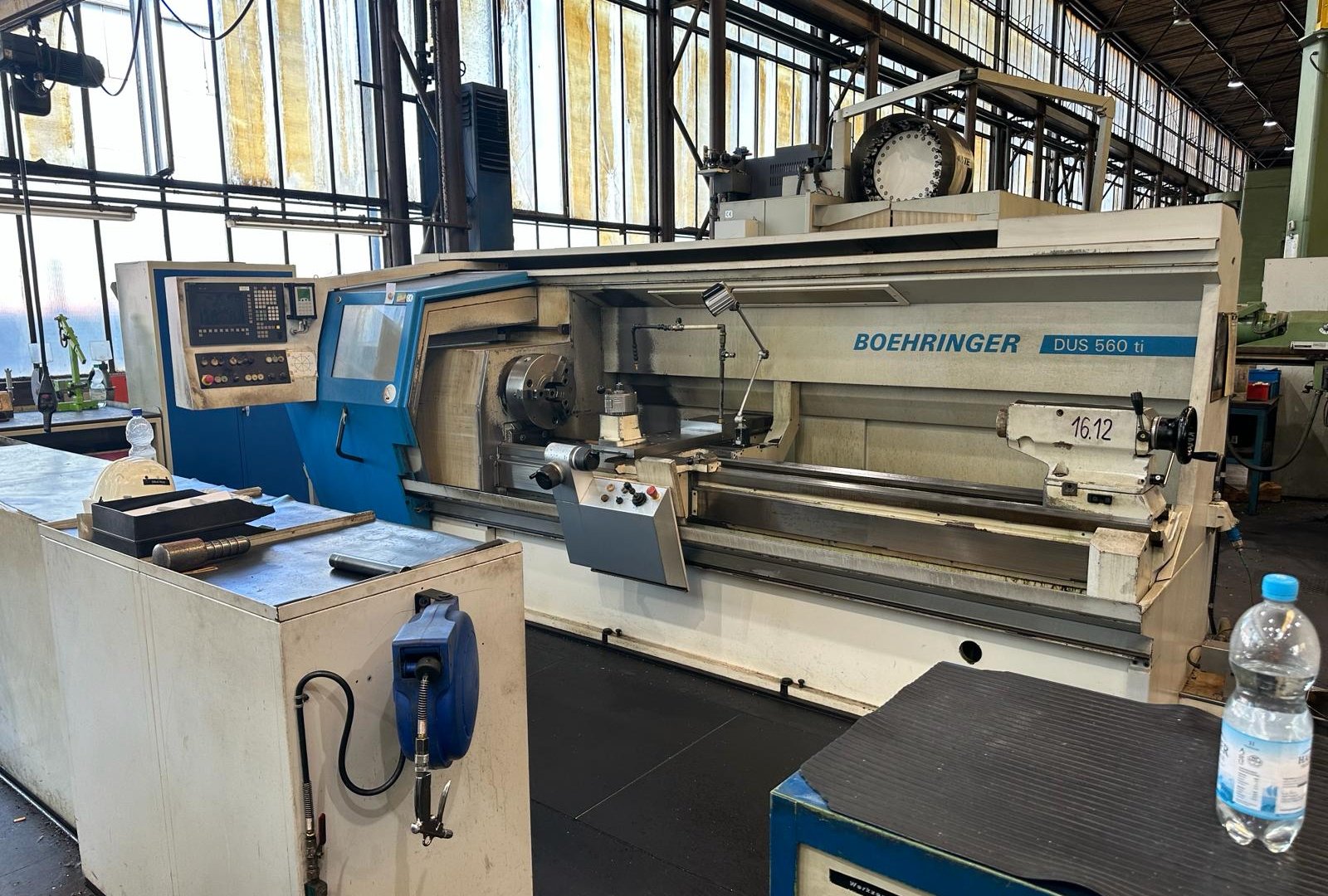

Teach-in lathe

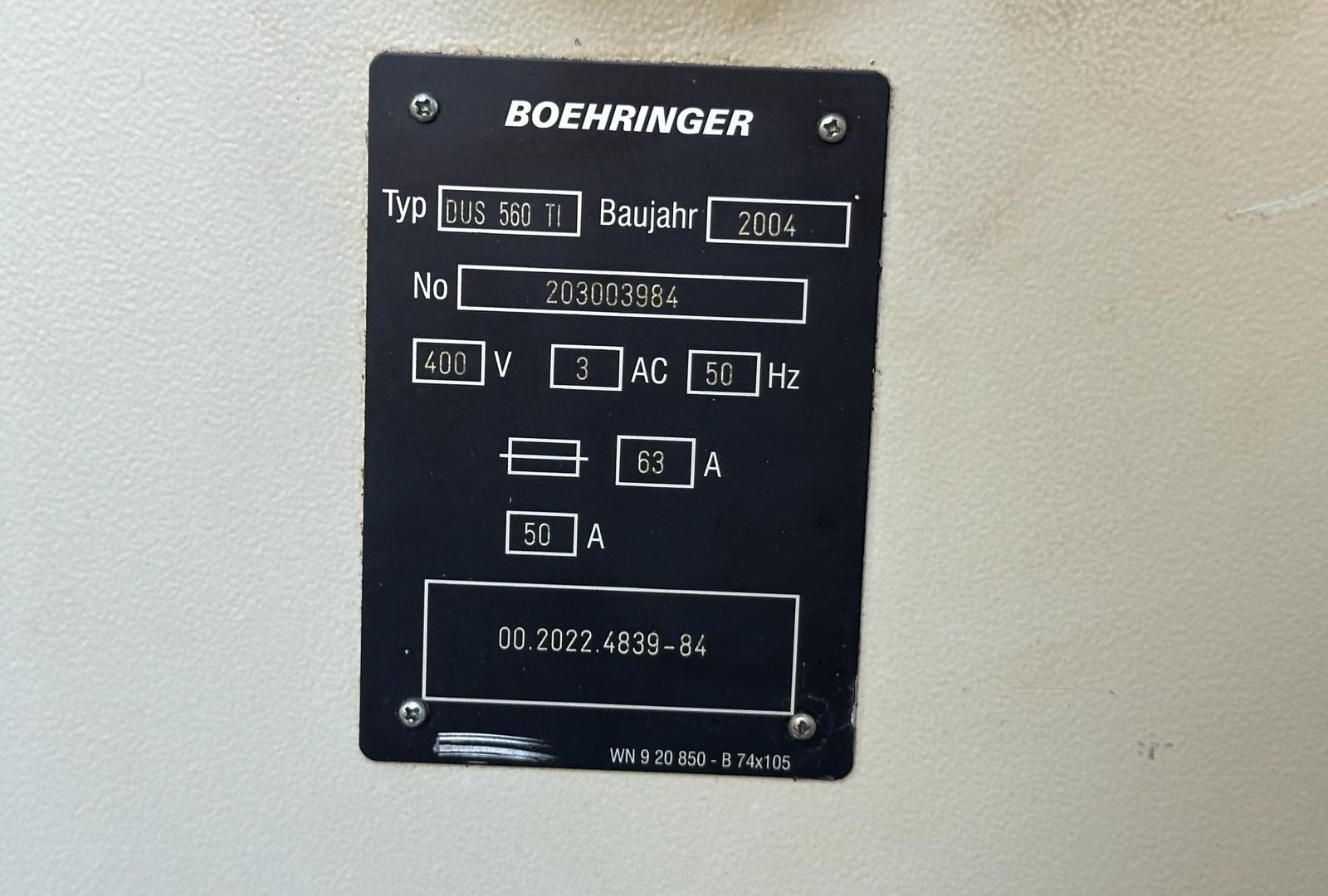

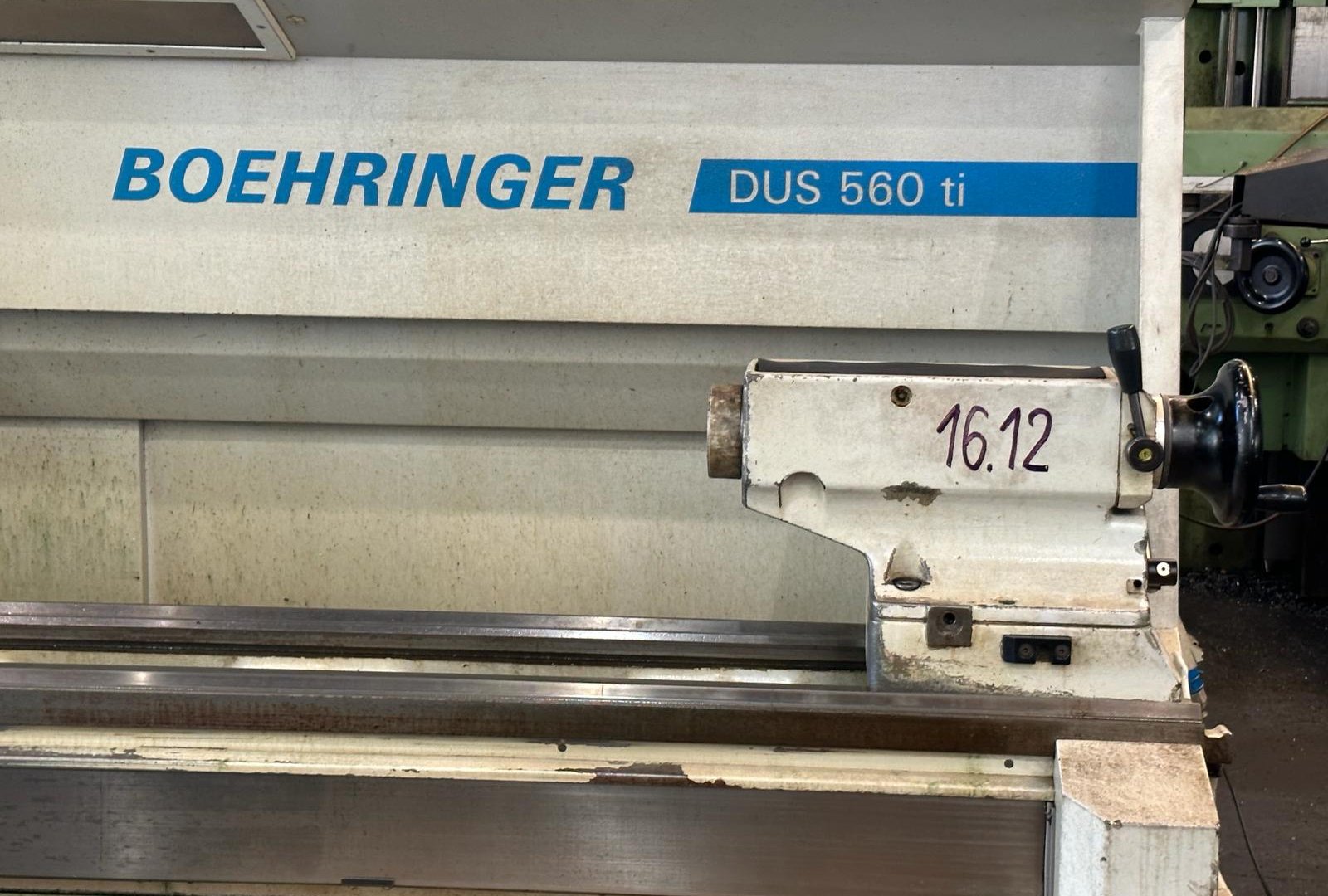

VDF BOEHRINGER - DUS 560 Ti
MACH-ID 8644
Manual turning for single workpieces
Step-By-step operations (cycle) for small batch sizes
CNC mode for larger batch sizes
Mehanite rigid box type double V-Prisma contruction

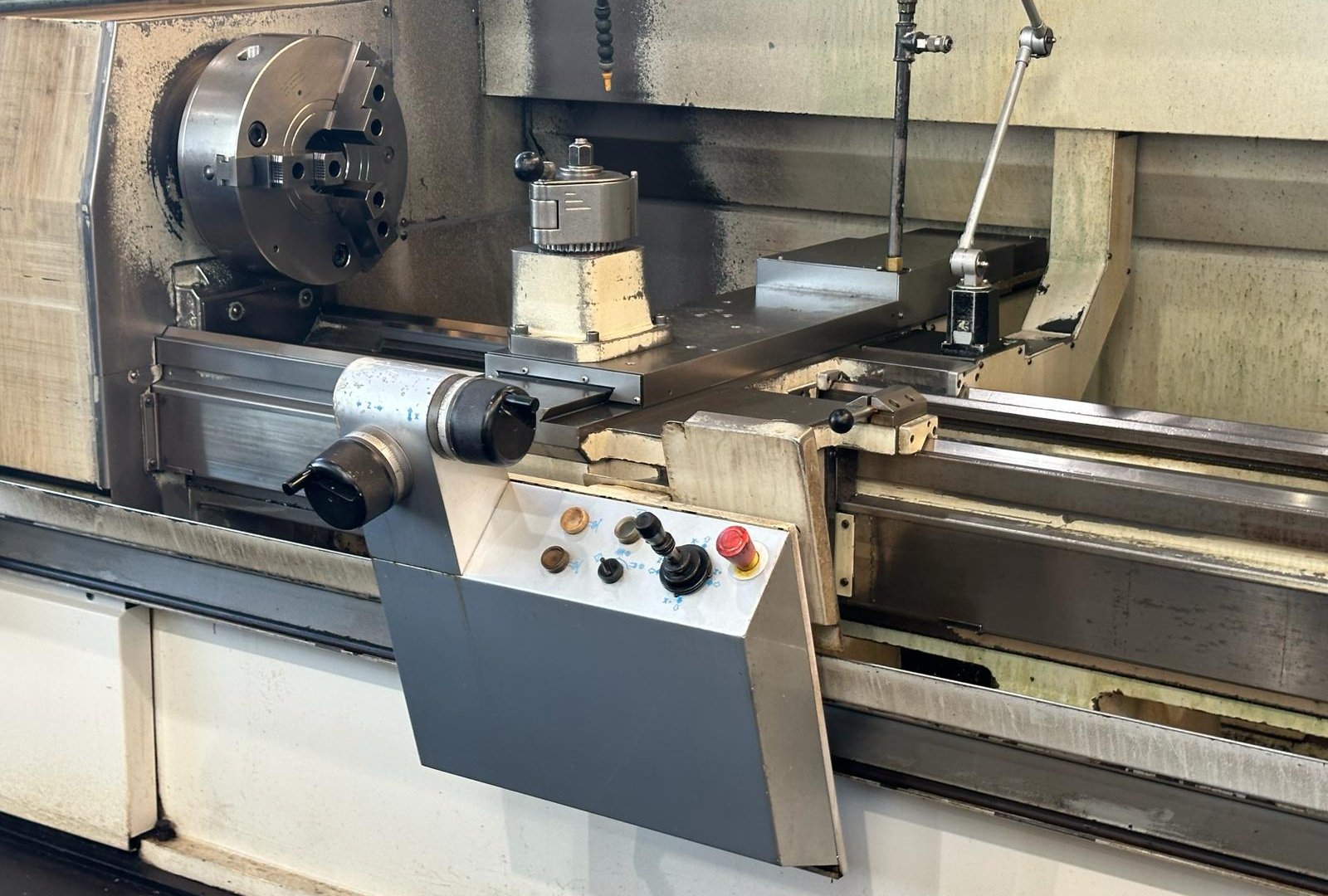

Handwheels ergonomically positioned
2 Step gear box automatically chagned by push button

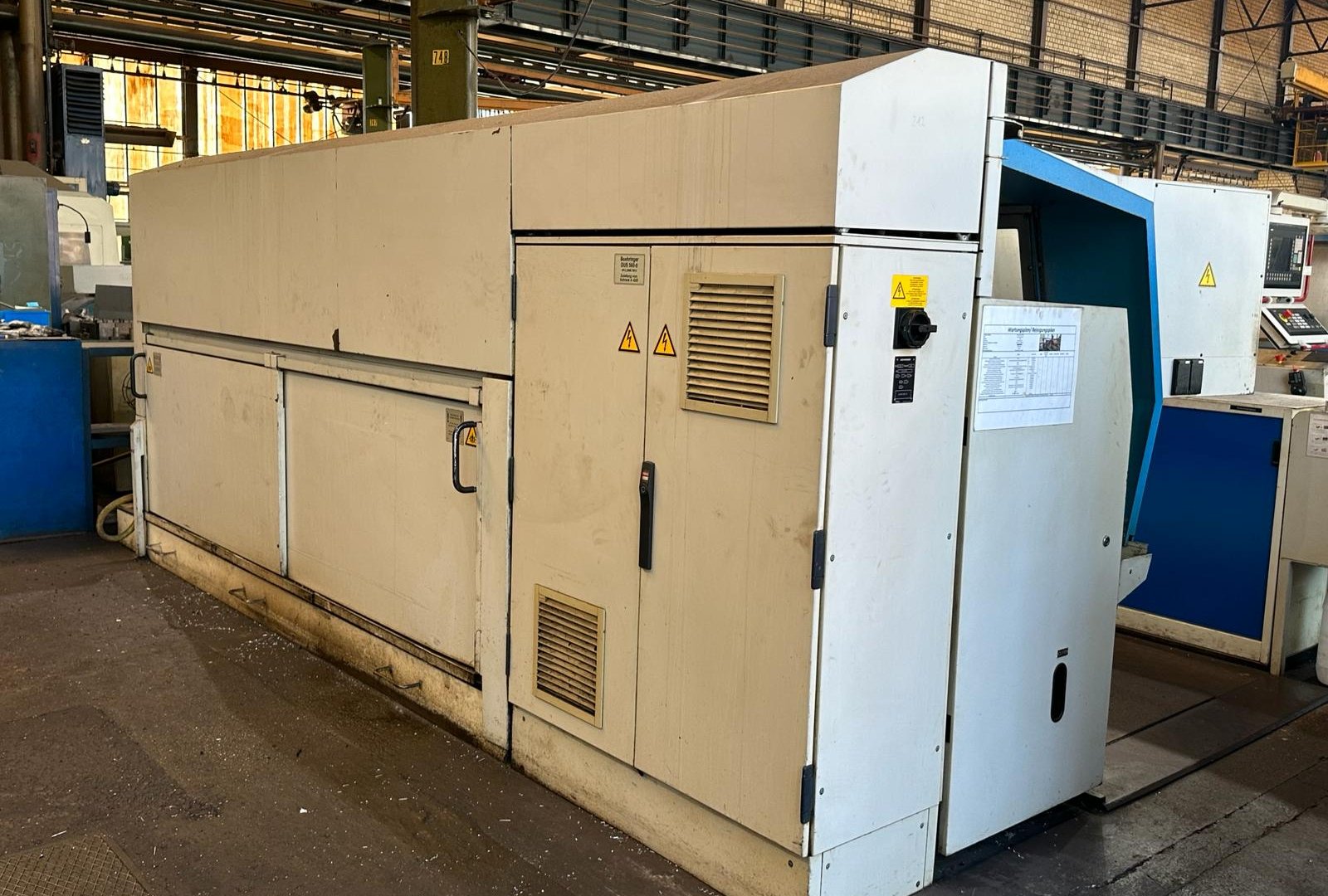

Sliding door chip disposal on back side


DBC Turning Length: 3000mm
Swing over bed Ø: 570mm
Swing over cross slide Ø:345mm
Spindle bore: 82mm
Spindle power: 25kW
Tailstock spindle Ø: 100Ø
Stroke pinole: 190mm
Spindle taper: 5Mk
Speeds / ranges: 2500Rpm
Feed rate X-Axis: 5000mm/min.
Feed rate Z-Axis: 10000mm/min.
Length: 5830mm
Width: 2156mm
Height: 2300mm
Weight: 6800kg
