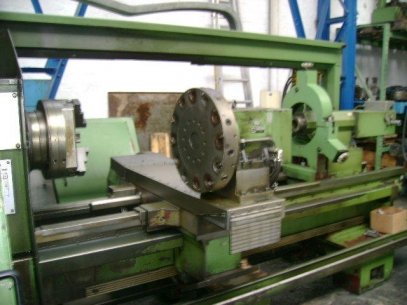

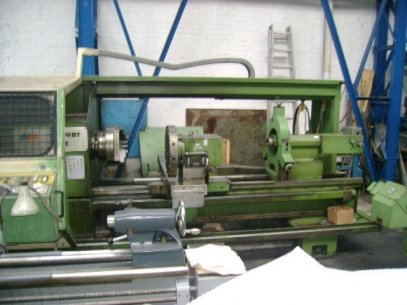

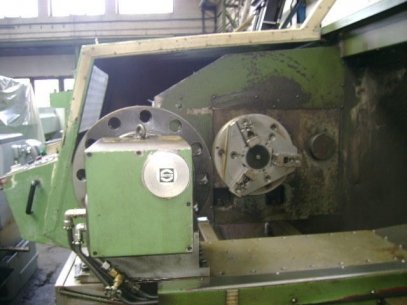

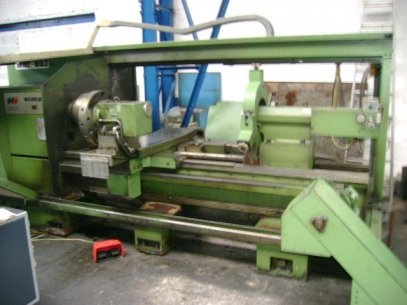

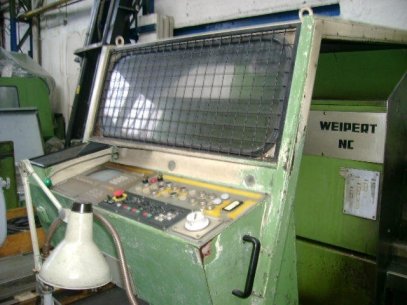

CNC lathe Fabr.Vöst Weipert-Type: WNC 802 X 2000 Bj.86 with Siemens 810T control. Height: 400mm Distance between centers: 2020mm Max Cutting Length: 1875mm Max circulating Over Bed: 800mm Max circulating überplanschliten: 500mm Max current in gap: 850mm length of the bend in front of face plate: 230mm Max workpiece weight: 2500kg Spindle head DIN55027 Size: 11 Spindle bore: 106mm SWpindeldrehzahlen from 6-2240U7Min spindle motor 45Kw. Chuck diameter of 400mm. Disc turret with 8 stations VDI50, bezel, chip conveyor.
