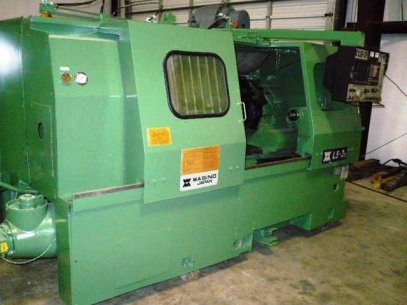

22" X 25" Wasino CNC Lathe

Control Fanuc 6TB

Swing Over Ways 22-13/16"
Swing Over Carriage 20.1"
Swing Over Cross Slide 13"
Travel Z Axis 25"
Travel X Axis 11"
Rapid Traverse X / Z 236 / 354 IPM
Spindle Thru Hole 3-3/8"
Spindle Speeds 30 To 3,000 Rpm's
Chuck Size 15" 3 Jaw
Top Turret Tools 12 Stations
Main Motor 20 Hp.
Tailstock Diameter 4-1/8"
Tailstock Taper MT # 4
Tailstock Quill Travel 4"
Dimensions 154" X 117"
Weight 9,680 Lbs.
Machine Chip Pan & Coolant Yes
Hardened & Ground Ways Yes

Note: Machine Has Been Cleaned And Painted

Condition: Appear To Be Good
