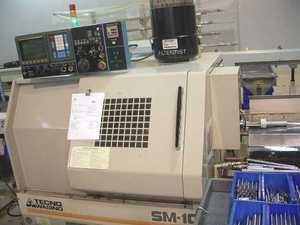

Wasino SM-10, Fanuc O-T, Fanuc O-T, 1.576" Hole, A2-4, 6000 RPM, 7.092"Z 6.107"X

General Specifications As Per Brochure

CNC Control: Fanuc O-T
Swing Over Cross Slide: 7.88"
Bar Capacity: 1.576"
Spindle Nose: A2 No. 4
Spindle Speed: 6000 RPM
Travel:
X-Axis: 6.107"
Y-Axis: 7.092"
Total Power Capacity: 16 KW
Main Motor: 10 HP
Turret Position: 8 Tools
Dimensions (Approx.): 68.95" x 56.145" x 68.359"
Weight (Approx.): 4620 Lbs.
Equipped with (must be verified by buyer):

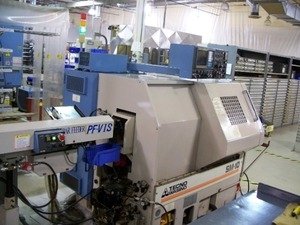

ALPS PF-V1S Magazine Bar Loader

3 - 5 Available

69" x 56" x 68"

4620
