WEILER, E-70, CNC LATHE, LATHES

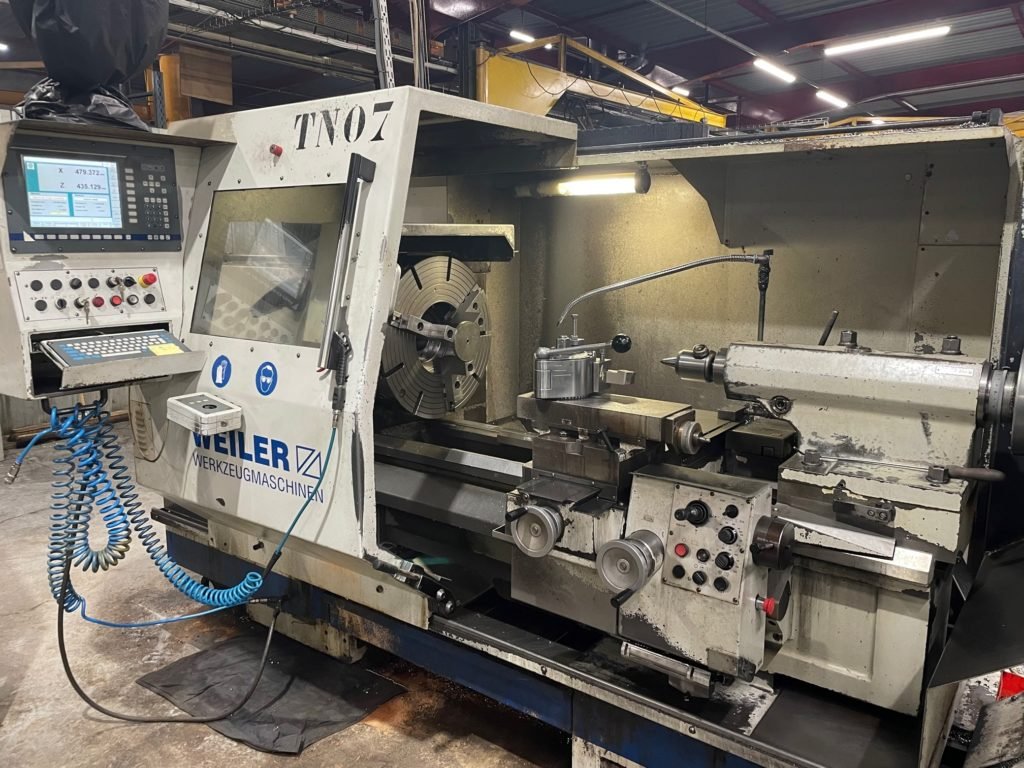

CNC lathe
WEILER - E-70
MACH-ID 7768
Make: WEILER
Type: E-70

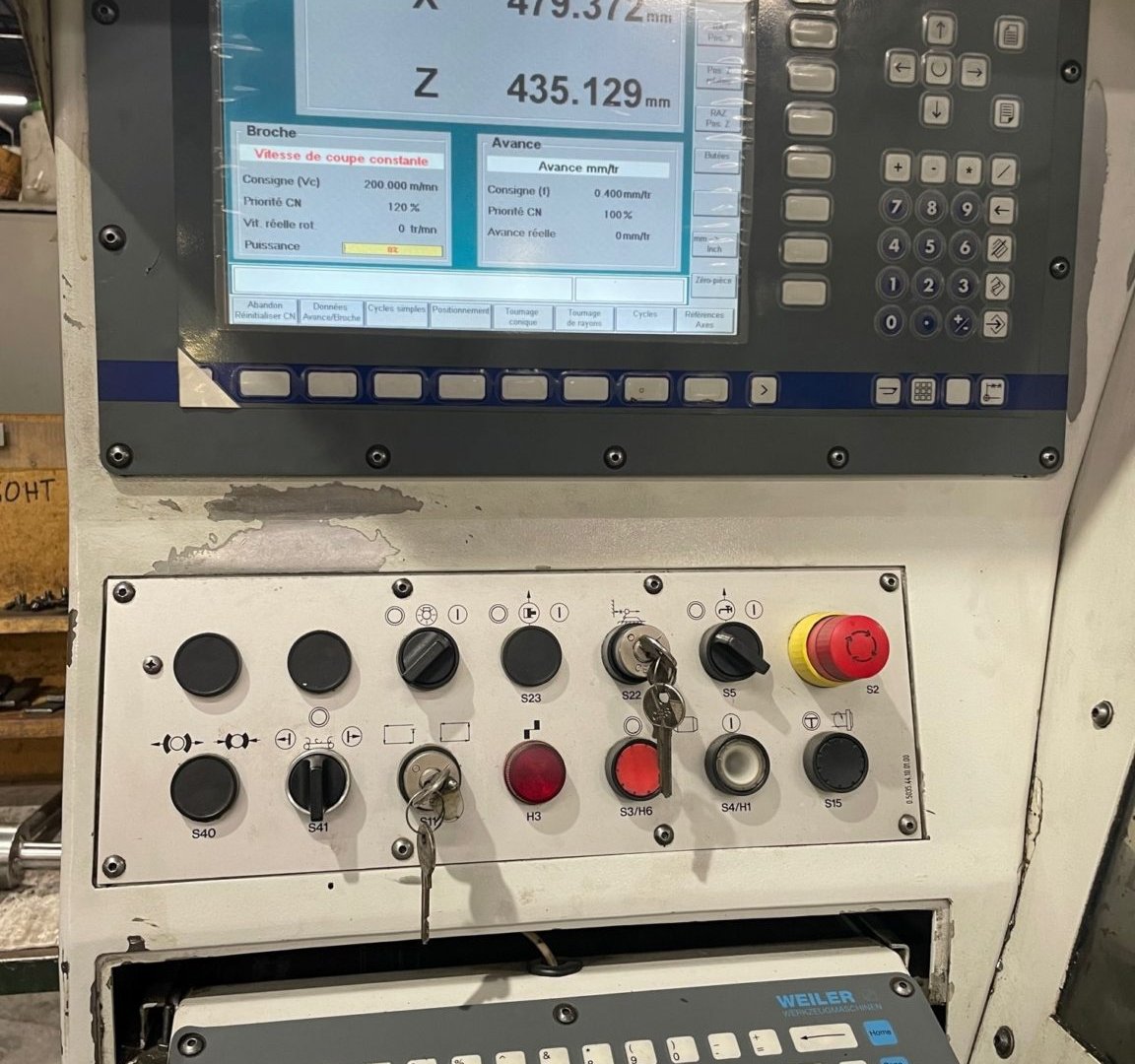

Control: Siemens 810D PowerLine
Year: 2000
Multifix tool holders system
3 chuck ca 600 mm diameter
CE-Safety Covers

DBC Turning Length: 1000mm
Swing over bed Ø: 720mm
Swing over cross slide Ø:430mm
Spindle bore: 106mm
Spindle power: 37kW
Bed width: 480mm
Tailstock spindle Ø: 115Ø
Spindle taper: 6Mk
Length: 3200mm
Width: 1800mm
Height: 1900mm
Weight: 4500kg

Specifications:

CNC lathe
WEILER - E-70
MACH-ID 7768
Make: WEILER
Type: E-70
Control: Siemens 810D PowerLine
Year: 2000
Multifix tool holders system
3 chuck ca 600 mm diameter
CE-Safety Covers

DBC Turning Length: 1000mm
Swing over bed Ø: 720mm
Swing over cross slide Ø:430mm
Spindle bore: 106mm
Spindle power: 37kW
Bed width: 480mm
Tailstock spindle Ø: 115Ø
Spindle taper: 6Mk
Length: 3200mm
Width: 1800mm
Height: 1900mm
Weight: 4500kg

Dealer name:

Mach4Metal Netherlands, Babberich
