• variable frequency drive for infinitely variable speed adjustment ensures optimum results
• stepped gears for high pull-through power
• 2 electronic handwheels for manual operation
• programming of complex parts without any DIN programming knowledge
• implemented cycles for facing and plain turning, radius, taper, tapping, plunge-cut, and complete contour lines

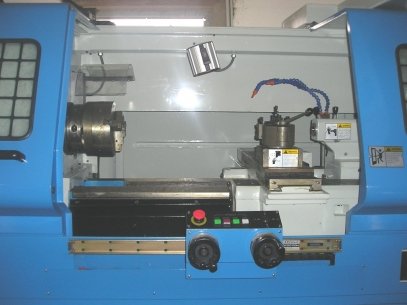

• customized degree of automation for individual requirements by using either the standard quick-change tool holder or a fully automatic 8-station tool turret (optional)
Standard Equipment:
• RS-232 interface
• autom. central lubrication
• WB quick-change tool holder head
• halogen work lamp
• coolant system
• 2 sliding doors with sight glass
• operating tools
• programming instructions
• operator manual
SINUMERIK 802C base line
The SINUMERIK 802C base line
• Simple programming according to DIN 66 025
• Easy gauging of tool by scratching
• Contour elements as programming aid
• Cycle support for complex applications
Specifications Proton 530 Proton 460 Proton 360
Turning diameter over bed 530 mm 460 mm 360 mm
Turning diameter over cross-slide 280 mm 240 mm 160 mm
Center height 265 mm 230 mm 180 mm
Center width 1000/1500/2000 1000/1500 570/1000 mm
Bed width 370 mm 350 mm 330 mm
Spindle speed high 2 steps 760–2000 +
250-760 min-1 360 mm 150-3000 U/min
