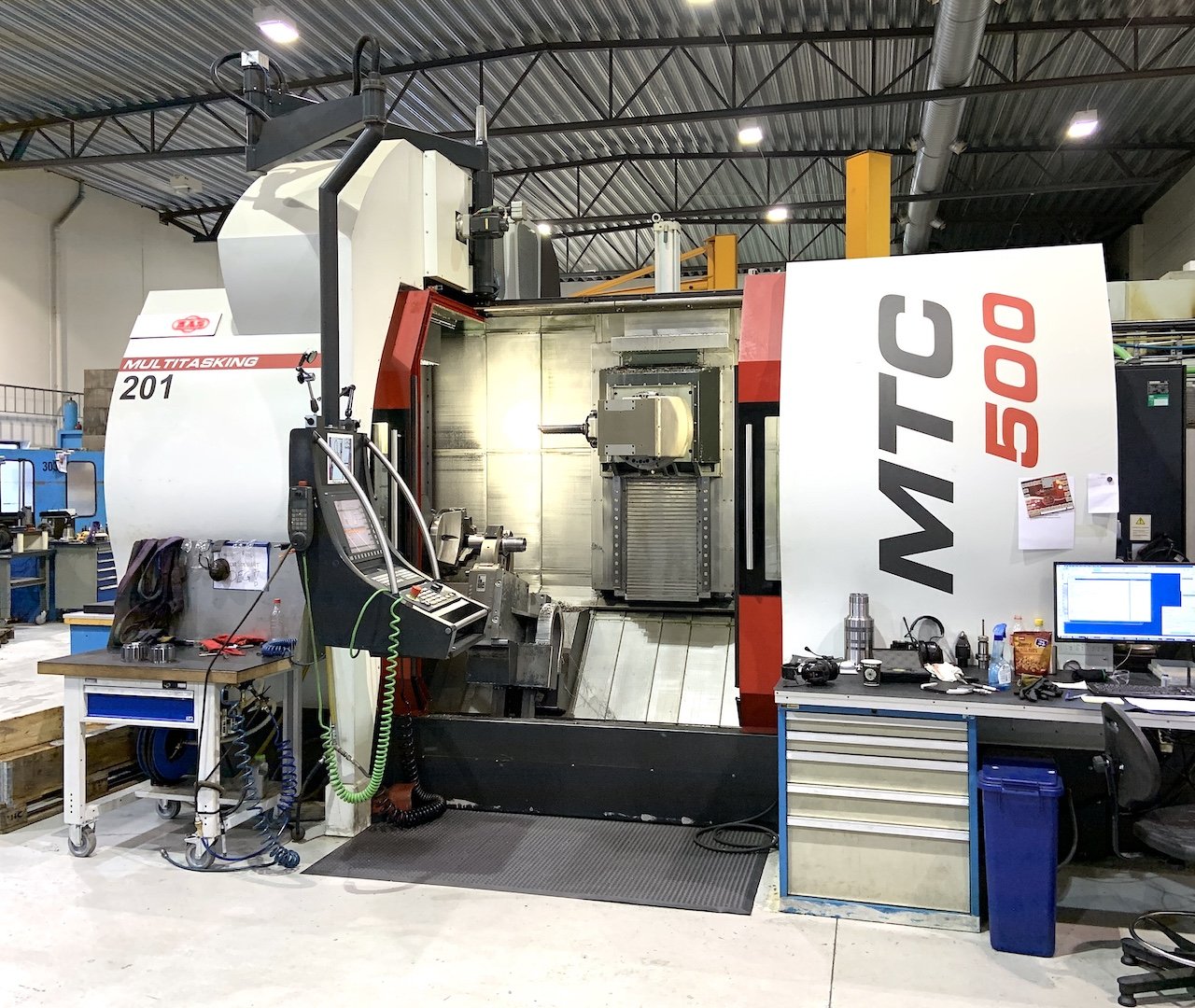

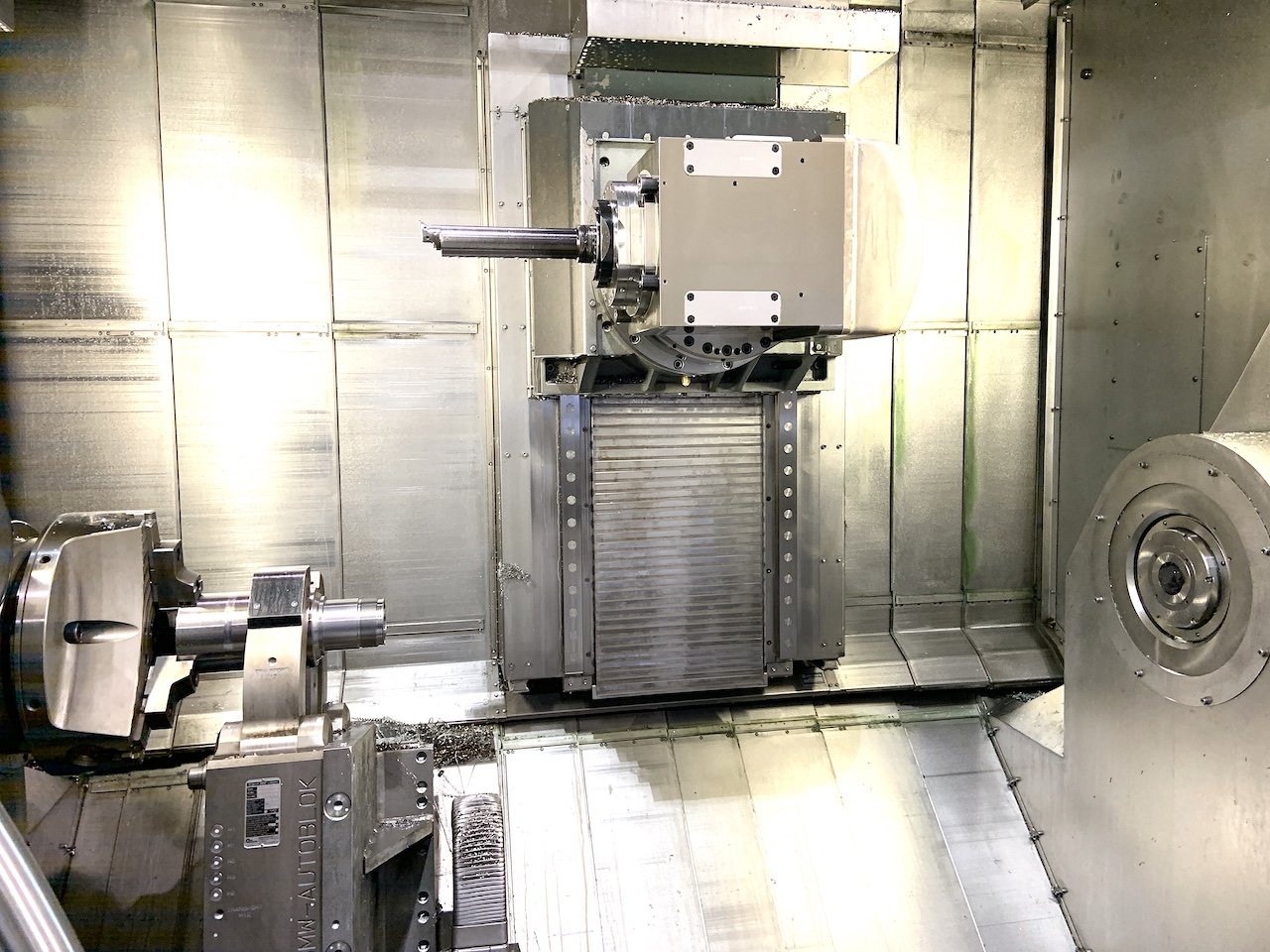

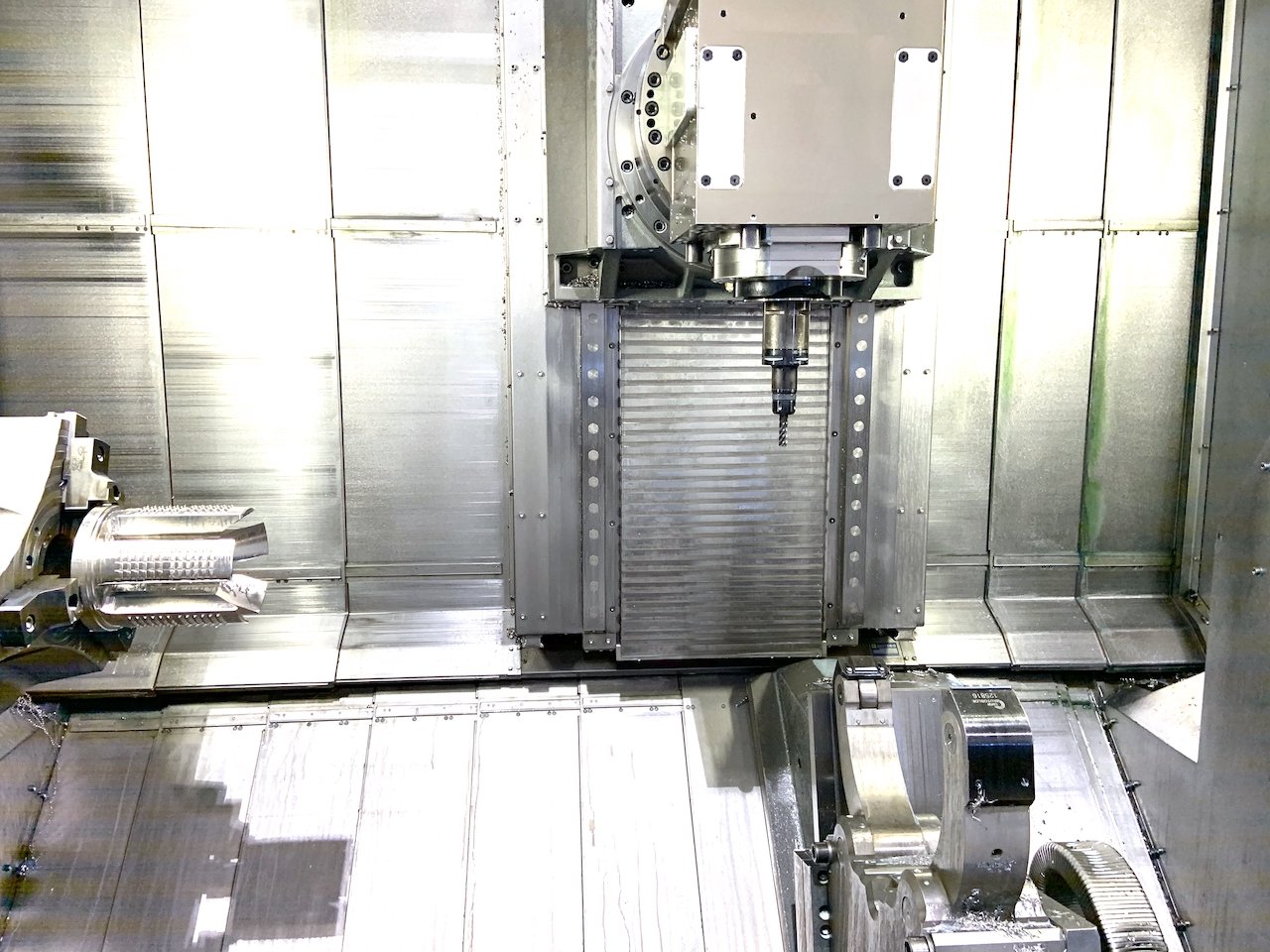

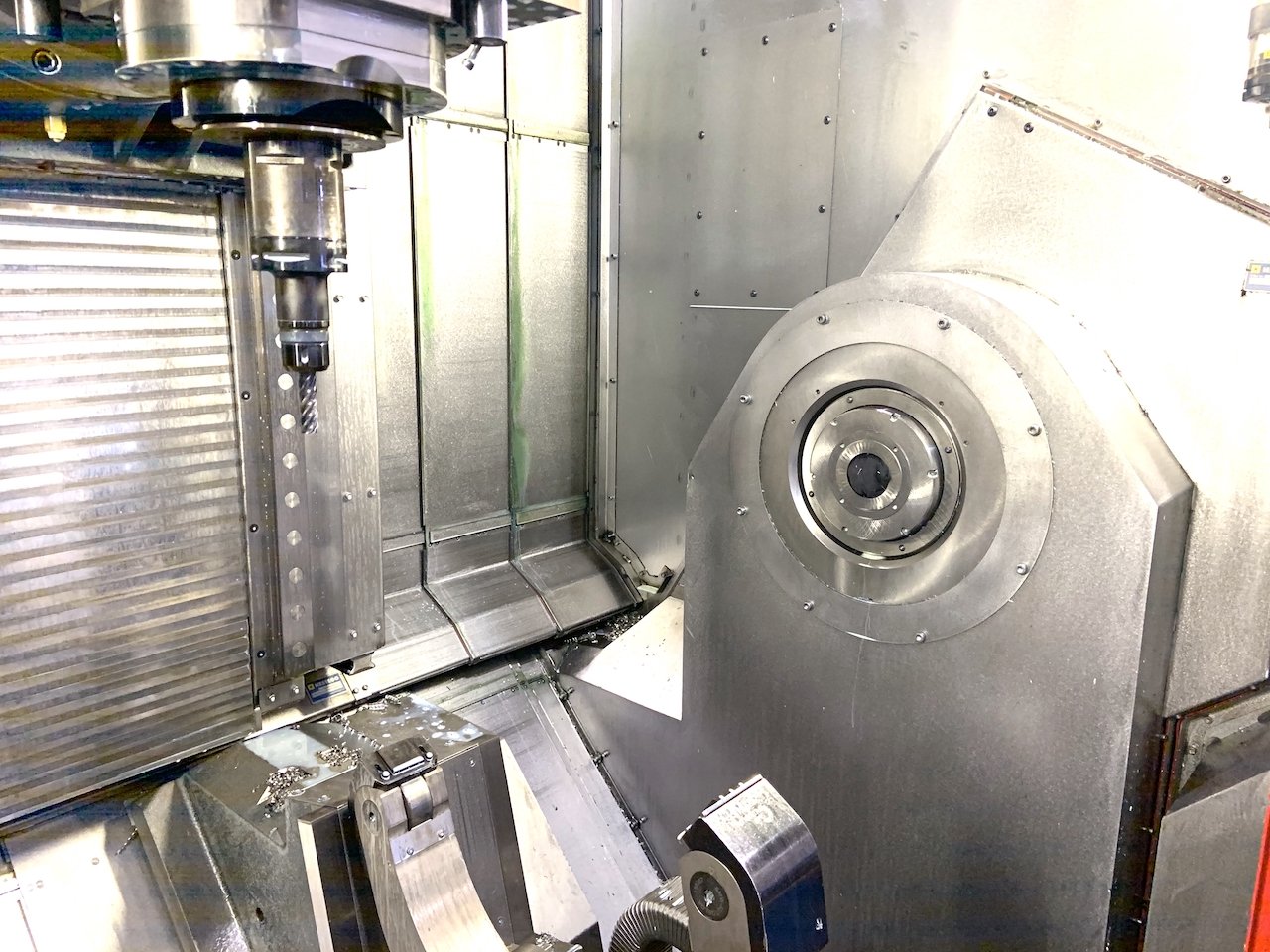

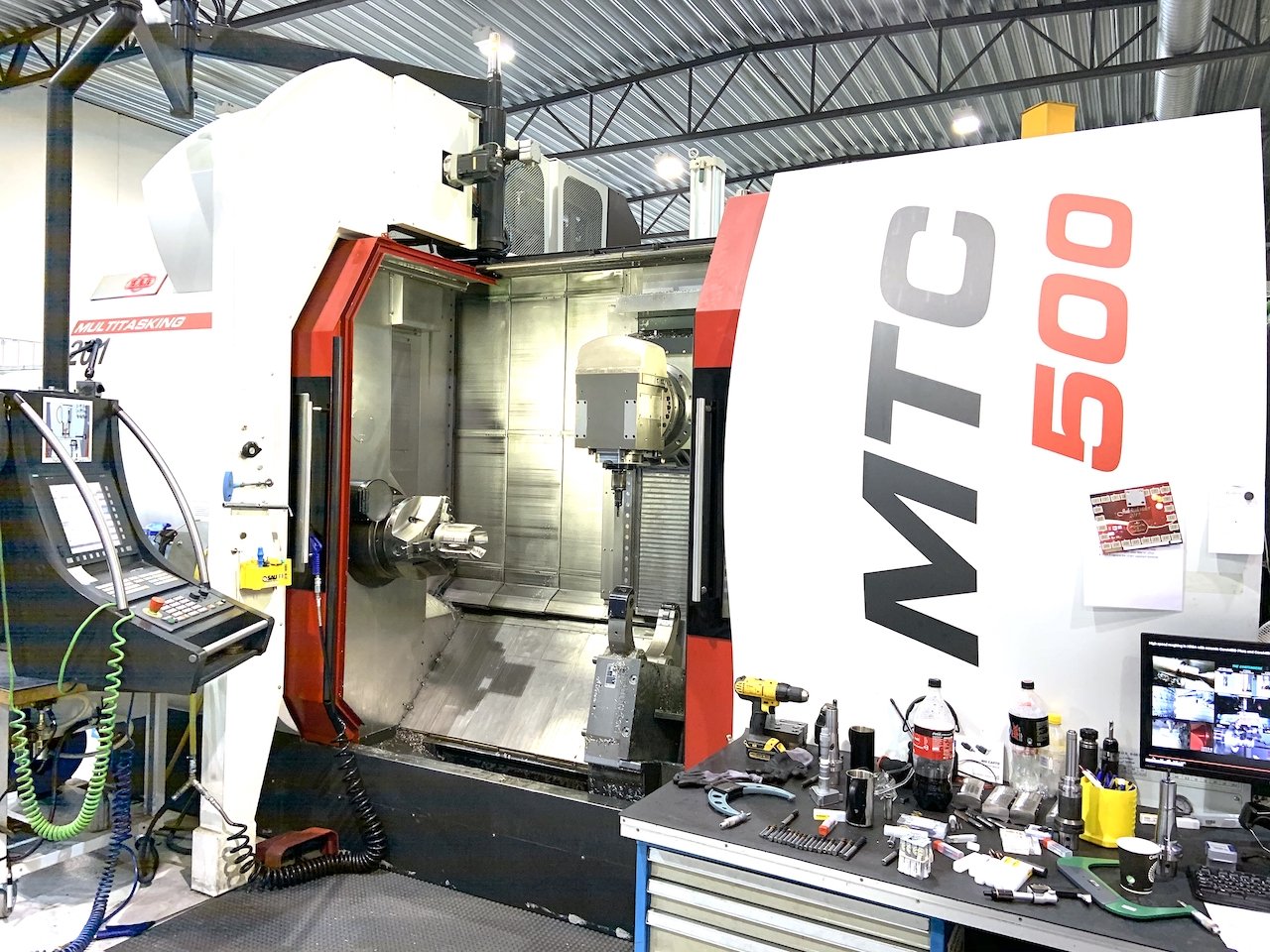

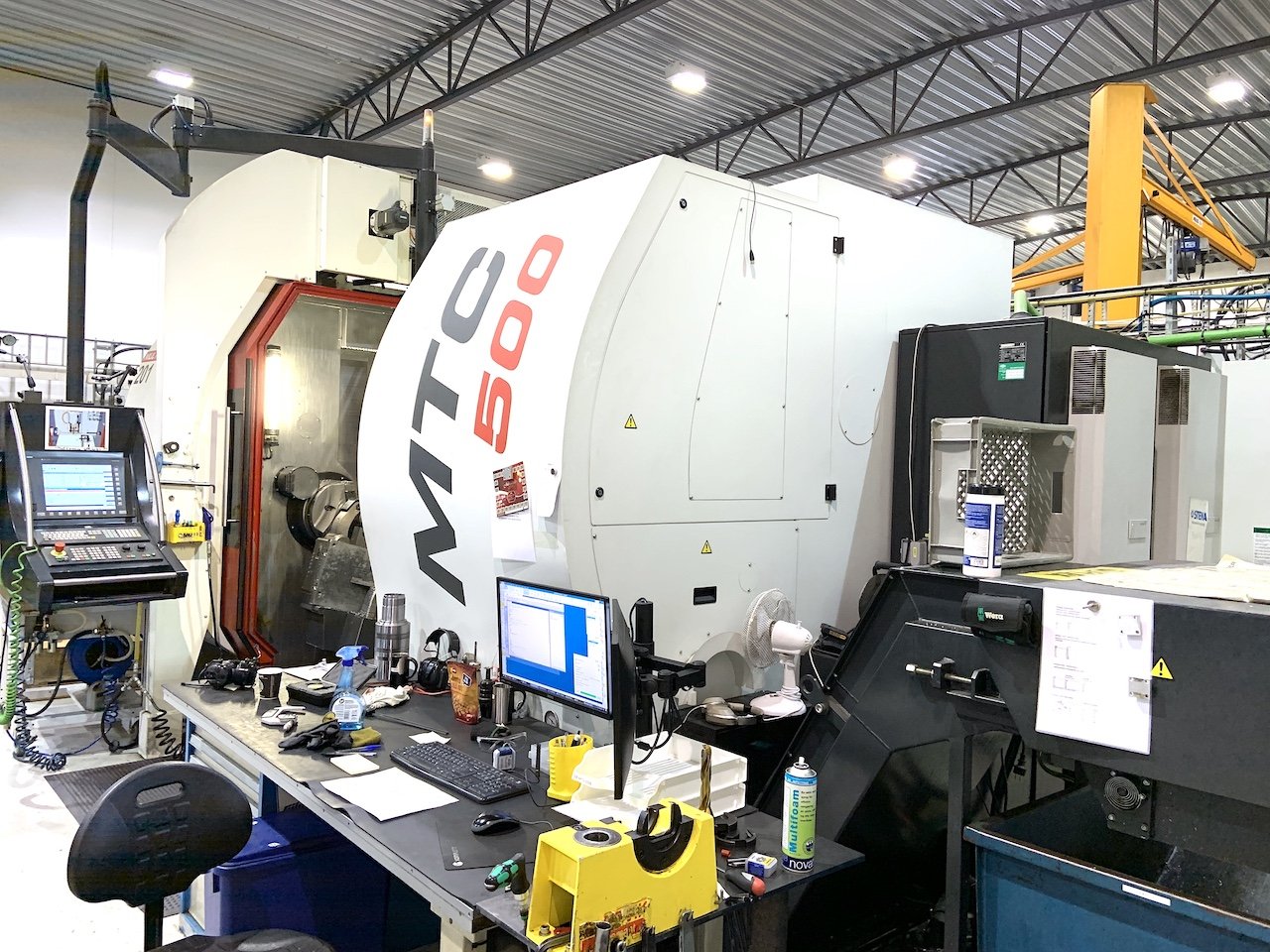

Mulitcut 500i 5 axis turning center in very good condition. (X, Z¹,Z²,C, B, Y axis).
The machine was installed in September 2014 and has had regular service.
This is a very powerful and very accurate machine.
Specifications:

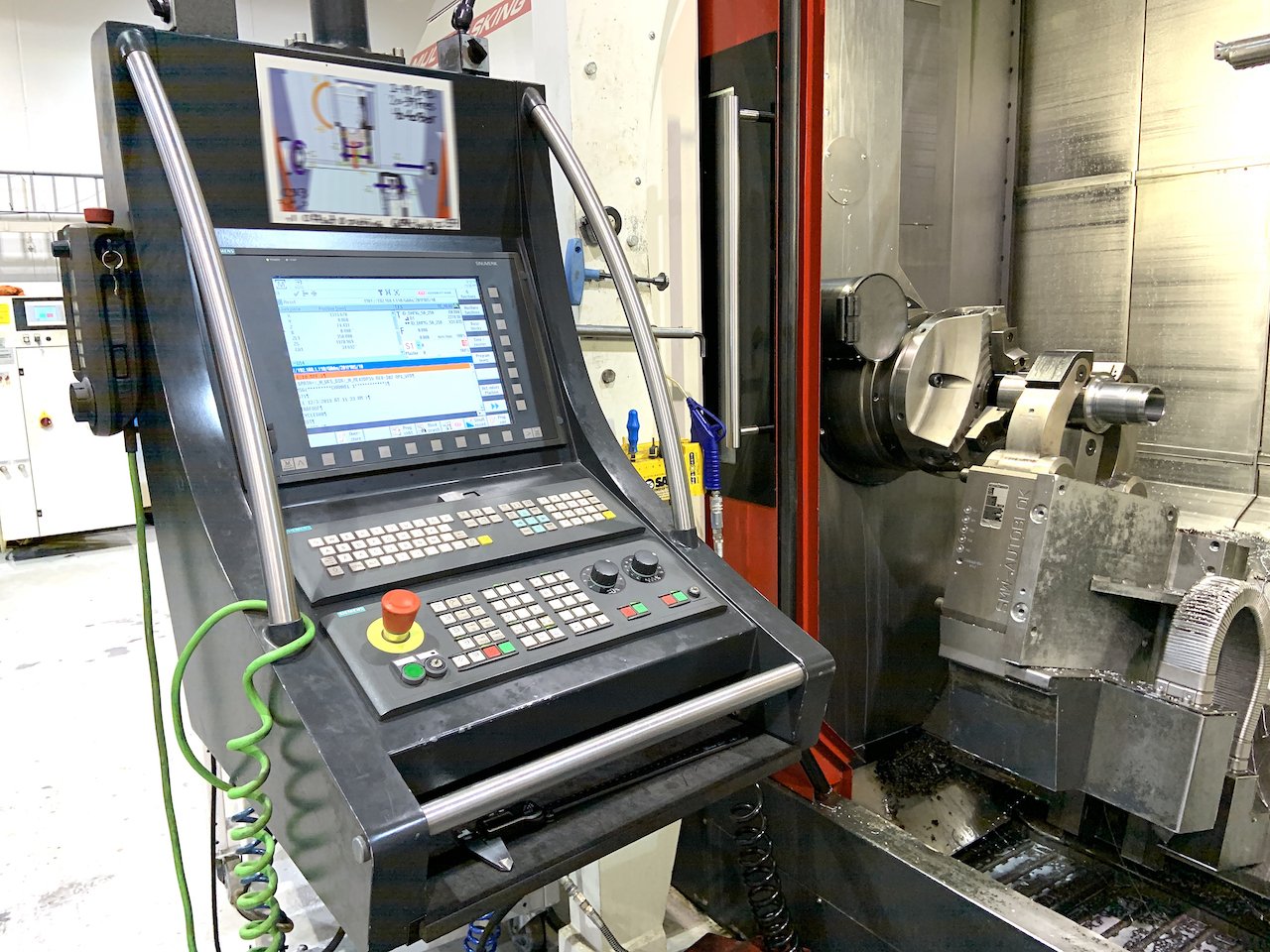

CNC Siemens 840D
Swing over bed 1030 mm
Maximum turning diameter 690 mm
Turning length 1 693 mm
Y-axis 370 mm
Spindle bore 106 mm
Bar capacity through draw tube 94 mm
Spindle speed 3 500 rpm
Spindlemotor S1/S6 40¤ AD 59/74 kW

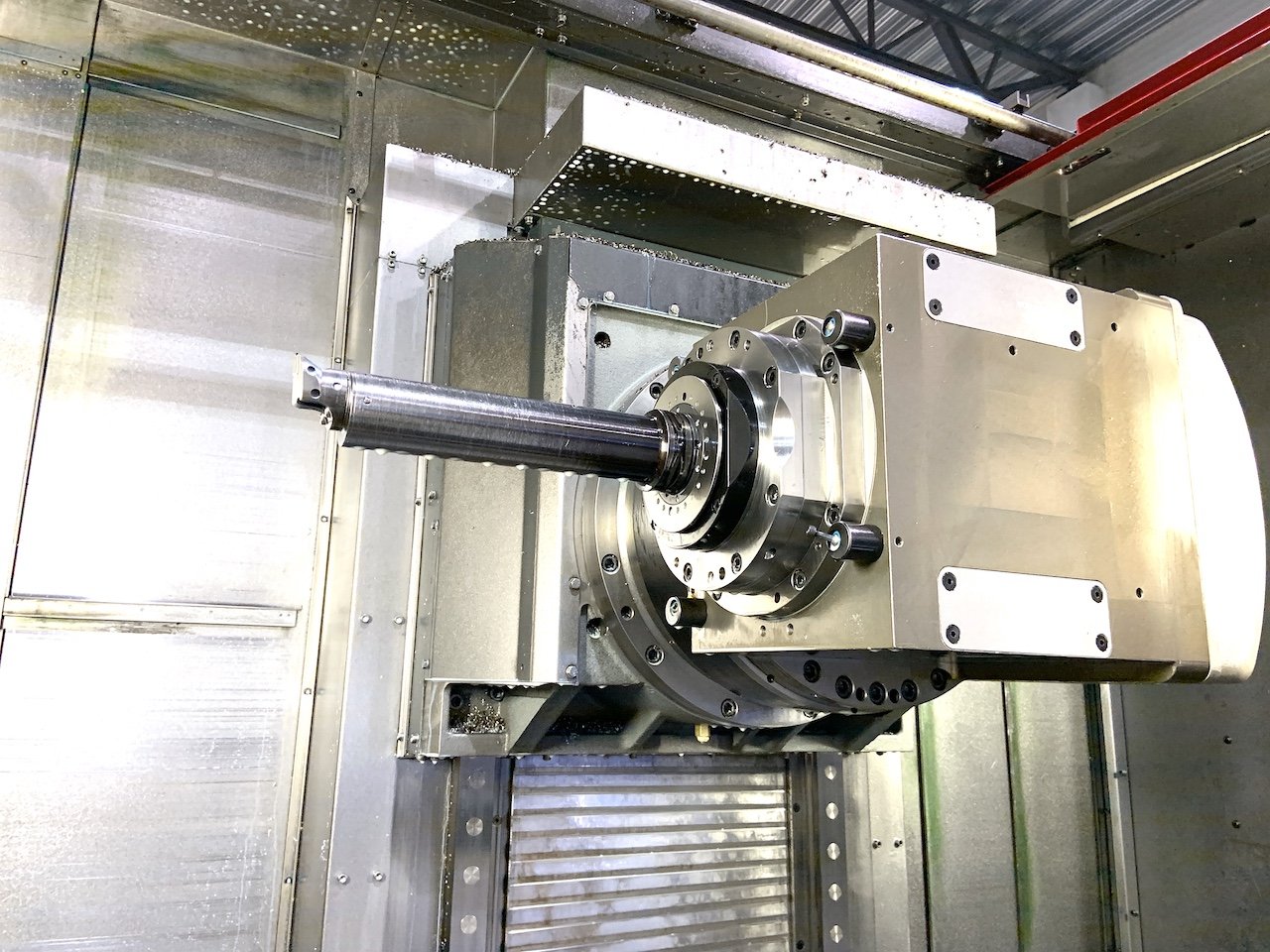

Milling spindle 12000 rpm
Milling spindle power S6 40% AD 22 kW
Milling spindle taper CAPTO C6
B-axis -120º, + 105º

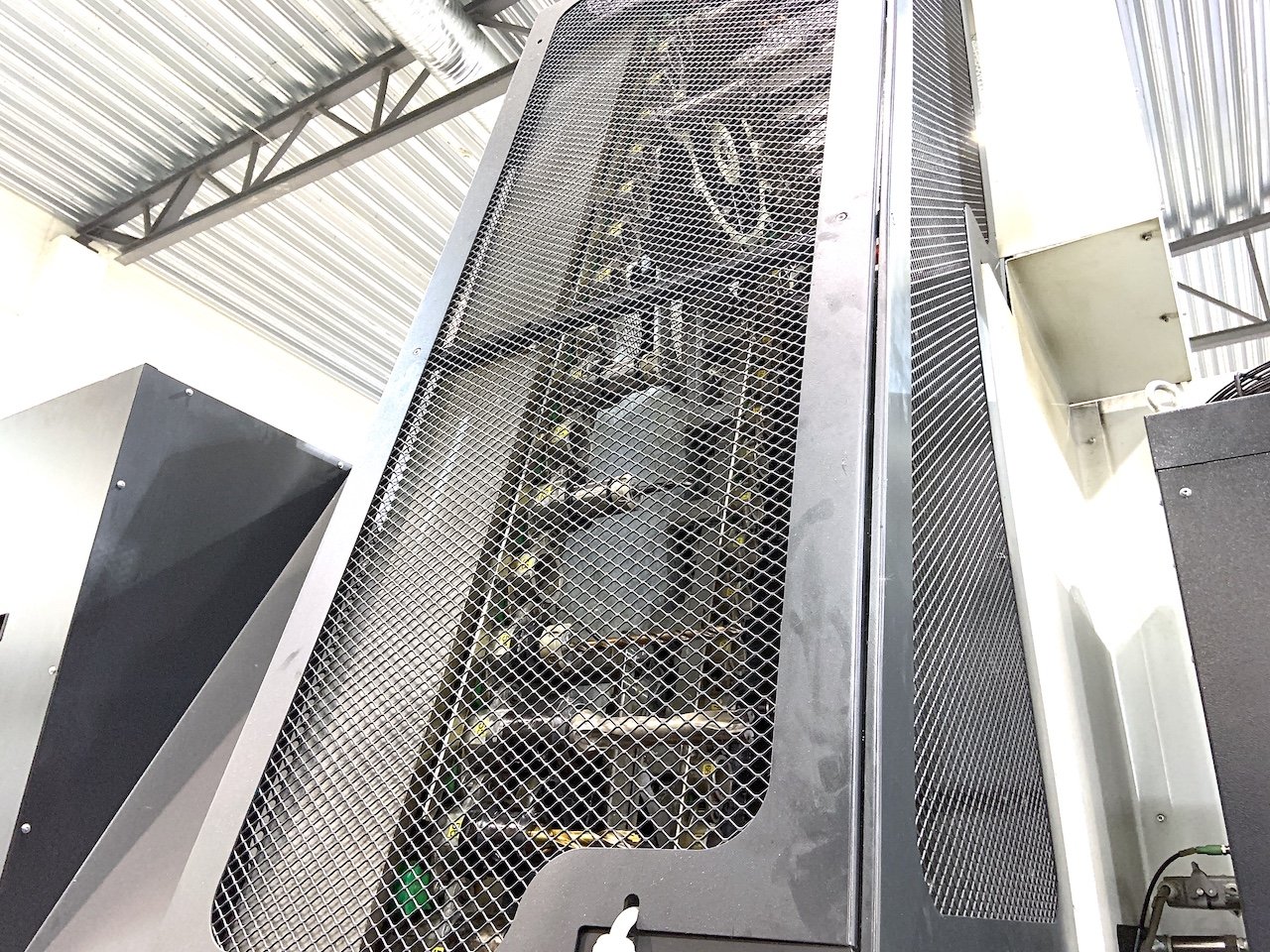

ATC magazine with 81 positions
Linear scales in X,Z,Y
Tailstock MK6, travel 180 mm
Machine dimensions L W H 5,4 x 3,86 x 3,76m
Machine weight 22 800 kg
The machine has the following extra equipment:

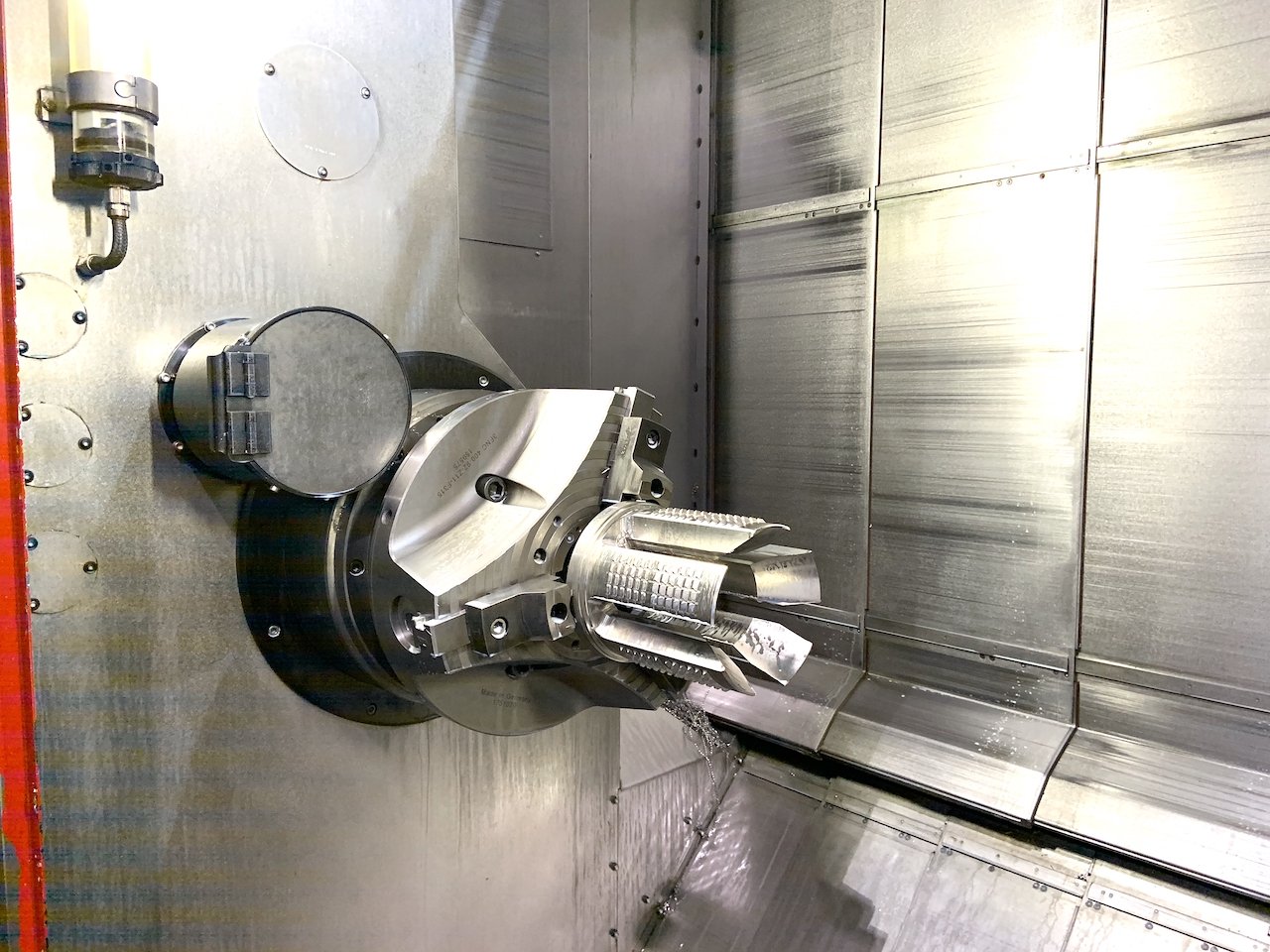

• Forkart chuck type 3FNC with reversible hard jaws

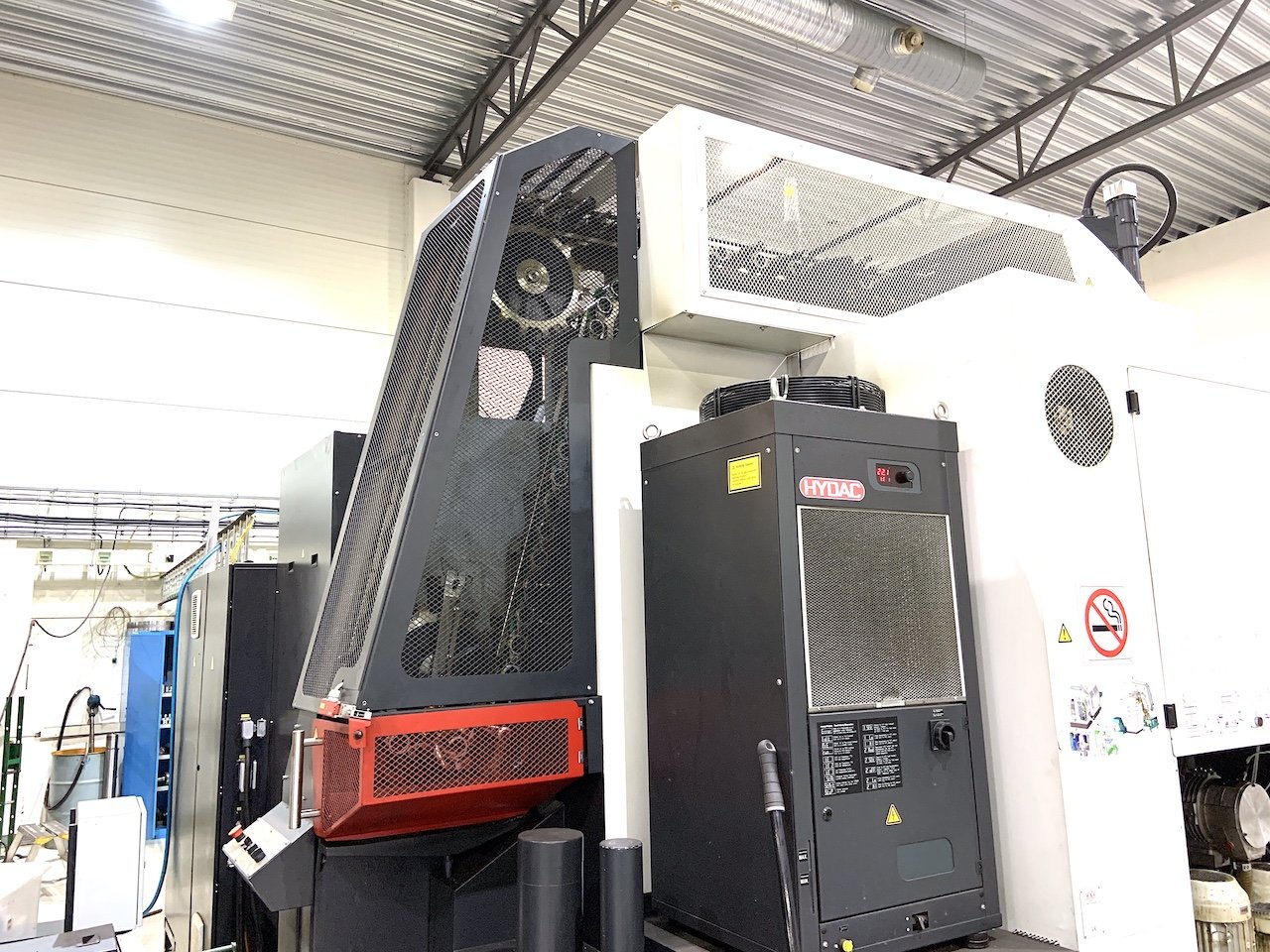

• Chip conveyor
• Through tool coolant 60 bar
• Coolant gun
• Automatic tool measurement
• Automatic opening of doors

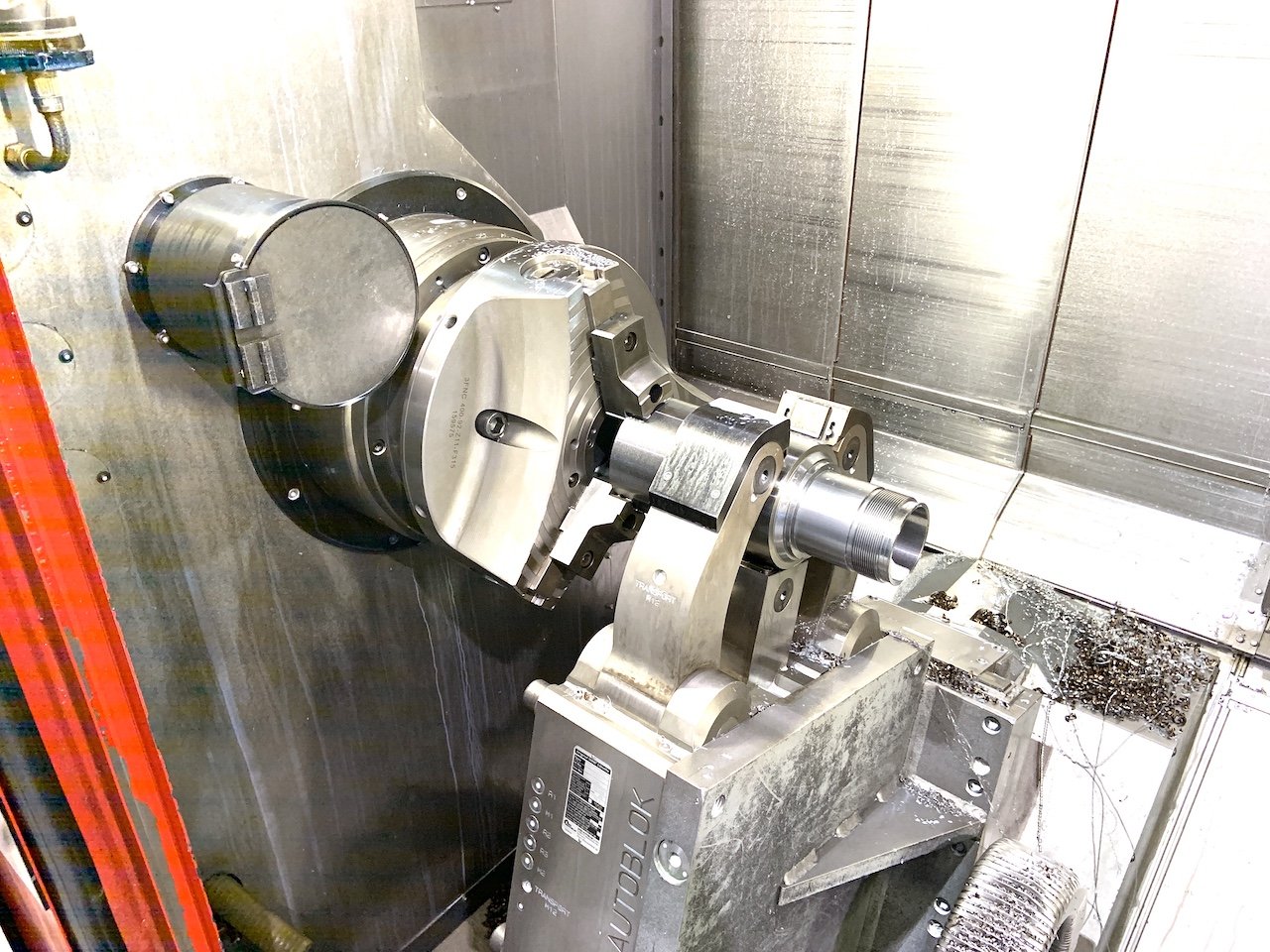

• Servodriven hydraulic steady rest type SMW SR 5.1, (85 to 350 mmØ). Automatic up/down movement.
