MAZAK, Integrex 200-3, CNC TURNING AND MILLING, LATHES

Condition:Used
Category:LATHES
Type:CNC TURNING AND MILLING
Manufacturer:MAZAK
Model:Integrex 200-3
YOM:2003
Location:Netherlands, BABBERICH
Price:On request
Stock No:7000
Control:CNC
ID:AS29251

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

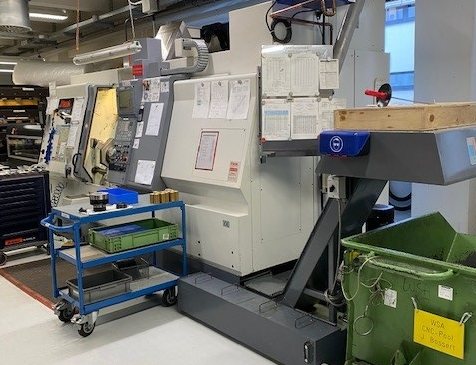

MAZAK - INTEGREX 200-3
CNC Mill Turn Ø 540 x 1005 mm with B & Y Axis

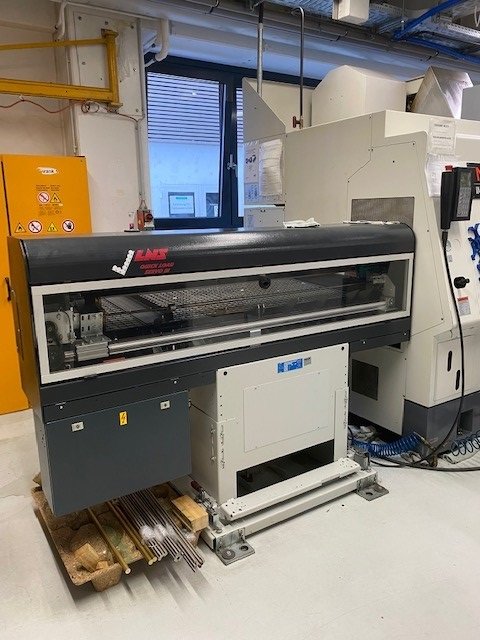

incl. LNS Bar feeder
incl. tailstock no sub spindel
incl. large tooling package

Max. turning Ø:540mm
X-Axis: 580mm
Y-Axis: 80mm
Z-Axis: 1.045mm
B Axis: 225°
Spindle bore: 76mm
Speedrange: 4000Rpm
ATC / revolver:40
Pinole taper: 5Mk
Stroke pinole: 200mm
Length: 5.800 mm
Width: 2.900 mm
Height: 3.000 mm
Weight: 9.200 kg

Specifications:

MAZAK - INTEGREX 200-3
CNC Mill Turn Ø 540 x 1005 mm with B & Y Axis
incl. LNS Bar feeder
incl. tailstock no sub spindel
incl. large tooling package

Max. turning Ø:540mm
X-Axis: 580mm
Y-Axis: 80mm
Z-Axis: 1.045mm
B Axis: 225°
Spindle bore: 76mm
Speedrange: 4000Rpm
ATC / revolver:40
Pinole taper: 5Mk
Stroke pinole: 200mm
Length: 5.800 mm
Width: 2.900 mm
Height: 3.000 mm
Weight: 9.200 kg

Dealer name:

Mach4Metal Netherlands, Babberich
