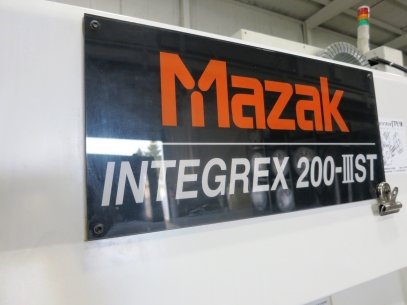

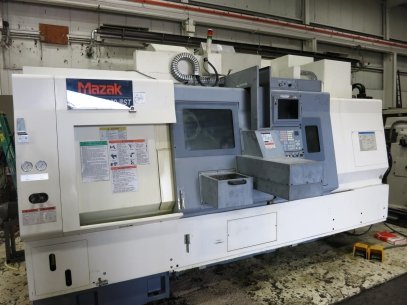

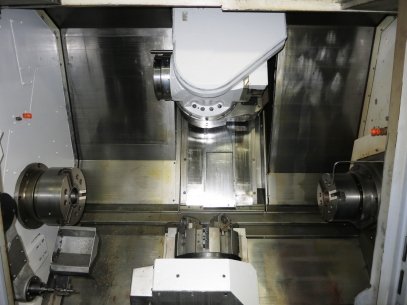

MAZAK INTEGREX 200-3ST MULTI-AXIS CNC TURNING & MILLING CENTER




General Specifications
Max. swing 26"
Max. swing over carriage 19.7" - 26"
Note: Depends upon workpiece length, tool magazine
type and Y Axis position.
Max. cutting diameter: Chucking 26"
Max. cutting length 40"
Max. distance between chuck faces 41.14"
Main Spindle (L):
Spindle nose A2-6
Spindle bore 2.99"
Max. bar work 2"
Spindle speed/ranges 35-5000 RPM/2
Spindle index (programmable) 0.0001 degrees
Spindle horsepower (cont./30 min) 20/30 HP (A.C.0
Spindle torque 258.1 ft-lbs

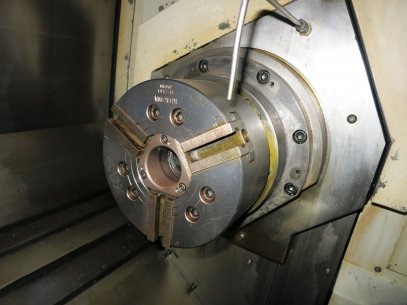

Second Spindle (R):
Spindle nose A2-6
Spindle bore 2.99"
Max. bar work 2"x34.6"deep from
chuck face
Spindle speed/ranges 35-5000 RPM/2
Spindle index (programmable) 0.001 degree
Spindle horsepower (cont./30 min) 20/25 HP (A.C.)
Spindle torque 241 ft-lbs

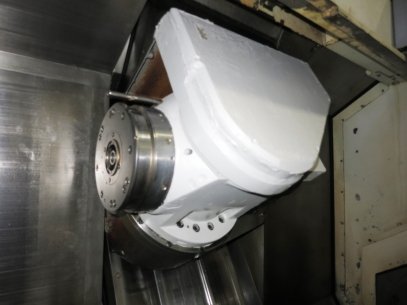

Upper Turret and Tooling:
Type of turret 1 position,w/ATC
Magazine capacity 40 Tools
Tool selection method Random
Max. tool dia. w/all pockets full 3.54"
Max. tool dia. w/adjacent pockets empty 4.92"
Max. tool length (from gage-line) 11.8"
Max. tool weight 22 lbs
Rotary tool spindle speed/ranges 12,000 RPM/1
Rotary tool spindle horsepower (20% ED) 20 HP (A.C.)
Rotary tool torque (20% ED) 88.2 ft-lbs
2
Stock 1
2 2 3
SERIAL NUMBER 4 NEW 5
GENERAL SPECIFICATIONS: (Cont.)
Lower Turret and Tooling:
Type of turret Drum
Tool shank height 1.0" x 1.0"
Tool size (boring bar max. diameter) 1.25"
Total number of tools 9
Tool selection method Bi-Directional
Tool Index time (1 ste) 0.14 Seconds
Axis Travels:
B-Axis (.0001 deg. increments) 225 Deg.
Y-Axis +/- 3.15" X-Axis 22.83" Z-Axis 41.1" X2 Axis lower 5.9" Z2 Axis lower 38.98" Second headstock W-Axis 41.34" Axis Rapid Rates: Y-Axis 1023 IPM X/X2 Axis 1496 IPM Z/Z2 Axis 1496 IPM Second headstock W-Axis 1181 IPM C-Axis 400 RPM Machine weight (Approx) 22,440 Lbs.



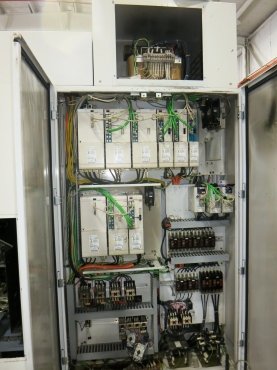

Motor Specifications
Not Available



Equipped With

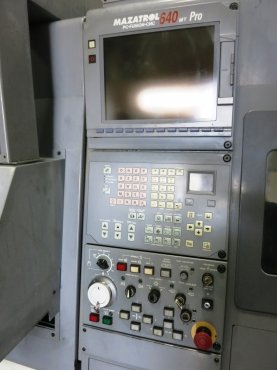

Mazatrol Fusion 640MT Pro CNC Control
Control Options:
Background Path Check EIA/ISO
B-Axis Angle Positioning Turning
Mullti ToolHolder/Flash Tool
Shape Comp
2nd Auxi Functions
Y-Axis Control
Synchro Mill Tapping
Direct DWG Size Imput
3
Stock 1
3 2 3
SERIAL NUMBER 4 NEW 5
EUIPPED WITH: (Cont.)
Control Options: Cont.
User Macro, 600 Macro Variables, User macro Interrupt
Work Coordinates Select
Polar Coordinates Input
Cylindrical Interporation
Tool Center Point Control
Simultaneous 5-Axis Control
EIA Helical Interporation & EIA Coordinate Rotation
B-Axis Control
Enhanced Y-Axis Mazatrol (Face 1 and Face 2)
Rotary-Axis Submicron
EIA Helical Tap
Sub C-Axis Control
Rotary-Axis Control
Rotary-Axis Shape Comp & 2nd Turret Mazatrol
KM 63 Type tooling (Upper turret)
Coolant through milling head (up-turret)
1 KG Flood Coolant (lower turret), 2nd Spindle C-Axis 0.0001 degree increment
40 KM-Tool Magazine, B-Axis index 5 degree (coupling clamp)

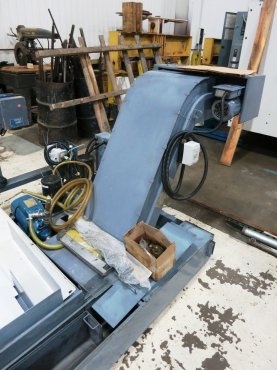

Chip Conveyor side disposal (hinge type) 40"
Auto chuck Jaws open/close(1 & 2 Spindle)
Operator door interlock with lock-switch
10" Thru Hole chuck B-210
8" Thru Hole Chuck B-208A615, 3.5" FDD Unit
Y-Axis Control, Hyd. Pressure Interlock
213 PSI Thru/Flood coolant (upper turret)/71 PSI Lower
C-Axis 0.0001 deg.Incr.(1st spindle) B-Axis 0.0001 Deg. Incr N/A Contouring Lower 9 Position drum turret, Automatic tool eye Chuck Open/Close confirm (1 & 2 Spindle) Video https://www.youtube.com/watch?v=8nrymIIICwQ


Serial Number
165243 Year
2003 Location
PROSPECT HEIGHTS, IL

-
