Description:

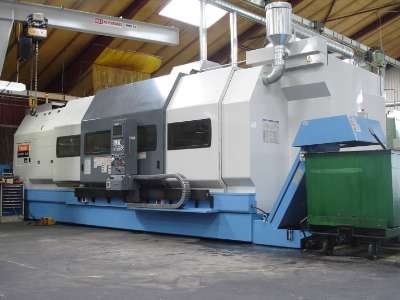

USED MAZAK MODEL INTEGREX 70YB x 3000 5-AXIS CNC MILL-TURN CENTRE WITH Y / B-AXIS MILLING / TURNING / BORING HEAD, 80 STATION TOOLCHANGER, SMW SLU-5 HYDRAULIC STEADY REST, TAILSTOCK AND FITTED WITH MAZATROL PC FUSION 640-MT CONTROL SYSTEM.
Specifications:
Technical Data: WITH Y / B-AXIS MILLING / TURNING / BORING HEAD, 80 STATION TOOLCHANGER, SMW SLU-5 HYDRAULIC STEADY REST, TAILSTOCK AND FITTED WITH MAZATROL PC FUSION 640-MT CONTROL SYSTEM.
MAX. SWING / MACHINING DIAMETER 915 MM , MAX. SWING OVER CARRIAGE 770 MM, MAX. MACHINING LENGTH 3005 MM, Y AXIS STROKE +/- 130MM ,B AXIS STROKE (0,001°) TBA ,CHUCK SIZE 530 MM ,RAPID TRAVERSE (X / Y / Z) TBA ,SPINDLE SPEED RANGE 2 – 1300 RPM ,MAIN MOTOR POWER 45 / 35 KW ,MILLING SPINDLE POWER 11 KW ,MILLING SPINDLE ROTATION (B AXIS) TBA ,MILLING SPINDLE SPEEDS 18 – 1300 RPM ,TOOL MAGAZINE CAPACITY 80 STATIONS
