incl SMW Autoblock steady rest

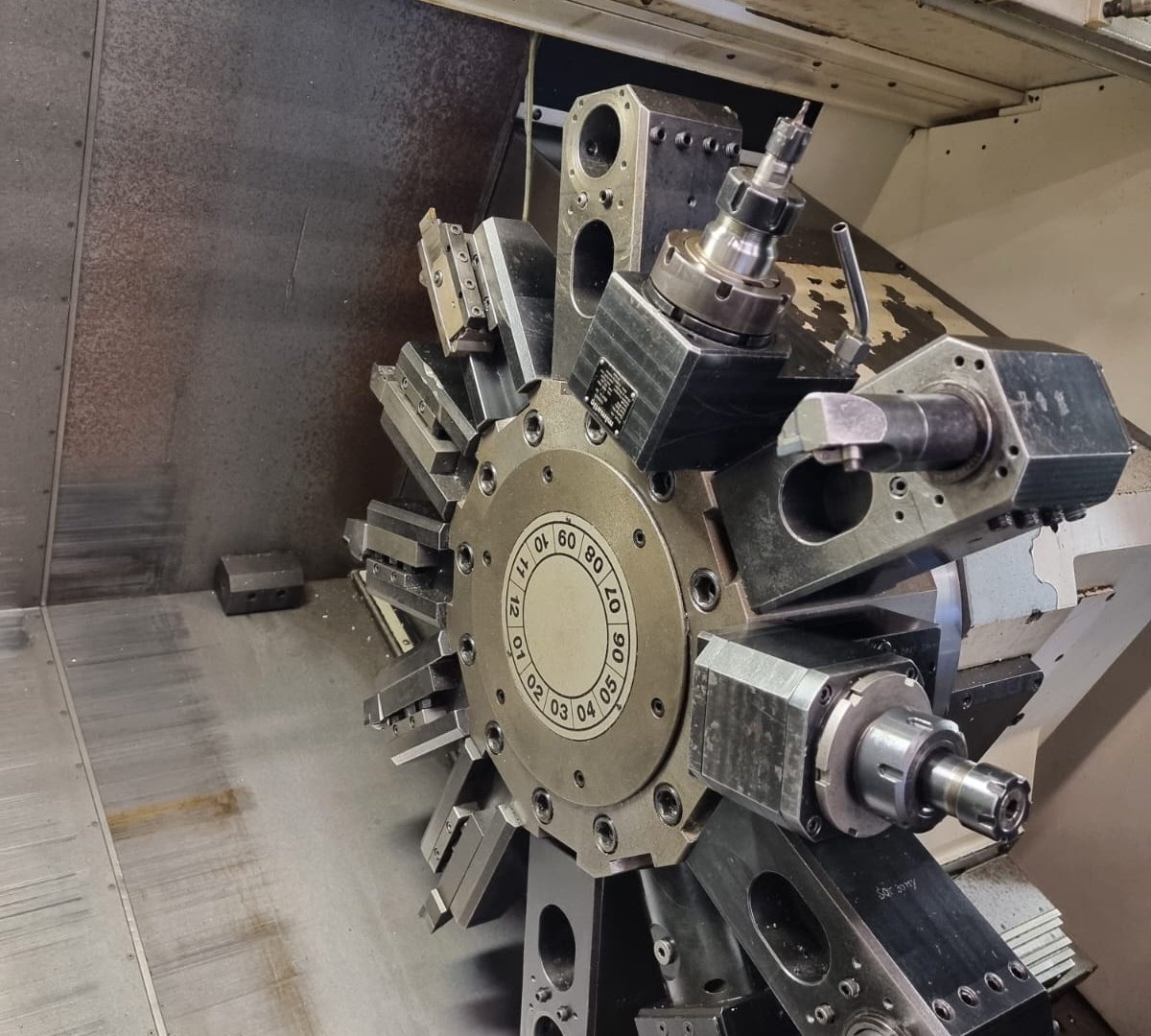

incl. Radial & Axial driven tools
incl. Tool eye

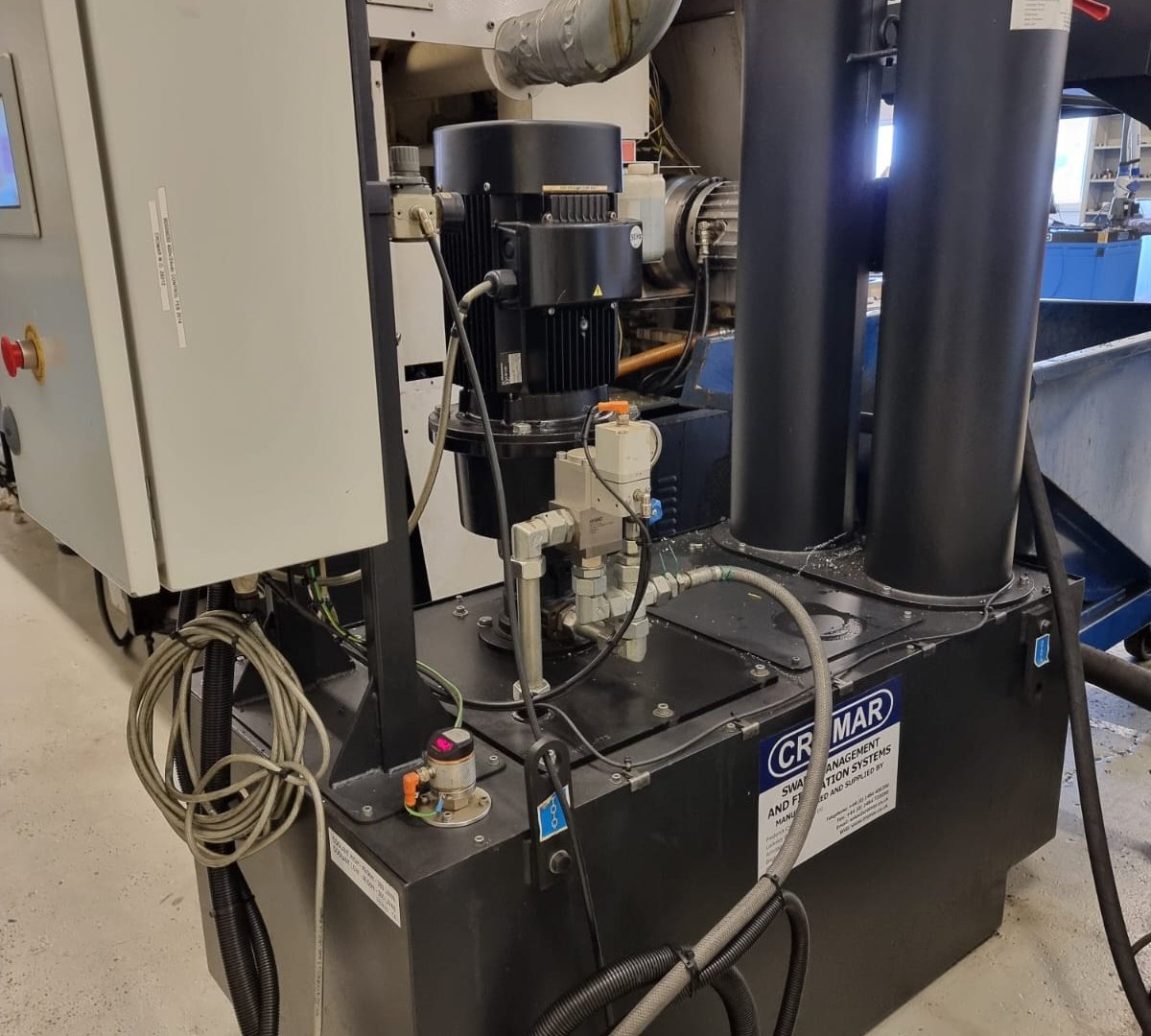

incl. CROMAR Coolant & Chip conveyor
Under power in Germany
Max. turning Ø: 420mm
X-Axis: 260mm
Y-Axis: 100mm
Z-Axis: 2.000mm
Spindle bore: 110mm
Speedrange: 2200Rpm
Spindle power: 30kW
ATC / revolver: 12
Speed live tools: 4000Rpm
Pinole taper: 5Mk
Stroke pinole: 185mm
Length: 7.000 mm
Width: 2.800 mm
Height: 2.800 mm
Weight: 11.300 kg

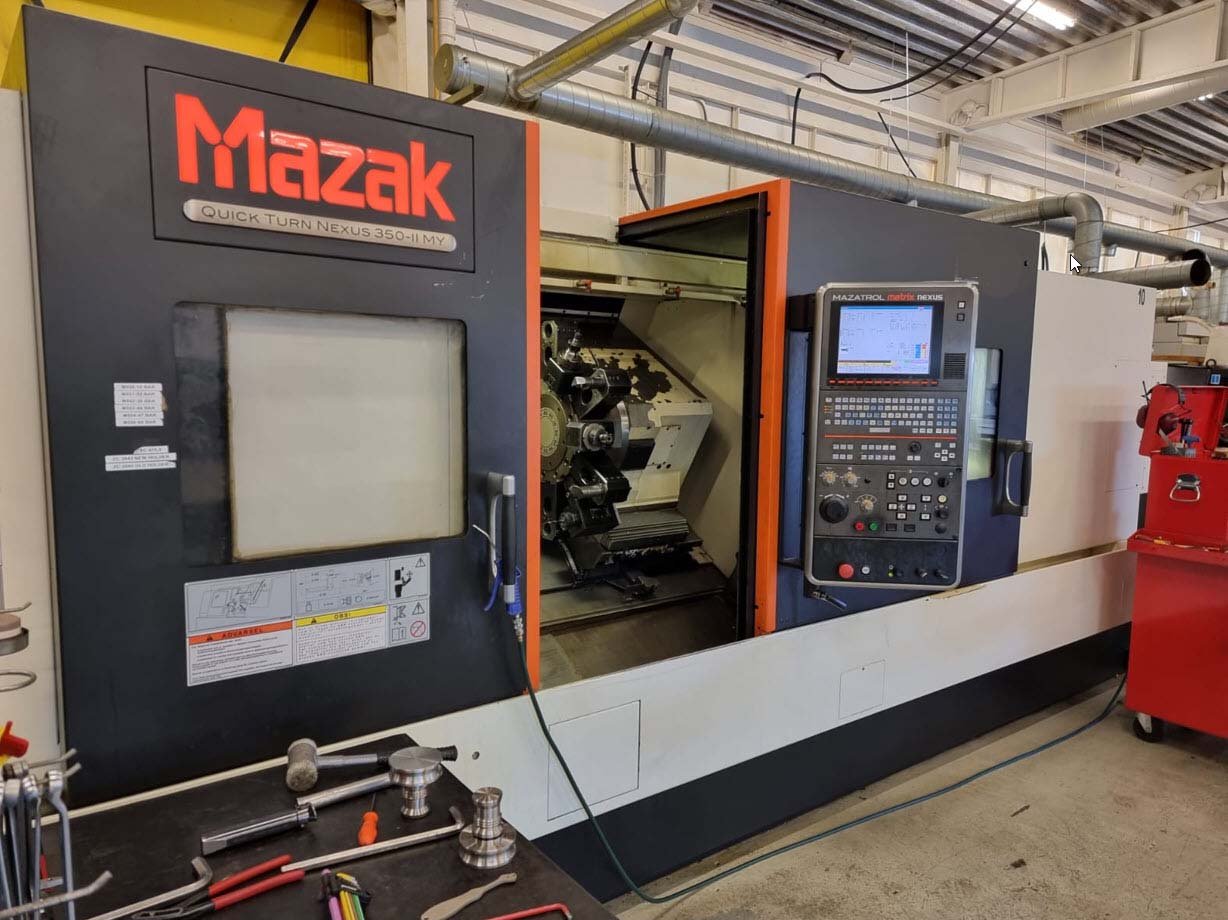

The QUICK TURN NEXUS 350-II MY CNC Turning Center with Multi-Tasking capability brings together advanced technology, productivity and value to deliver exceptional performance for shops large and small.

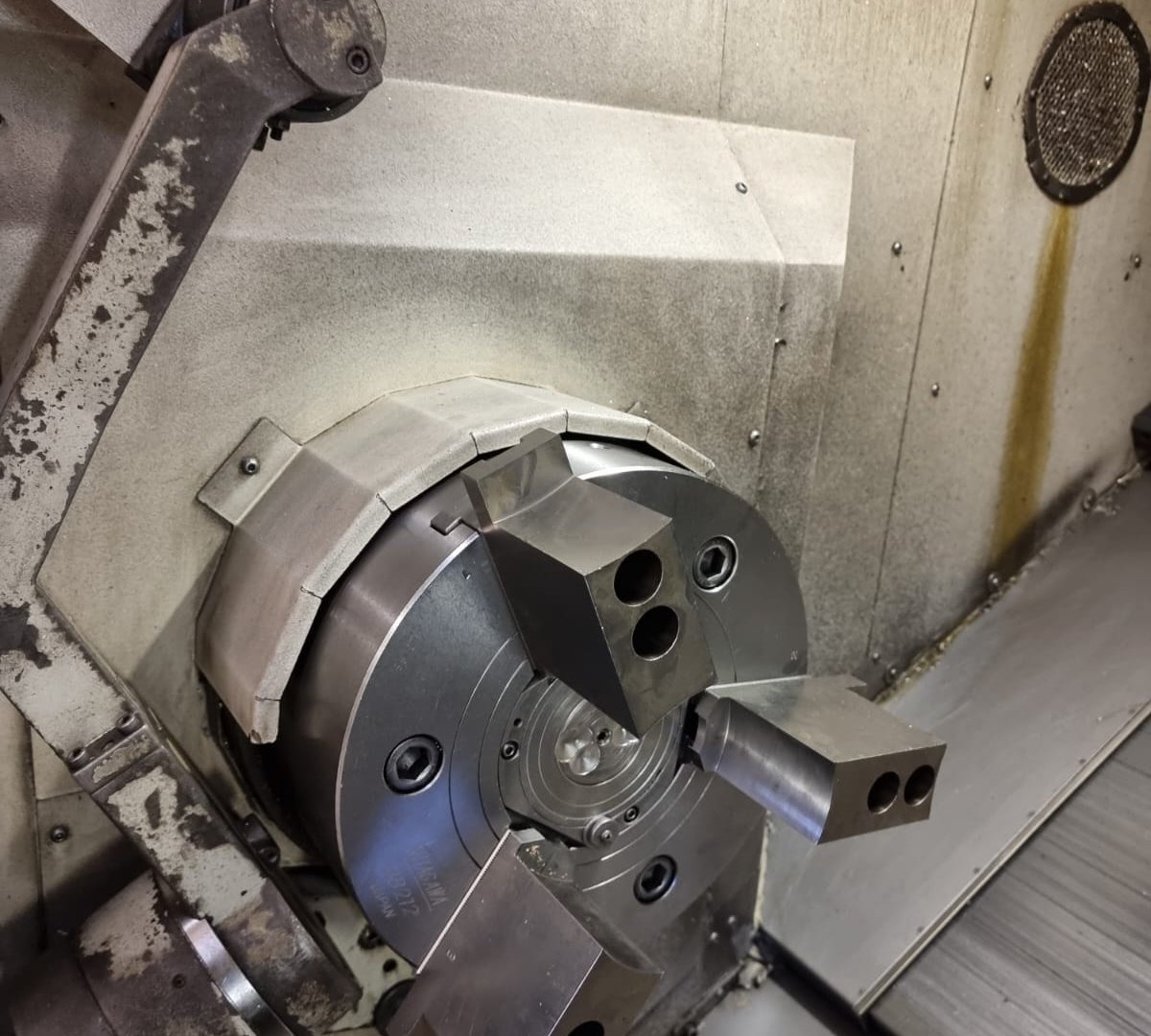

As an (MY) configuration, the machine features milling capability and Y-axis functionality along with a standard through-hole chuck package, and integral turning spindle motor to process a wide range of medium or larger diameter parts in a single setup.For fully automated operations, the machine can be outfitted with a bar feeder or gantry robot loader.

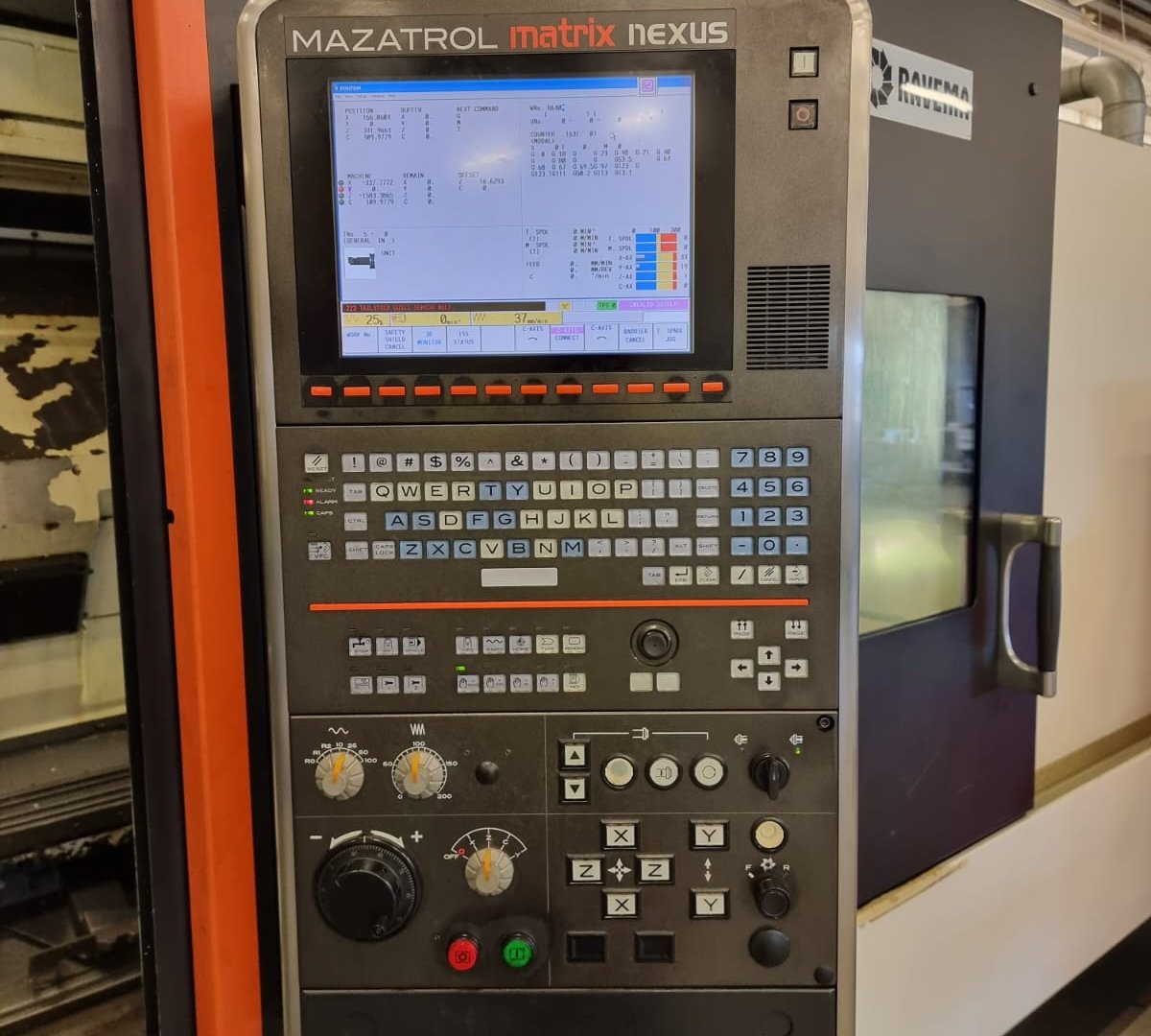

Plus the machine comes equipped with the Matrix Nexus CNC Control. Featuring, both Mazatrol conversational programming and EIA-ISO programming, standard. Any way you look at it, QTN-350MSY provides an excellent way to improve your throughput and profit potential.
Specifications:
CNC turning lathe MAZAK - QUICK TURN NEXUS 350-II MY CNC Lathe Ø 420 x 2.000 mm with C & Y Axis 7004 = Mach4metal
incl SMW Autoblock steady rest
incl. Radial & Axial driven tools
incl. Tool eye
incl. CROMAR Coolant & Chip conveyor
Under power in Germany
Max. turning Ø: 420mm
X-Axis: 260mm
Y-Axis: 100mm
Z-Axis: 2.000mm
Spindle bore: 110mm
Speedrange: 2200Rpm
Spindle power: 30kW
ATC / revolver: 12
Speed live tools: 4000Rpm
Pinole taper: 5Mk
Stroke pinole: 185mm
Length: 7.000 mm
Width: 2.800 mm
Height: 2.800 mm
Weight: 11.300 kg
The QUICK TURN NEXUS 350-II MY CNC Turning Center with Multi-Tasking capability brings together advanced technology, productivity and value to deliver exceptional performance for shops large and small.
As an (MY) configuration, the machine features milling capability and Y-axis functionality along with a standard through-hole chuck package, and integral turning spindle motor to process a wide range of medium or larger diameter parts in a single setup.For fully automated operations, the machine can be outfitted with a bar feeder or gantry robot loader.
Plus the machine comes equipped with the Matrix Nexus CNC Control. Featuring, both Mazatrol conversational programming and EIA-ISO programming, standard. Any way you look at it, QTN-350MSY provides an excellent way to improve your throughput and profit potential.
