Typology: Turn & Mill Complete Machining Centres
Code: 35CL10282014
Make: MORI SEIKI
Model: NTX 1000 SZM
Year: 2013

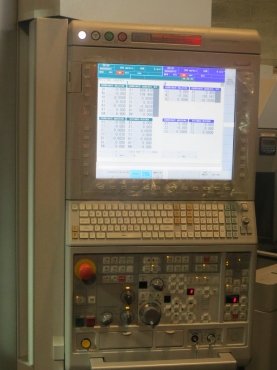

CNC: Mapps IV + Esprit

Max. swing of workpiece: 370 mm
Max turning lenght: 424 mm
Bar work capacity: diam. 65 mm

Travel X axis: 380 mm
Travel Y axis: 105 mm
Travel Z axis: 460 + 155 mm (per ATC)
Swivel range in B-axis: ±120°
Travel X2-axes (Turret 2): 155 mm
Travel Z2-axes (Turret 2): 610 mm
BW-axes: 4 positioning angles

Main spindle speed: 6.000 rpm
Counter spindle speed : 6.000 rpm

Taper hole of rotary tool spindle: Capto c5

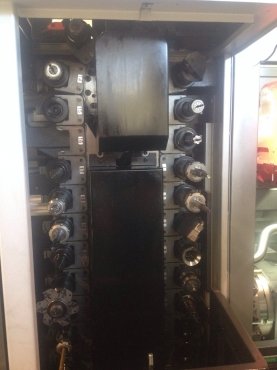

Vertical chain magazine: 76 tool pockets

Turret 2, Number of tool stations: 10
Turret 2, max. rotary tool spindle speed: 6.000 rpm

Rapid traverse rate: X,Y: 40.000 Z: 50.000 mm/min

Note: chip conveyor, loader Top X-Files 365 MONOPIANO, refrigerant interface, charger interface, LS-05 chaeger clips, double pedal, 3 colours lamp, management tool software, machine complete of equipment.
Available Now
Other photos on request

-

High: 2.397 mm - footprint (width x depth): 2.494 x 2.701 mm (excluding chip conveyor)

9.000 Kg
