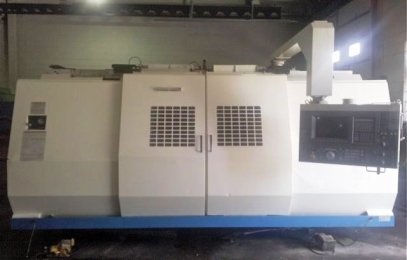

OKUMA LT25M 5 AXIS TWO SPINDLE/TWO TURRET MILLING. LATHE

OKUMA LT25M 5 AXIS
TWO SPINDLE/TWO TURRET MILLING. LATHE
w/OSP7000L CNC CONTROL
S/N: 0044 NEW:1998 SOFTWARE REVISED 2000

SWING OVER BED 25.59"
SWING OVER CARRIAGE 9.84"
DISTANCE BETWEEN CENTERS 57"
MAX. TURNING DIAMETER X LENGTH 11.81" x 11.81"
SPINDLE DIAMETER 4.72"
SPINDLE NOSE JIS A2-8
TAPER HOLE 3.54"
THROUGH SPINDLE HOLE 3.15"
NO OF SPINDLE SPEED RANGES 2
SPINDLE SPEEDS 38-3800 RPM
X AXIS TRAVEL CROSS SLIDE 10.43" UPPER / LOWER TURRET
FEED RATE .00001 TO 39.37 IPR
RAPID FEED RATE 787 IPM
Z AXIS CARRIAGE TRAVEL (A) 22.4"(B) 44.88" (C) 22.44"
FEEDRATE .00001" TO 39.37 IPR
RAPID FEEDRATE 944.89"
C AXIS CONTROLLABLE ANGLE .001 DEGREES
RAPID FEED RATE 200 RPM
TURRET TYPE V12 + V12
NUMBER TOOLS ON EACH TURRET 12
TOOL SIZE OD TURNING 1" ID TURNING 1 1/2"
SPINDLE DRIVE MOTOR 30/20 HP
CROSS SLIDE FEED MOTOR X AXIS 5.3 HP
CARRIAGE FEED Z AXIS 5.3 HP
HYDRAULIC POWER UNIT 5 HP
LUBE PUMP .033 HP
COOLANT PUMPS .33 HP (2)
MACHINE DIMENSIONS 84" TALL X 190" LONG X 83" DEEP
APPROX WEIGHT OF MACHINE 25,000 LBS
EQUIPPED WITH
NC TURRET
B-TURRET M-AXIS
M AXIS ORIENT.
LOAD MONITOR
ANIMATION
MAC MAN
PROFILE GENERAT.
SYNCHRO TAPPING
SPINDLE MAX IL.
PROG, STOP SPECIA.
CYCLE TIMEREDUC
OIL COOLER
CHIP CONVEYOR
COOLANT TANKS
