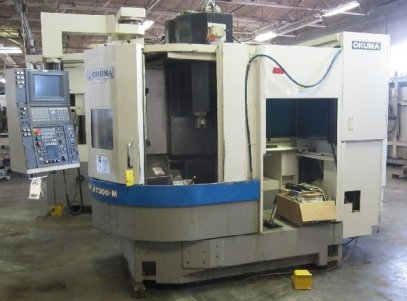

Okuma LVT 300 M CNC Vertical Lathe Integrated C-axis & Mill Function
Specifications:
Okuma LVT 300 M CNC Vertical Lathe
Year 2004
Integrated C-axis & Mill Function
With OSP E100L CNC control
Specifications
Chuck size 8”
Swing over bed 11.02”
Swing over carriage 11.02”
Swing over cross slide 11.02”
Max. turning diameter X length 11.02” X 7.87"
Travel
X 33.27”
Z 12.20””
NC Turret 12 Station
Spindle diameter 3.94”
Spindle nose type A26
Taper hole 2.75”
Through-spindle hole 2.44”
Spindle speed 40-4,000 RPM
Rotary tool spindle speed 45-4,500 RPM
Power 30/20 HP
X – Axis Rapid Feedrate 2,362 IPM
Z - Axis Rapid Feedrate 1,181 IPM
Machine dimensions (L W H) 110.24" x 51.97" x 98.43"
Machine weight 12,320 LBS
Equipped With
Intergraded C-Axis and Mill function
Automatic Lube System
Chip conveyor
