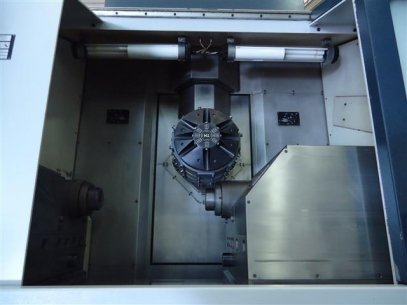

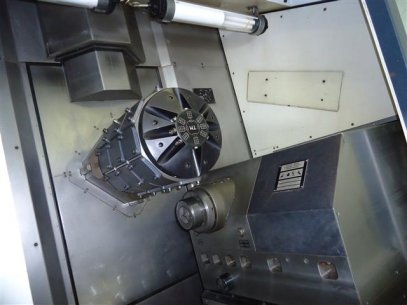

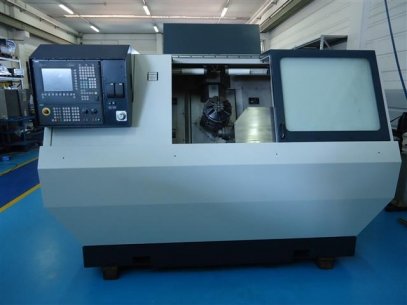

Spinner turret with 24 stations (18 are driven) - sub spindle - 2 x C axis -
Y axis(travel 300 mm) - B axis (indexing 2.5°)
Bar capacity 42 mm - Max turning length 425 mm - Main spindle speed 6000 Rpm -
Main spindle motor power 11-14.75 kW -Power/speed rotating tools 6 kW/9000 Rpm
NEW IN 2007 - FIRST ISTALLATION MARCH 2008 - ONLY 15000 HOURS OF POWER ON
Specifications:
Equipped with :

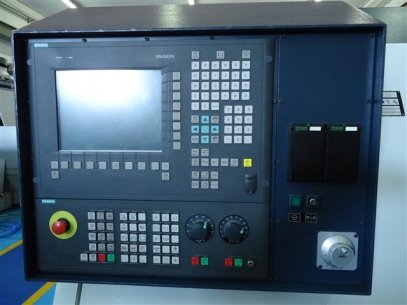

-Siemens 840D-PowerLine Control
-no.12 standard + 12 driven tool holders
-no. 2 collets chuck for collets BA42 type
-no.27 collets
-140 mm-3 jaws Rohm chuck model KFD-HE140
-parts catcher on sub spindle

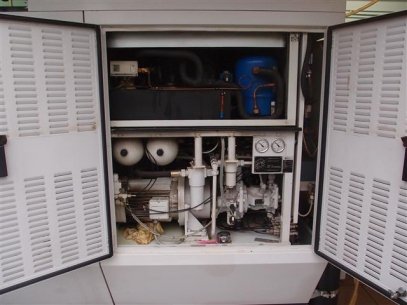

-12.5 bar/30 l high pressure pump

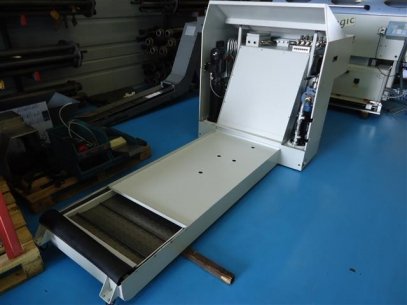

-chip conveyor

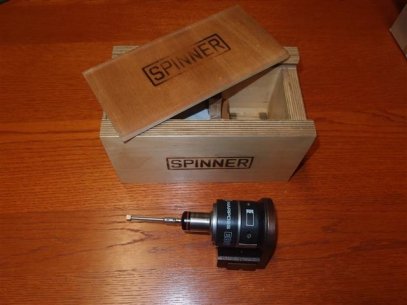

-Marposs E86 probing system
-manuals
-CE declaration
