TRAUB, TNX 65, CNC TURNING AND MILLING, LATHES

Condition:Used
Category:LATHES
Type:CNC TURNING AND MILLING
Manufacturer:TRAUB
Model:TNX 65
YOM:2006
Location:Netherlands, BABBERICH
Price:On request
Stock No:6680

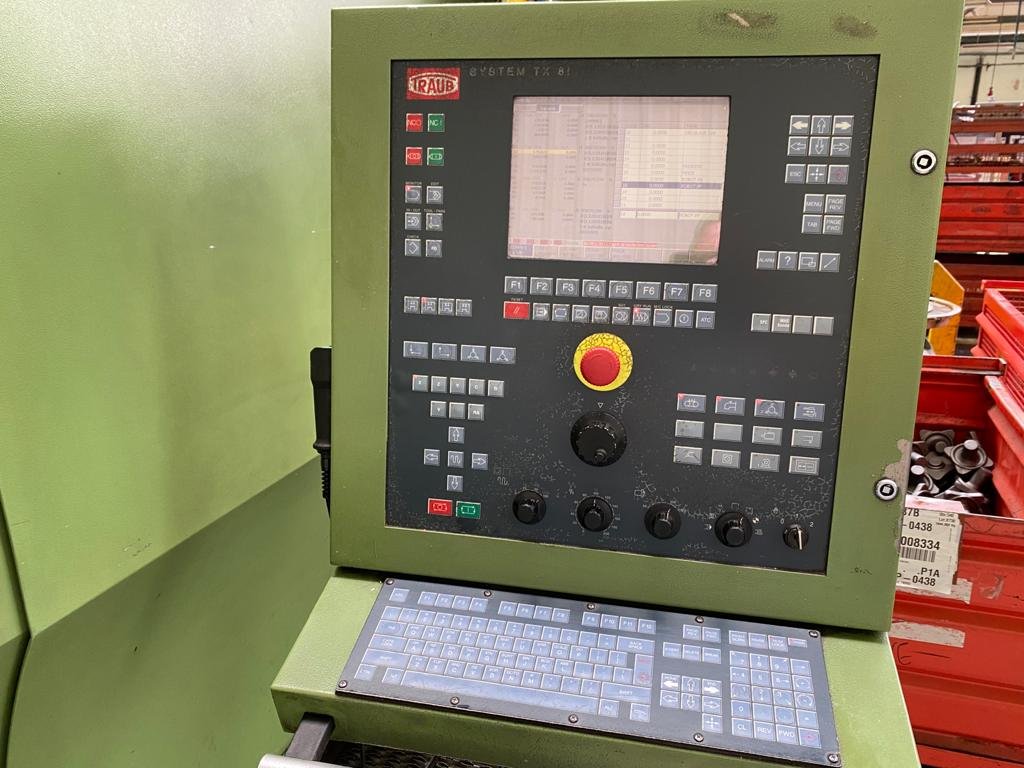

Control:CNC
ID:AS29112

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

TRAUB - TNX 65 CNC Lathe 12 Axis with 3 turrets Y and C-Axis 6680 = Mach4metal
X-Axis: 175mm
Y-Axis: 40mm
Z-Axis: 650mm
Spindle bore: 65mm
Speedrange: 5000Rpm
Spindle power: 24kW
Subspindle speeds:7000Rpm
Subspindle bore: 42mm
Subspindle power:28kW
Length: 6.500 mm
Width: 2.400 mm
Height: 2.400 mm
Weight: 10.000 kg

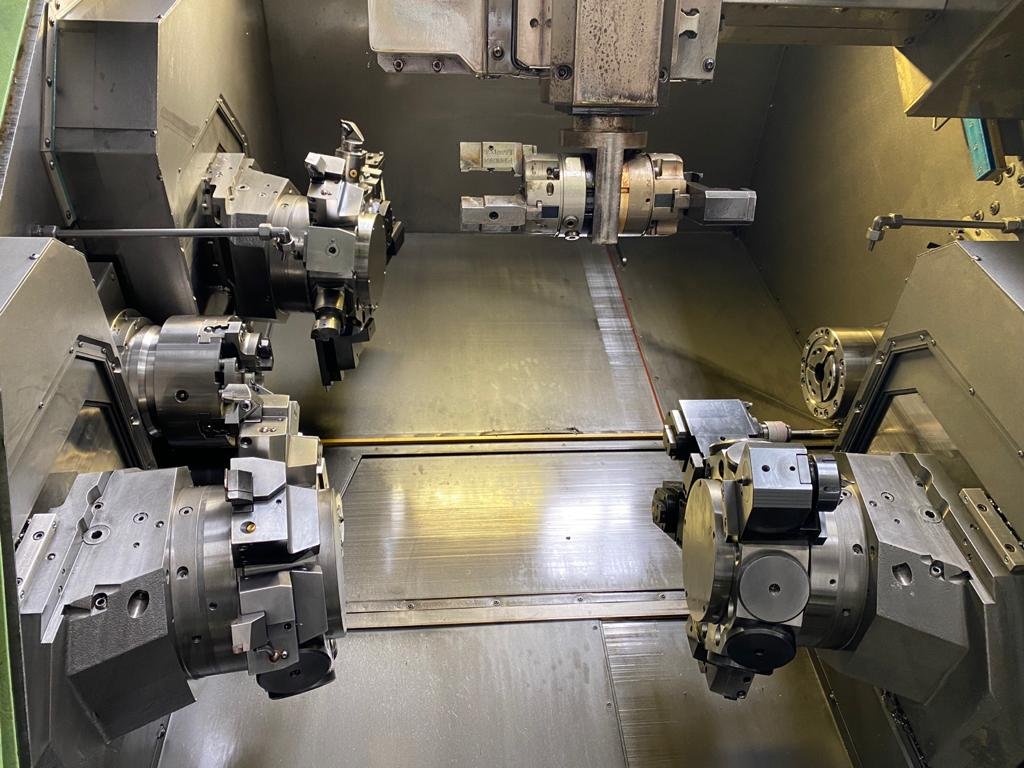

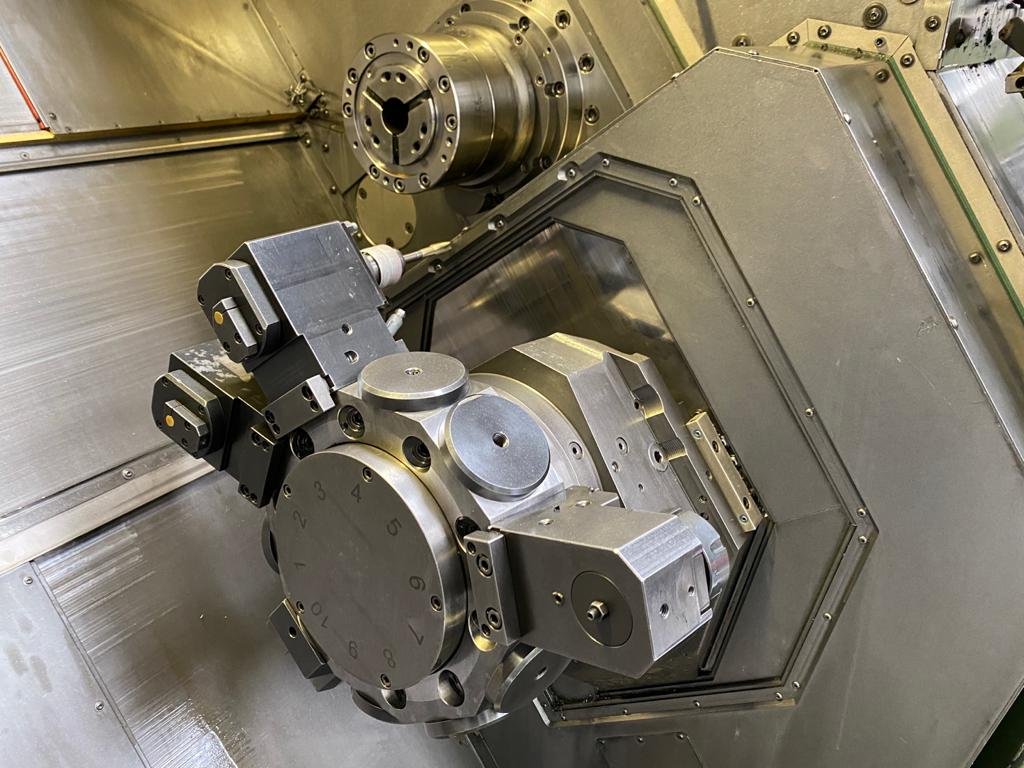

Upper left turret:

Positions 10
Driven station 10
X/Z Stroke 175 / 650
Y Stroke 40
Vdi 30
Speeds 6000 Rpm

Lower right turret

Positions 10
Driven station 10
X/Z Stroke 175 / 650
Y Stroke 40
Vdi 30
Speeds 6000 Rpm
Power 5,5 kW

Lower left turret

Positions 10
Driven station 10
X/Z Stroke 175 / 650
Y Stroke 40
Vdi 30
Speeds 6000 Rpm
Power 5,5 kW

Specifications:

TRAUB - TNX 65 CNC Lathe 12 Axis with 3 turrets Y and C-Axis 6680 = Mach4metal
X-Axis: 175mm
Y-Axis: 40mm
Z-Axis: 650mm
Spindle bore: 65mm
Speedrange: 5000Rpm
Spindle power: 24kW
Subspindle speeds:7000Rpm
Subspindle bore: 42mm
Subspindle power:28kW
Length: 6.500 mm
Width: 2.400 mm
Height: 2.400 mm
Weight: 10.000 kg

Upper left turret:

Positions 10
Driven station 10
X/Z Stroke 175 / 650
Y Stroke 40
Vdi 30
Speeds 6000 Rpm

Lower right turret

Positions 10
Driven station 10
X/Z Stroke 175 / 650
Y Stroke 40
Vdi 30
Speeds 6000 Rpm
Power 5,5 kW

Lower left turret

Positions 10
Driven station 10
X/Z Stroke 175 / 650
Y Stroke 40
Vdi 30
Speeds 6000 Rpm
Power 5,5 kW

Dealer name:

Mach4Metal Netherlands, Babberich
