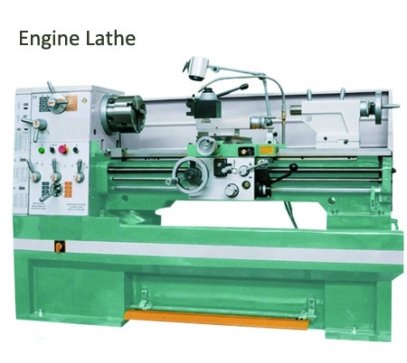

Swing Over Bed
410mm(16")
Swing Over Cross Slide
255mm(10")
Swing In Gap
580 mm(23")
Center Height
205mm(8〞)
Distance between center
1000mm(40〞)
Bed Width
250mm(10〞)
Max section of tool
20x20mm(3/4X3/4”)
Max. travel of cross slide
210mm(8-1/2”)
Spindle Nose
D1-6
Spindle Bore
52mm(2〞)
Taper of Spindle Bore
MT6
Range Of Spindle Speed
16changes 45-1800r/min
Lead screw pitch
4T.P.I.
Inch threads range
2-72T.P.I.(NO.45)
Metric threads range
0.2-14mm(NO.39)
Inch longitudinal feeds range
0.002”-0.067”/Rev(17Nos)
Metric longitudinal feeds range
0.05-1.7mm/Rev(17Nos)
Inch cross fees range
0.001”-0.0335”/Rev(17Nos)
Metric cross fees range
0.025-0.85mm/Rev(17Nos)
Module pitches range
0.3-3.5M.P.(18Nos)
Diametrical pitches range
8-44D.P.(21Nos)
Travel of tailstock sleeve
120mm(4-3/4”)
Dia. of tailstock sleeve
50mm(2”)
Morse taper of tailstock sleeve
MT4
Power of motor
3Kw
Power of coolant pump
4P,3Ph,90W
Overall dimension
1940x850x1320mm
Packing size
2070x940x1600mm
N.W./ G.W.
1550Kg/1760Kg
