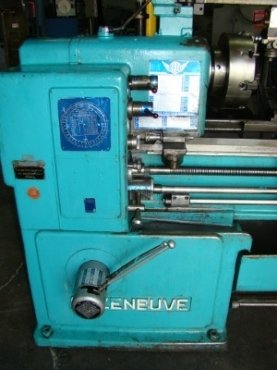

22" x 60" CAZENEUVE, #HB 575, 3J, 4J, SR, coolant, 4WTP, WL, TD, tracer

Model number HB 575

SPECIFICATIONS:
Swing over bed 22.63"
Swing over cross slide 11.81"
Distance between centers 60"
Spindle nose
Spindle bore 2"
Number of spindle speeds 18
Range of spindle speeds 25 to 2000 rpm
Threads--number 73
Inch threads--range 3/8 to 224 tpi
Metric threads--range .0937 to 56 mm
Tailstock spindle travel 5.9"
Tailstock taper of center MT#5
Width of the bed face "
Main spindle motor 12 HP (8.8KW)
Electrics 220/440/3/60
Net weight, approx. 6,000 lbs.

EQUIPPED WITH:
Trav-A-Dial on longitudinal carriage, Handy 10" 3 jaw chuck
Cushman 12" 4 jaw chuck, Coolant system, Worklight,

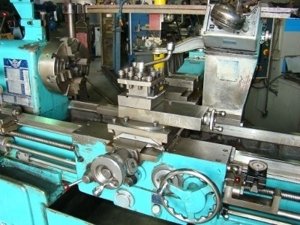

Steady rest, Thread dial, Four (4) way toolopost

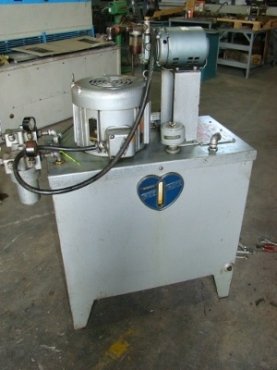

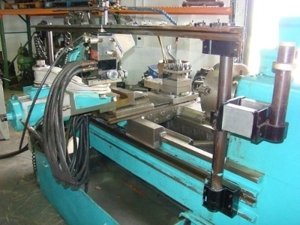

True Trace "Syncro-Turn" hydraulic tracing attachment

6,000 lbs
