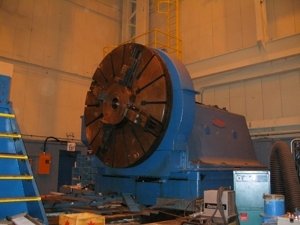

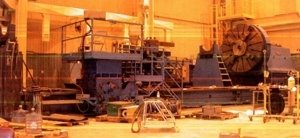

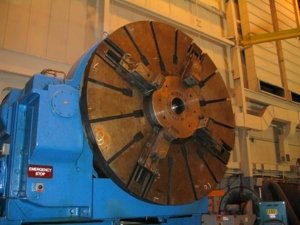

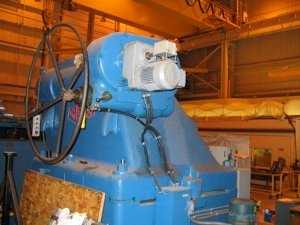

This CRAVEN lathe was CNC retrofitted in 1997.
Controls - Allen Bradley 9 Series
Centre Height - 86.5" (2197mm)
Max Swing - 172" (4368mm)
Max Swing with Saddles - 152" (3860mm)
Max Length of Workpiece between Centre with Holding Block at Tailstock - 50' 9" (15468mm)
Max Length of Workpiece between Centre without Holding Block at Tailstock - 52' (15849mm)
Safe Working Diam at Headstock with jaws in chucking position - 12"-60" (304mm-1524mm)
Max Working Diam at Headstock with jaws in driving plate position - 98" (2489mm)
Max Safe Workpiece Ton Rate with Steadies - 200 Ton
Main Motor Direct Drive Power - 160HP
Machine Speed rating - 0.03RPM-24RPM
Machine feed range - 0.02IPM-20.5IPM (0.0085mm/s - 8.678mm/s)
Specifications:
This CRAVEN lathe was CNC retrofitted in 1997.
Controls - Allen Bradley 9 Series
Centre Height - 86.5" (2197mm)
Max Swing - 172" (4368mm)
Max Swing with Saddles - 152" (3860mm)
Max Length of Workpiece between Centre with Holding Block at Tailstock - 50' 9" (15468mm)
Max Length of Workpiece between Centre without Holding Block at Tailstock - 52' (15849mm)
Safe Working Diam at Headstock with jaws in chucking position - 12"-60" (304mm-1524mm)
Max Working Diam at Headstock with jaws in driving plate position - 98" (2489mm)
Max Safe Workpiece Ton Rate with Steadies - 200 Ton
Main Motor Direct Drive Power - 160HP
Machine Speed rating - 0.03RPM-24RPM
Machine feed range - 0.02IPM-20.5IPM (0.0085mm/s - 8.678mm/s)
