Diameter over bed - 500 mm
Distance between centers - 1500 mm
GAP - 760 mm

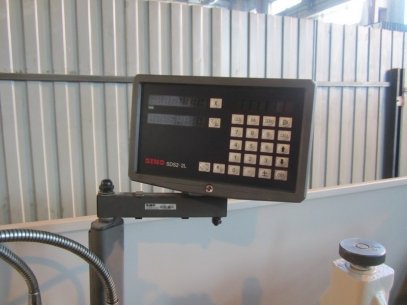

DRO - Taiwan
Specifications:
Distance between centers, mm 1500
Swing Over Bed , mm 500
Swing Over Cross Slide , mm 290
Diameter with GAP, mm 760
BED WIDTH , mm 394
Spindle Speeds (16 position.), rpm 26-2000
Bar Capacity , mm 105
LONGITUDINAL FEEDS, IPM 0.054-1.809
Cross FEEDS, IPM 0.015-0.512
Метрическая резьба, мм 0.5-180(57)
Power main motor , kW 7,5
Overall Dimensions , mm 2800х1120х1800
Weight , kg 2760
