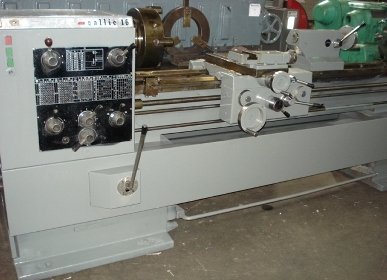

GEAR HEAD TYPE ENGINE LATHE

SWING OVER THE BED 16"
SWING OVER CARRIAGE 9-1/2"
DISTANCE BETWEEN CENTERS 60"
SPINDLE HOLE 1-3/4"
SPEEDS (16) FROM 28 TO 1400 R.P.M.
INCH AND / METRIC / DIAMETRAL / MODULAR
THREADS (METRIC) 0.45 TO 20 MM
THREADS (INCHES) 13/16 TO 48 TPI
TAILSTOCK TAPER #4 MT
TAILSTOCK BARREL TRAVEL 5"
MOTOR 10 HP/220-440/3/60
EQUIPPED WITH: 3& 4-JAW CHUCK, THREADING DIAL,
FOOT BRAKE, CHIP PAN, TAPER ATTACHMENT,
STEADY REST, DRILL CHUCK JACOBS #18, WORK LIGHT.
WEIGHT: 3,700 lbs.
