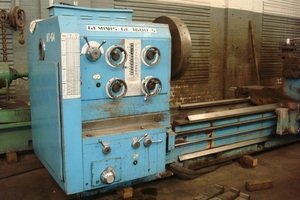

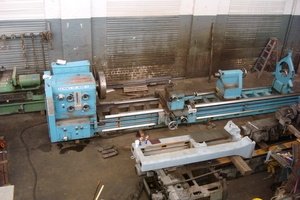

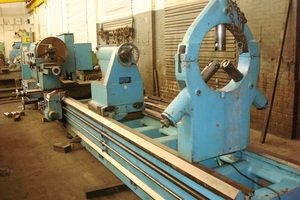

64" /78" Geminis Gap Bed Lathe, Model GE-1600S, Good Condition, can be inspected under power

64"/78" x 240" GEMINIS GAP BED ENGINE LATHE
MODEL: GE-1600-S, NEW: 1970'S
SPECIFICATIONS:
SWING OVER BED ........................ 64"
SWING OVER CARRIAGE.................... 48"
SWING IN REMOVEABLE GAP................ 78"
DISTANCE BETWEEN CENTERS............... 240"
WIDTH OF BED........................... 33-1/2"
SPINDLE BORE........................... 4-1/16"
SPINDLE SPEEDS(24)..................... 3.5 - 710 RPM
LONGITUDINAL FEED RANGE................ .0032 - .189 IPR
CROSS FEED RANGE....................... .0016 - .099 IPR
INCH THREADING RANGE .................. 1/2 - 30 TPI
METRIC THREADING RANGE ................ 1 - 60 MM
TAILSTOCK QUILL DIAMETER............... 6"
TAILSTOCK QUILL TAPER.................. #7MT
TAILSTOCK QUILL TRAVEL................. 11"
APPROXIMATE WEIGHT..................... 35,500 LBS.

EQUIPPED WITH:
- INCH & METRIC THREADING CAPABILITIES
- POWER COMPOUND SLIDE FOR TAPER TURNING
- 4-JAW CHUCK
- STEADY REST
- CENTER FOR TAILSTOCK
- POWER RAPID TRAVERSE
- HARDENED & GROUND BEDWAYS
- 40 HORSE POWER SPINDLE MOTOR

35000
