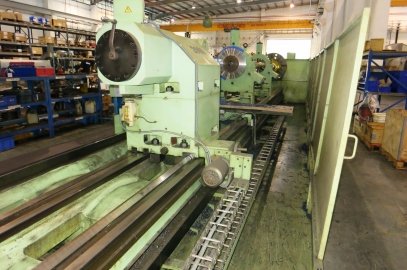

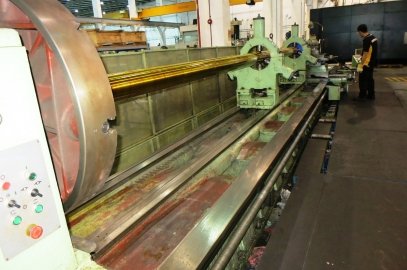

59"X 33' HANKOOK MDL KMIII X 1500 X 10,000 HEAVY DUTY PRECISION ENGINE LATHE




General Specifications
Swing over bed 59"
Swing over carriage 47"
Distance between centers 394" (33')
Spindle bore 4.13" dia.
Spindle nose A2-15
Taper Metric #120
Spindle speed:
Manual 16 steps 6 to 375 RPM
Supporting capacity between centers 26,500 lbs.
Supporting capacity (with 2 steady rests) 39,700 lbs
Carriage:
Tool post (4-tool capacity manual index) H-4 Square
Tool holder size 1 1/4" Square Travels:
Cross slide X axis 34.6"
Upper slide 14.2"
Tool slide 5.5"
Feed & Thread:
Longitudinal feeds (Z-axis) (mm/rev) 56ch.0.031-7
Cross feeds (X-axis) (mm/rev) 42ch.1-56
Inch threading (TPI) 32ch,0.5-28
Module threading (mm) 27ch. 0.5-14
D.P. threading (TPI) 34ch.2-56 Lead
Tailstock:
Tailstock quill diameter 10.6"
Tailstock spindle travel 9.8"
Tailstock center Metric #80 Motor: (Main power AC200/220 volts) Main spindle standard VAC 40/30 HP Rapid feed for carriage VAC 2 HP



Motor Specifications
Not Available



Equipped With

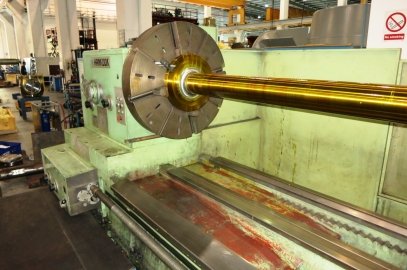

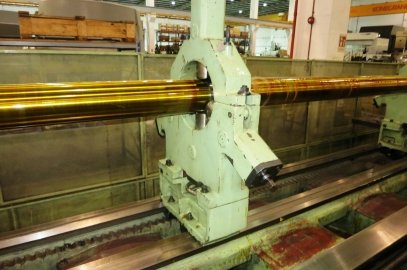

50" 4-Jaw independent chuck, (3) Steady Rests
Inch/Metric threading & Full length digital readouts
NOTE: New Replacement price is approx $550,000.00



Serial Number
40E08815 Year
2009 Location
PROSPECT HEIGHTS, IL

-
