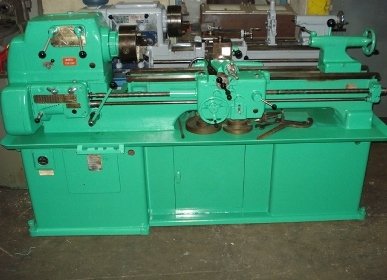

ONE USED "HARRISON" GEAR HEAD GAP TYPE ENGINE LATHE
Specifications:
CAPACITY 13" x 40"
SWING OVER THE GAP 21"
LENGTH OF THE GAP 4-1/2"
SWING OVER THE BED 13"
SWING OVER THE CARRIAGE 9"
DISTANCE BETWEEN CENTERS 40"
SPEEDS (18) 41 TO 1750 R.P.M.
SPINDLE HOLE 1-5/8"
THREADING INCHES
THREADS (INCHES) 4 TO 32 TPI.
TAILSTOCK TAPER #3 MT
TAILSTOCK BARREL TRAVEL 4-3/4"
MOTOR 5 HP/220-440/3/60
EQUIPPED WITH: 3-JAW CHUCK, QUICK CHANGE TOOL POST,
COOLANT SYSTEM, STEADY REST, FOLLOW REST, THREADING DIAL,
MICROMETER CARRIAGE STOP, LIVE CENTER, CHIP PAN & MISC.
