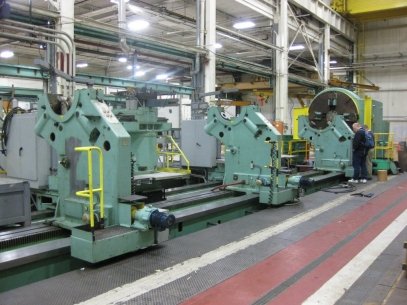

Specifications:
Max Swing over bed 145"
Max Turning diameter w/ bypass 144"
Max Part Diameter 145"
Max part diameter over cross Slide 102"
Max Distance between centers 630"
Max weight of workpiece w/ tailstock support 100 Metric Tons (220,462 lbs)
Max weight of workpiece without tailstock support 30 Metric Tons (66,138 lbs)
Limits on longitudinal feed of support (1st gear) .01" - .62" IPR
Limits on longitudinal feed of support (2nd gear) .002" - .12" IPR
Rapid travel speed of supports & tailstock 141 IPM
Max Tool Size 2.5" x 3.14"
Max displacement of the cutter 488" (Left) / 456" (Right)
Accuracy of processed surfaces 0.00098"
Accuracy of the cross-sectional diameter .000098"
Accuracy of the longitudinal diameter .0025"
Straightness of end face, @ 500mm length .0015"
Surface Roughness 0.00006"
Positional Accuracy Z-axis 0.0098"
Positional Accuracy X-axis 0.0015"
Metric threading range 2-96 mm
Imperial threading range 3.3 - 12 TPI
Spindle Speeds (Variable) up to 100 RPM
Spindle Motor 150 HP
Feed Motors 10 HP
Total power of installed motors 138 kW
Machine footprint 1037" x 226"
Tailstock Diameter 19.68"
Machine height 155"
Machine weight 330,700 lbs
Equipped With:
Retrofitted in 2004 with dual Fanuc 180i-T Controls
4-Way Bed
(2) Carriages with single pinion
(2) 4-Jaw Chucks
Follow Rests & Roller Rests
150HP Spindle Motor
Spare Steady Rest Hard & Roller Points
Part weight load meter on tailstock
Carriage will pass tailstock
Heavy Duty Meehanite Castings
150 HP Spindle Drive 440/3PH/60
