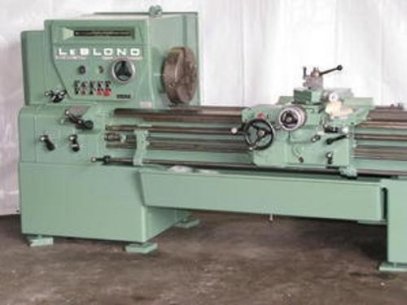

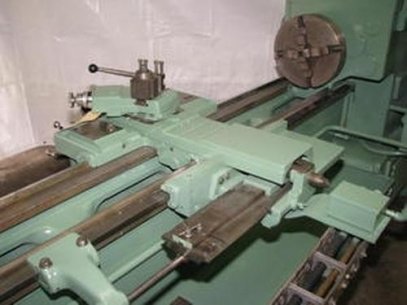

1966 LeBlond EE 18" x 126" Heavy Duty Engine Lathe
Specifications:
Specifications:
LeBlond Heavy Duty Engine Lathe
Model No. 1610 Servo Shift
New 1966
Swing Over Bed Ways: 17-5/8"
Swing Over Cross Slide: 10"
Maximum Distance between Centers: 126"
Spindle Speeds: (27) 20 to 2660 RPM
Spindle Nose: D1-6
Threading Range, Inch: 2 - 360 TPI
Feed Range in Gear Drive: .0034 to .205
Feed Range in Belt Drive: .0011 to .0675
Rapid Traverse on Carriage: 22 Feet per Min.
Rapid Traverse on Cross Slide: 5 5/12 Feet per Min
Diameter of Hole thru Spindle: 1-49/64"
Overall Dimensions: 70" x 204" x 68" Tall
Machine Weight, Approx.: 13,000 lbs.
