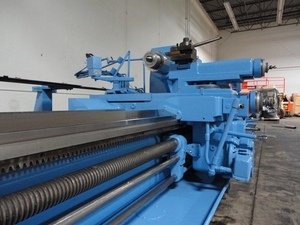

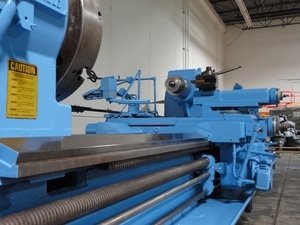

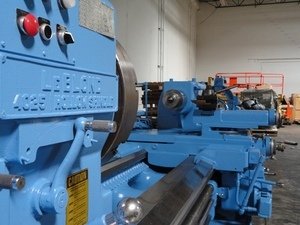

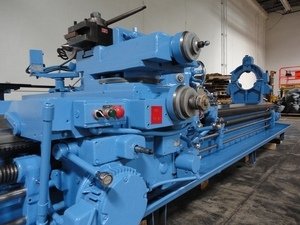

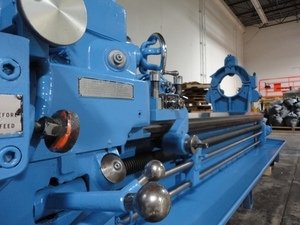

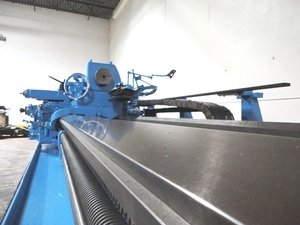

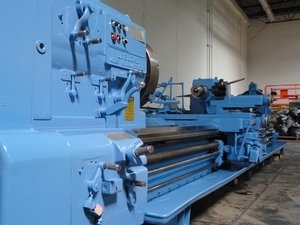

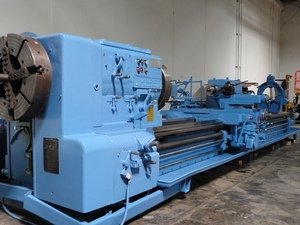

LeBLOND Model NK4025 40" x 180" Hollow Spindle Big Bore Engine Lathe. Complete With: 26" Cushman (4) Jaw Front Mounted Chuck, 26" Cushman (4) Jaw Rear Mounted Chuck, (2) Way Power Rapid Traverse, 12" 3 Point Roller Bearing Steady Rest, Aloris 4 Way Tool Post, Coolant Pump and Piping, Heavy Duty Tailstock, Dial Thread Chasing Attachment, Air Lift Heavy Duty Tailstock (Assisted by Rapid), Scan-O-Matic Hydraulic Tracing Attachment, Manuals and Drawings
Specifications:
LeBLOND Model NK4025 40" x 180" Hollow Spindle Engine Lathe
Swing Over Bed: 40"
Swing Over Cross: 25"
Center Distance: 180"
Spindle Bore: 13"
Feeds/Threads: .004 - .250/ 1 7/16 - 24 TPI
Spindle Speed: 5 - 213 RPM
Main Motor: 30 HP 230/460/3/60
Equipped with:
¯
26" Cushman (4) Jaw Front Mounted Chuck
26" Cushman (4) Jaw Rear Mounted Chuck
(2) Way Power Rapid Traverse

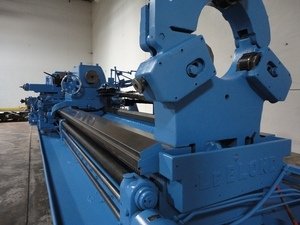

12" 3 Point Roller Bearing Steady Rest
Aloris 4 Way Tool Post
Coolant Pump and Piping
Heavy Duty Tailstock
Dial Thread Chasing Attachment
Air Lift Heavy Duty Tailstock (Assisted by Rapid)
Scan-O-Matic Hydraulic Tracing Attachment
Manuals and Drawings
Approximate Dimensions: 340"(LR) X 105"(FB) X 64"(H)
Approximate Weight: 31,000 Lbs.
