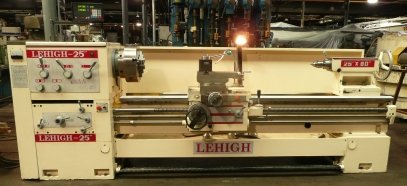

Lehigh 25"x80" Gap Bed Lathe

Machine Capacity

Swing over bed
25" (630 mm)
Swing over cross slide
15" (380 mm)
Swing in gap
33" (830 mm)
Distance between centers
80"
Headstock and Spindle
Spindle hole
4-7/8" (120 mm)
Spindle nose
D1-11
Spindle center taper
MT #6
Spindle speed
12-1000 RPM
Feeds and Threads
Longitudinal feeds
0.0033"-0.063" / rev.
Cross feeds
0.0011"-0.021" /rev.
Inch threads (30 kinds)
2-24 TPI
Metric threads (57 kinds)
1- 192 mm
Modular threads (40 kinds)
0.25 - 48 mm
DP threads (37 kinds)
7 - 96 D. P.
Carriage and Cross Slide
Rapid longitudinal travel
160 IPM
Rapid cross travel
80 IPM
Travel of cross slide
14"
Travel of the compound rest
6.5"
Tailstock
Quill diameter
4" (100 mm)
Quill travel
10" (250 mm)
Tailstock center
MT #5
Motors
Main drive motor
AC (15 HP/10 HP)/220V
Rapid motor
AC 1/3 HP
Coolant pump
AC 1/8 HP
