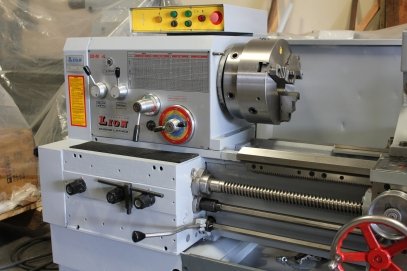

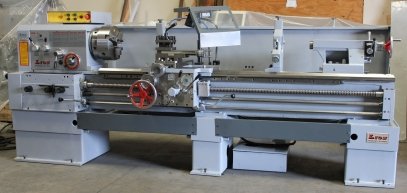

1998 Lion 20-M-4 Engine Lathe 20" x 78" with 4" Spindle Bore

Specifications:

Swing Over Bed: 20"
Swing Over Cross Slide: 12"
Swing In The Gap: 25"

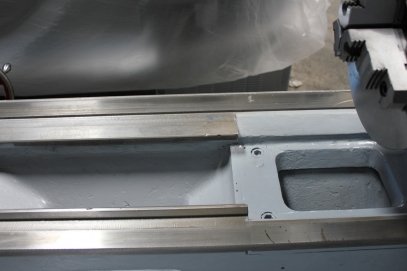

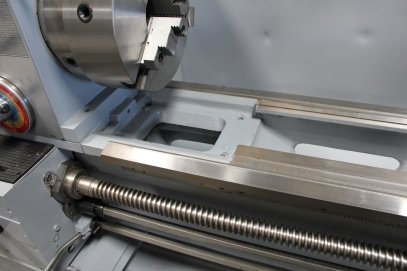

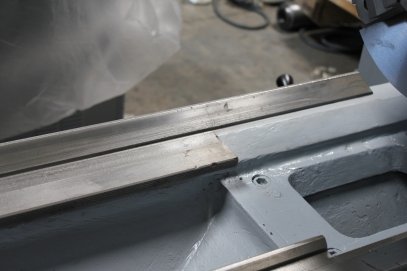

Length In Gap From Face Plate: 8"

Distance Between Centers: 78"

Spindle Nose: D1-11

Spindle Bore: 4"

Number Of Spindle Speeds: 16

Range Of Speeds: 8-1400RPM
Number Of Threads: 72
Range Of Inch Threads: 120 - 1/4 TPI
Range Of Metric Threads: .25 - 120

Number Of Feeds: 72
Lead Screw Diameter: 1 3/4"
Lead Screw Pitch: 2 TPI
Max. Traverse Of Cross Slide: 10"

Tailstock Quill Diameter: 2 3/4"

Tailstock Quill Taper Bore: 5 MT

Maximum Quill Stroke: 7"
Width Of Bed: 14"
Motor Power: 10 HP
Electrics: 3 Phase - 220V
Weight (Approximate): 6,000 LBS.

Equipped With:

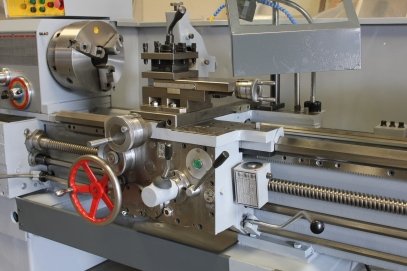

4-Way Tool Post
Coolant Pump and Tank
Thread Chasing Dial
Chip Tray
4-Way Rapid Traverse
Taper Turning Attachment
12" 3-Jaw Chuck
6" Steady Rest
Follow Rest
Splash Guard
Chip Guard
