RD&D CNC Gap Bed Lathe

RD&D Gap Bed CNC Lathe

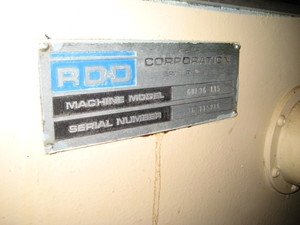

S/N 36-115286 Model # GBL 36-115



MACHINE SPECIFICATIONS:

Diameter Swing: 64” Over Bed
Spindle Thru Hole: 16”
Chuck Diameter: 24”/31-7/8”/58”
Maximum Workpiece Weight: 10,000 Lbs.
Maximum Workpiece Length: 144” (12’)
Swing Over Cross-slide: 36”
Maximum Speed in ‘High” Gear Range: 400 RPM
Developed Chuck Torque @ 400 RPM: 9400 Ft. Lbs.
Maximum Speed in ‘Low’ Gear Range: 107 RPM
Developed Chuck Torque @ 107 RPM: 35,400 Ft. Lbs.
Maximum Machine Torque is: 141,800 Ft. Lbs @ 26.7 RPM
Horsepower Range: 60 HP @ 26.7-400 Spindle RPM
Overall Machine Length: 410” (34’-2-1/2”)
Overall Machine Height (with guards): 140-1/2” (11’-8-1/2”)
Overall Machine Width (with guards): 146” (12’-2”)
Overall Machine Weight: 148,000 Lbs.

410" X 140" X 146

148000
