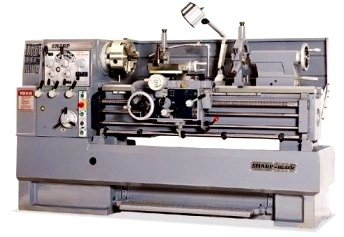

NEW SHARP 16" x 40" HI-SPEED PRECISION LATHE

d MODEL: 1640LV w/Digital Variable Speed

CAPACITY
Swing over bed: 16"
Swing over crosslide: 8-3/4"
Swing over gap, width: 24-3/8", 10-3/4"
Distance between centers: 40"

HEADSTOCK
Spindle nose type: D1-8 Camlock
Spindle bore: 3-1/16"
Spindle Speeds (Inf. Variable): 20 - 2,000 RPM
Taper of spindle bore: MT #6
Taper of center: MT #4

THREADS & FEEDS
Longitudinal feeds - in/rev (18): 0.002 - .032"
Crossfeed - in/rev (12):0.001 - 0094"
Inch threads (36): 4 - 56 TPI
Metric & module threads (17): 0.5 - 7mm
D.P. threads (36): 4 - 56mm
Leadscrew pitch, diameter: 4 TPI, 1-3/8"

CARRIAGE
Crosslide travel: 8.7"
Compound rest travel: 4.9"
Compound width: 4.5"

BED
Bed length: 59"
Bed width: 11-3/4"

TAILSTOCK
Quill travel (graduated): 5"
Quill diameter: 2-1/4"
Quill taper: MT #4

GENERAL
7.5 HP Spindle motor (220V, 60 Cycle, 3 Phase)
Requires a transformer for 440 volt operation
Net weight (approximately): 3,600 lbs

STANDARD EQUIPMENT
10" 3-jaw chuck, coolant system, american toolpost, halogen work
light, 16" face plate, steady rest (6"), longitudinal carriage stops,
tool kit, splash guard, & follow rest.

OPTIONAL EQUIPMENT (Call for prices)
Follow rest, digital readout, tracer, taper attachment, micrometer
carriage stop, quick-change tool holder, & 5C collet closer.
