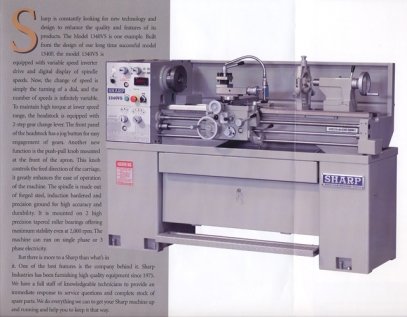

13" Swing 40" Centers Sharp 1340VS ENGINE LATHE, Digital Variable Speed

FEATURES
- variable speed spindle drive with digital display
- hi-low gear shift for spindle speed, range from 40 - 2,000 RPM
- hardened & ground gears in headstock
- directional control of carriage feed in front of apron for easy operation
- jog button for easy engagement of gears
- induction hardened & ground bedways for rigid structure
- spindle supported by 2 high precision tapered roller bearings
- carriage equipped with overload clutch to protect gears & screws
- available for 3 phase or single phase electrics operation
- electrically activated foot brake for quick stopping action
- built-in cabinet for tools storage

CAPACITY
Swing over bed: 13"
Swing over crosslide: 8-5/16"
Swing over gap, width: 18-1/2"
Width of bed: 7-1/2"
Distance between centers: 40"

HEADSTOCK
Spindle nose type: D1-4 Camlock
Spindle bore: 1-9/16"
Spindle Speeds (Inf. Variable): 40 - 2,000 RPM
Taper of spindle bore: MT #5

THREADS & FEEDS
Longitudinal feeds - inch per rev (40): 0.0016 - .0046
Cross feeds - in per rev (40): 0.0005 - 0.015
Inch threads (39): 2 - 56 TPI
Metric threads (42): 0.5 - 12mm
Leadscrew pitch, diameter: 8 TPI, 1"

CARRIAGE
Cross slide travel: 6-3/4"
Compound travel: 3-1/2"
Apron width: 11"
Cross slide width: 4.5"

BED
Bed length: 64"
Bed width: 7-1/2"

TAILSTOCK
Quill travel (graduated): 4"
Quill diameter: 1-9/16"
Quill taper: MT #3

GENERAL
Motor: 3 hp (220 Volts, Your Choice of Single Phase or 3 Phase)
440 Volt Operation requires an optional transformer
Net weight (approximately): 1,580 lbs

STANDARD EQUIPMENT
coolant system, 4-way toolpost, steady rest, thread dial, foot
brake, center sleeve (MT #5 x #3), dead centers (MT #3) tool kit,
removable gap block & splash guard.

OPTIONAL EQUIPMENT (Call for prices)
Follow rest, digital readout system, taper attachment, micrometer
carriage stop, 3-jaw scroll chuck (8"), 4-jaw chuck (8"), face plate
(12"), single toolpost, live center (MT #3), & drill chuck.
