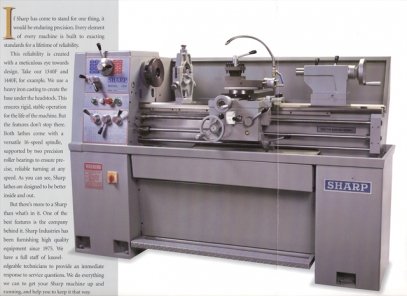

14" Swing 40" Centers Sharp 1440V ENGINE LATHE, Digital Variable Speed

FEATURES
- variable speed spindle drive with digital display
- hi-low gear shift for spindle speed, range from 30 - 2,200 RPM
- hardened & ground gears in headstock
- jog button for easy engagement of gears
- induction hardened & ground bedways for rigid structure
- spindle supported by 2 high precision tapered roller bearings
- carriage equipped with overload clutch to protect gears & screws
- available for 3 phase or single phase electrics operation
- electrically activated foot brake for quick stopping action
- built-in cabinet for tools storage

CAPACITY
Swing over bed: 14"
Swing over crosslide: 8-5/8"
Swing over gap, width: 20"
Width of bed: 8-1/2"
Distance between centers: 40"

HEADSTOCK
Spindle nose type: D1-4 Camlock
Spindle bore: 1-1/2"
Spindle Speeds: 30 - 2,200 RPM
Taper of spindle bore: MT #5

THREADS & FEEDS
Longitudinal feeds - inch per rev (40): 0.0012 - .0294"
Cross feeds - in/rev (40): 0.0003 - 0.01"
Inch threads (40): 4 - 112 TPI
Metric threads (22): 0.45 - 7.5mm
Leadscrew pitch, diameter: 8 TPI, 7/8"

CARRIAGE
Saddle width: 13-1/4"
Apron width: 11"
Cross slide width: 6-3/4"
Cross slide travel: 7"
Compound rest travel: 4"
Compound width x length: 3-1/2 x 8-1/2

BED
Bed length: 66"
Bed width: 8-1/8"

TAILSTOCK
Quill travel (graduated): 4-1/2"
Quill diameter: 1-3/4"
Quill taper: MT #3

GENERAL
Motor: 3 hp (220 Volts, Your Choice of Single Phase or 3 Phase)
440 Volt Operation requires an optional transformer
Net weight (approximately): 1,650 lbs

STANDARD EQUIPMENT
coolant system, 4-way toolpost, steady rest, thread dial, foot
brake, center sleeve (MT #5 x #3), dead centers (MT #3) tool kit,
removable gap block & splash guard.

OPTIONAL EQUIPMENT (Call for prices)
Follow rest, digital readout system, taper attachment, micrometer
carriage stop, 3-jaw scroll chuck (8"), 4-jaw chuck (8"), face plate
(12"), single toolpost, live center (MT #3), & drill chuck.
