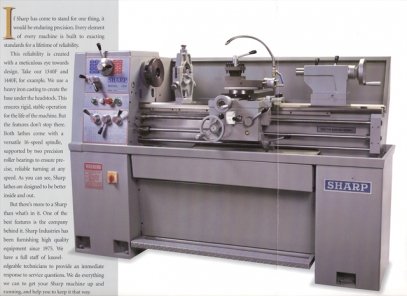

14" Swing 40" Centers Sharp 1440F ENGINE LATHE, 16 Speed Headstock

FEATURES
- hardened & ground bed ways
- jog button for easy engagement of gears & inching spindle
- larger compound, tailstock & apron than competitive models
allows heavier cutting with less vibration
- 16 speed ("F" models), all geared headstock housed inside a
sturdy cast iron base
- quick-change gearbox offers wide range of threads

CAPACITY
Swing over bed: 14"
Swing over crosslide: 8-5/8"
Swing over gap, width: 20"
Width of bed: 8-1/2"
Distance between centers: 40"

HEADSTOCK
Spindle nose type: D1-4 Camlock
Spindle bore: 1-1/2"
Spindle Speeds: 45 - 1,800 RPM (16 speeds)
Taper of spindle bore: MT #5

THREADS & FEEDS
Longitudinal feeds - inch per rev (40): 0.0012 - .0294"
Cross feeds - in/rev (40): 0.0003 - 0.01"
Inch threads (40): 4 - 112 TPI
Metric threads (22): 0.45 - 7.5mm
Leadscrew pitch, diameter: 8 TPI, 7/8"

CARRIAGE
Saddle width: 13-1/4"
Apron width: 11"
Cross slide width: 6-3/4"
Cross slide travel: 7"
Compound rest travel: 4"
Compound width x length: 3-1/2 x 8-1/2

BED
Bed length: 66"
Bed width: 8-1/8"

TAILSTOCK
Quill travel (graduated): 4-1/2"
Quill diameter: 1-3/4"
Quill taper: MT #3

GENERAL
Spindle motor: 3 hp
SPECIFY: 220V or 440V, 3 Ph, 60 Hz
Net weight (approximately): 1,650 lbs

STANDARD EQUIPMENT
coolant system, 4-way toolpost, steady rest, thread dial, foot
brake, center sleeve (MT #5 x #3), dead centers (MT #3) tool kit,
removable gap block & splash guard.

OPTIONAL EQUIPMENT (Call for prices)
Follow rest, digital readout system, taper attachment, micrometer
carriage stop, 3-jaw scroll chuck (8"), 4-jaw chuck (8"), face plate
(12"), single toolpost, live center (MT #3), & drill chuck.
