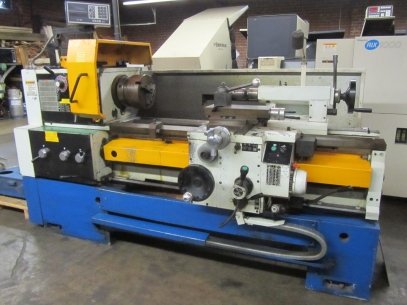

2006 Summit 16" x 40" Gap Engine Lathe 25" Gap

2006 Summit 16" x 40" Precision Engine Lathe :

SPECIFICATIONS:

Swing Over Bed- 16"
Swing Over Cross Slide- 9-3/8"
Swing In Removeable Gap- 25-1/8"
Length of Removeable Gap- 15"
Length of Gap in Front of Faceplate- 8-3/8"
Workpiece Weight Capacity Between Centers w/ Steady Rest- 5,000 Lbs.
Spindle Speeds (12)- 20 to 2000 RPM
Hole Thru Spindle- 3"
Spindle Nose Type- D-1-8"
Headstock Center- # 6MT
Thread Range- Inch (64)- 1/4 to 60 TPI
-Metric (64)- .5 to 120
Longitudinal Feeds (124)- .00185 to .44474"
Cross Feeds (124)- .0007 to .22237"
Cross Slide Travel- 11-3/8"
Compound Rest Travel- 5-3/8"
Tailstock Taper- #5 MT
Tailstock Quill Travel- 9-1/2"

EQUIPPED WITH:

9-1/2" 3-Jaw Universal Chuck
15-1/2" 4-Jaw Independent Chuck

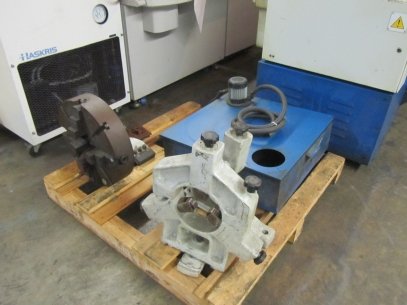

Roller Type Steady Rest- 1/2" to 6-1/8" Capacity
Follower Rest- 1/2" to 7-7/8" Capacity
Taper Attachment

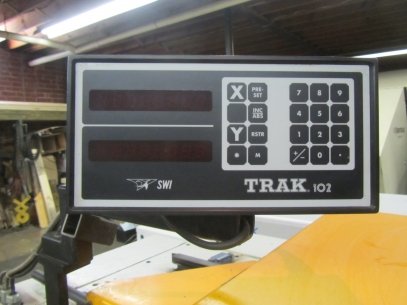

Trak Model 102 2-Axis Digital Readout System
Quick Change Toolholder
Jacobs Key Chuck for Tailstock
Coolant System
Chip Pans & Rear Splash Guard
Hardened & Ground Bedways

Motor and Controls- 10 HP 3/60/220-440 Volt
Coolant Motor and Controls- 1/4 HP 3/60/220-440 Volt

Floor Space: 101" L-R x 47" F-B x 60" High
Weight: 2,900 Lbs. (Approx.)
