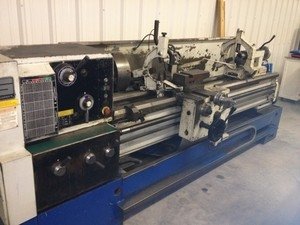

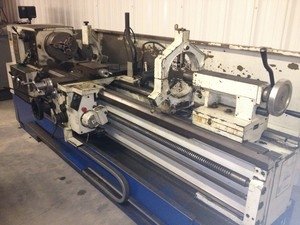

20" x 80" Summit Removable Gap Bed Lathe, 27-5/8 Gap Swing, Inch/Metric, Power Rapid Traverse, 4-1/8" Spindle Hole
Specifications:
20" x 80" SUMMIT Gap Bed Engine Lathe
Model: 20-4
Condition: Very Good
Specifications:
Swing over Ways 20-1/4"
Swing Over The Cross Slide 11-7/8"
Swing Over Gap 27-5/8"
Lengh of Gap 15"
Length Of Gap In front Of Face Plate 8-3/8"
Distance Between Centers 80"
Spindle Speeds 11.5 to 1500 RPM

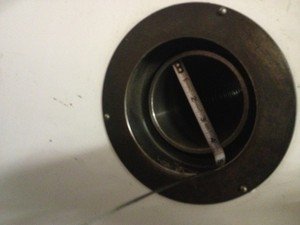

Spindle Hole 4-1/8"
Threads Per Inch (64) 1/4 - 60 TPI
Metric Threads (64) .5 to 120
Module Threads (64) .125 to 30
Feeds Long. (124) .00145 to .44474
Tailstock Taper #5 MT
Main Motor 10 HP 230/460/3
Dimensions 154" x 48" x 65"
Weight 7500 LB
Equipped With:
4 Way Rapid Traverse on Carriage
Hard Ways
2 Speed Tailstock
Thread Dial
Taper Attachment
3 & 4 Jaw Chuck
Steady Rest
Follow Rest
Forced Lubrication
Cuts most American and Metric Threads without change gears.
Coolant System with Chip Guards
