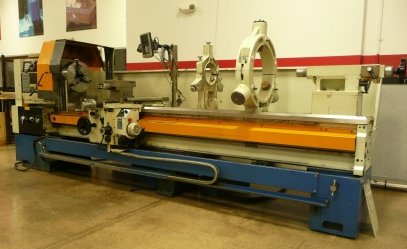

28" x 120" Summit Model 28-120B

28" x 120" Summit Model 28-120B
Precision Engine Lathe Manufacturer: Summit
Model#: 28-120B Engine Lathe
Age: 2006
Specification:
Max Swing Over Ways 28-1/2"
Max Swing Over Cross Slide 19-5/8"
Swing In Gap 36-1/2"
Max Center Distance 160"
Hole Thru Spindle 4-1/8"
Max Cross Slide Travel 15-1/4"
Spindle Speeds 20 - 1,250 RPM
Feed Rates Long: .00145-.44474,
Cross: .0007-.22237
Tailstock Quill Travel 9-1/2"
Drive Motor 15 HP
Equipped With:
Newall 2-Axis Digital Readout,
16" 3-Jaw Chuck, 24" 4-Jaw Chuck,
Tailstock, 24 Speed 12.5 - 1250 RPM Spindle,
4-Way Rapid Traverse, 8" Steady Rest,
16" Steady Rest, Inch/Metric Threading,
Taper Attachment, Follow Rest, Coolant Pump,
Chip Pan, Back Splash Shield, Manuals.
Electrics:
460 Volt / 3 Phase
Approximate Mach. Dimensions:180"lx60"wx75"h
Approximate Weight: 8300 lbs.
