TOS MODEL SN71C/4000 28 x 160

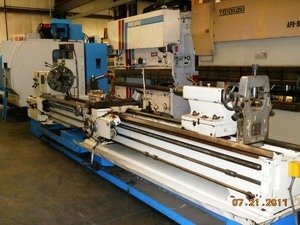

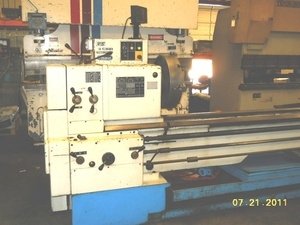

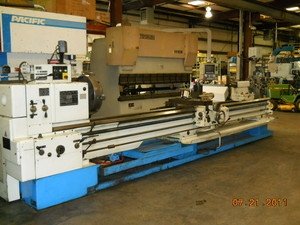

TOS/TRENCIN Model SN71C/4000 Universal Lathe, 28” x 160”, 10Hp, serial number 077149980178 inventory no. 4062



SPECIFICATIONS:

 Capacity:
 Swing Over Bed 28”
 Swing Over Cross Slide 16-1/2”
 Swing In Gap 37-1/2”
 Distance Between Centers 160”
 Width Of Bed 17-3/4”
 Width Of Gap In Front Of Faceplate 11-7/8”
 Headstock:
 Spindle Speed [16] 10 - 1,000 RPM
 Spindle Bore, Thru Hole 2-7/8”
 Spindle Nose Camlock D1-8
 Spindle Taper Morse 6”
 Threads And Feeds - Carriage And Compound:
 Number Of Cross & Longitudinal Feeds 38
 Longitudinal Feed Range .002 - .252 In/Rev
 Cross Feed Range .001 - .126 In/Rev
 Thread Range:
 38” Threads Tip 1-80
 29 Metric Threads .05 – 40 mm
 26 Module Threads .25 – 20 mm
 31 Diameter Pitch Threads 2 – 72 DP
 Leadscrew - Diameter x Pitch 1-7/8” x 1/4”
 Cross Slide Travel 16”
 Top Slide Travel 7”
 Tailstock:
 Spindle Diameter 3-1/2”
 Spindle Travel 9-1/2”
 Taper In Tailstock Barrel MT#5
 Tailstock Lateral Adjustment (Either Side) 3/8”
 Main Drive:
 Output Hp Of Main Drive Motor 10Hp
 Dimensions 238”L x 57”D x 60”H
 Weight 7880 lbs.


Equipped With

4 Jaw Chuck
SWI 2 axis Digital Read Out
Dorian type tool post
Live Center
(2) Steady Rest
Follow Rest
Coolant Pump & Tank
Taper Attachment

238x57x60"

7880
