31" x 138" TOS SU-80 Engine Lathe, 33.5" 4-Jaw Chuck, 21" Steady Rest, In/Met Threading, 4-Way Tool Post, 1957
http://www.agreenco.com/forsale.html
Specifications:

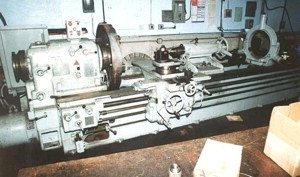

1-used 31" x 138" TOS Model SU-80 Engine Lathe, New 1957.
Specifications:
Swing over bed...................................... 31.5"
Swing up to 8.75" in front of chuck................... 35"
Swing over cross slide.............................. 19.5"
Distance between centers............................. 138"
Spindle nose....................................... L-Type
Spindle bore........................................ 2.75"
Spindle speeds............................ 6.7 - 1,000 rpm
English threads.............................. 7/8 - 48 tpi
Metric threads.............................. 0.219 - 48 mm
Motor................................... 13/23hp/3/60/220v
Dimensions............................ 238"L x 73"D x 56"H
Weight (approx.)............................... 16,000 lb.
Equipped with:
4 Way tool post
33-1/2" 4-Jaw chuck
21" Steady rest
Threading dial
English/Metric threading
Misc. threading change gears
