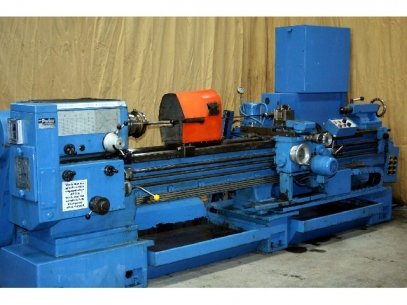

1.25" X 72" Gun Drilling VDF Model 21RO Engine Lathe

Approximate drilling capacity 3/8" - 1.25"
Approximate max. drilling depth 72"
Height of centers 210mm / 8.26"
Max. swing diameter above bed 430mm / 16.92"
Max. swing diameter above slide 235mm / 9.25"
Max. turning length 2500mm / 98"
Spindle bore, approximate 2.5"
Spindle speeds 19-2000 RPM
Longitudinal feeds 0.04 - 2.32mm/rev
Facing feeds 0.02 - 1.16mm/rev
Metric threads 0.25 - 112mm
Whitworth threads 108.25"
Module threads 0.125 - 28
Spindle drive (Flange motor) 10 HP, 3 Phase, 60 Cycle
Weight, approx. 4,000 lbs
