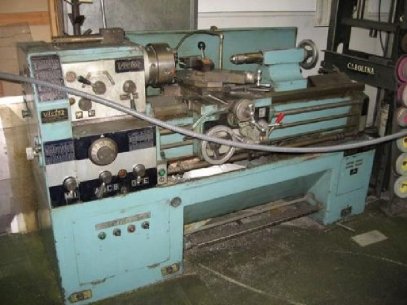

Victor Engine Lathe

Swing Over Bed 16"
Swing In Gap 23"
Swing Over Cross Slide 10"
Distance Between Centerrs 40"
Spindle Speeds (8) 65- 1,800 RPM
Spindle Nose D1- 6
Hole Thru Spindle 2"
Threads:
Inch (32) 4- 56 TPI
Metric (25) 0.25- 6 MM
Feeds (32) 0.0025"- 0.0455"
Cross Slide Travel 9 1/2"
Tailstock Quill Taper #4 MT
Tailstock Quill Travel 6"
Dimensions (L x W x H) 80" x 50" x 48"
Weight 3,500 Lbs.
